122 Series

Manufacturer: Serpac

Catalog

BOX ABS ALMOND 4.1"L X 2.6"W

Part	Weight [custom]	Weight [custom]	Area (L x W)	Area (L x W)	Material	Thickness	Thickness	Color	Ratings	Container Type	Features	Material Flammability Rating	Design	Height [z]	Height [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]

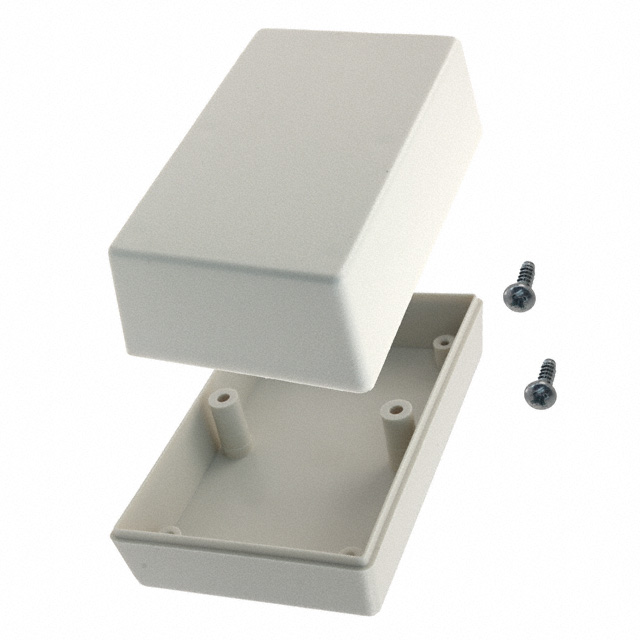

Serpac 122,AL	0.163 lb	73.94 g	69 cm²	10.7 in²	ABS Plastic	2.54 mm	0.1 in	Almond	IP40 NEMA 1	Box	PCB Supports	UL94 HB	Hand Held Split Sides	50.8 mm	2 in	2.6 in	104.14 mm	4.1 "	66.04 mm

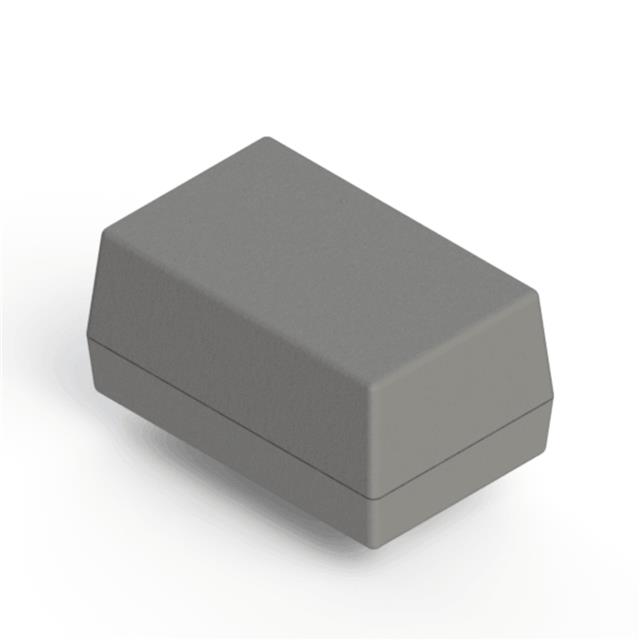

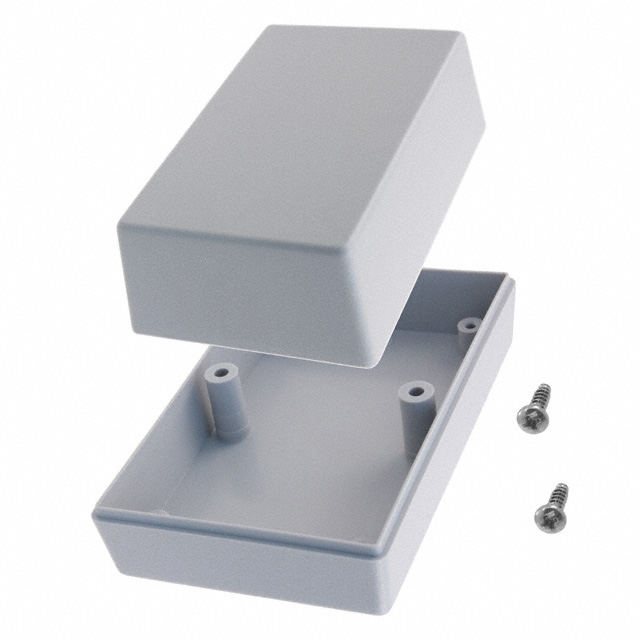

Serpac 122,GY	0.163 lb	73.94 g	69 cm²	10.7 in²	ABS Plastic	2.54 mm	0.1 in	Gray	IP40 NEMA 1	Box	PCB Supports	UL94 HB	Hand Held Split Sides	50.8 mm	2 in	2.6 in	104.14 mm	4.1 "	66.04 mm

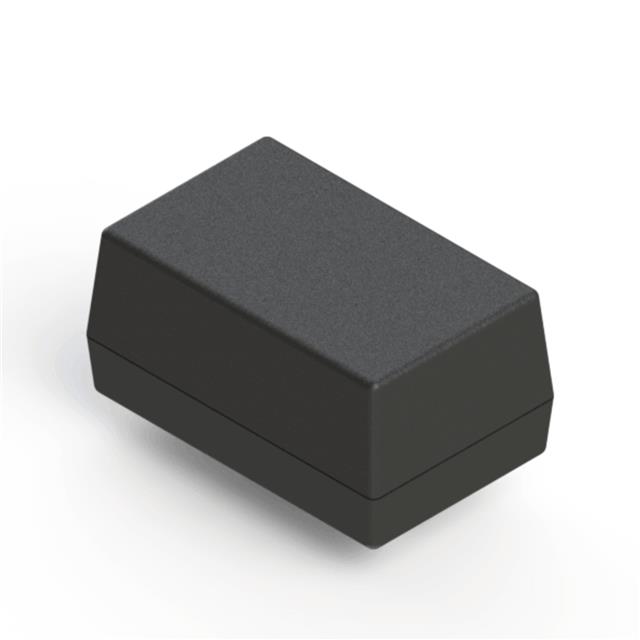

Serpac 122,BK	0.163 lb	73.94 g	69 cm²	10.7 in²	ABS Plastic	2.54 mm	0.1 in	Black	IP40 NEMA 1	Box	PCB Supports	UL94 HB	Hand Held Split Sides	50.8 mm	2 in	2.6 in	104.14 mm	4.1 "	66.04 mm
