8020.5021 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
FUSE CERM 10A 500VAC 400VDC 3AB
| Part | Melting I˛t | Operating Temperature [Max] | Operating Temperature [Min] | Fuse Type | Melting I²t | Mounting Type | Breaking Capacity @ Rated Voltage | Size / Dimension [diameter] | Size / Dimension [z] | Size / Dimension [diameter] | Size / Dimension [z] | Package / Case [y] | Package / Case | Package / Case [x] | Current Rating (Amps) | Response Time | Voltage Rating - AC | Voltage Rating - DC | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

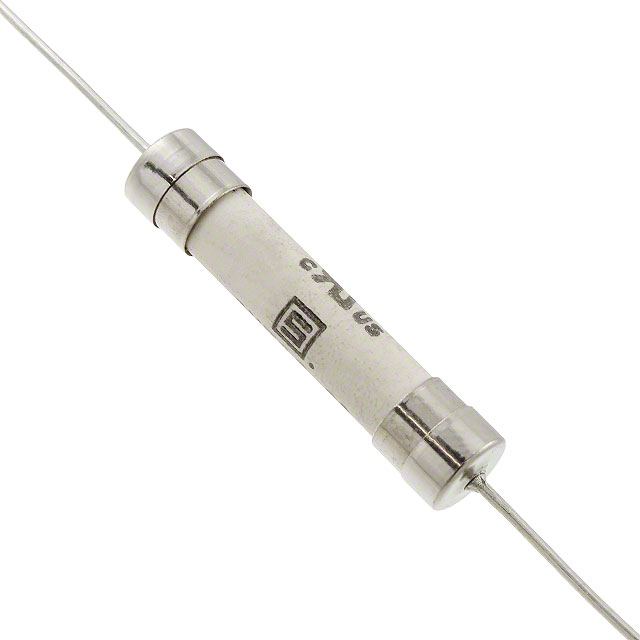

 SCHURTER Inc. | 700 | 85 °C | -40 C | Cartridge Ceramic | 700 | Through Hole | 1 kA 1.5 kA | 6.85 mm | 32.8 mm | 0.27 in | 1.291 in | 3AB 3AG | 0.25 " | 10 A | Slow Blow | 500 V | 400 V | ||||

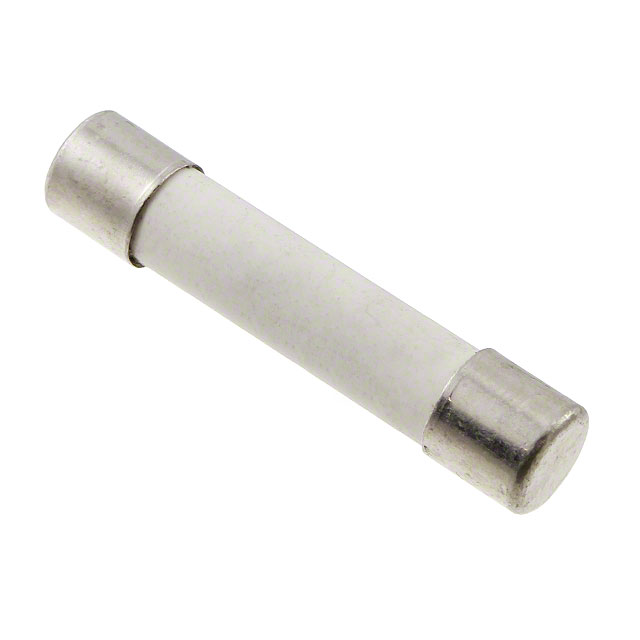

 SCHURTER Inc. | 700 | 85 °C | -40 C | Cartridge Ceramic | 700 | Requires Holder | 1 kA 1.5 kA | 6.35 mm | 3AB 3AG | 0.25 in | 10 A | Slow Blow | 500 V | 400 V | 31.8 mm | 1.252 " | 0.25 " |
