EAPL3527 Series

Manufacturer: Everlight Electronics Co Ltd

Catalog

LED BLUE CLEAR 2PLCC SMD

Part	Package / Case	Supplier Device Package	Color	Millicandela Rating	Current - Test	Lens Transparency	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Viewing Angle	Configuration	Height (Max) [z]	Wavelength - Dominant	Voltage - Forward (Vf) (Typ)	Wavelength - Peak	Lens Size [diameter]	Lens Color	Lens Style	Height (Max) [Max] [z]	Height (Max) [z]
Everlight Electronics Co Ltd EAPL3527BA1	2-LCC (J-Lead) 2-PLCC	2-PLCC	Blue	395 mcd	20 mA	Clear	2.8 mm	3.2 mm	Surface Mount	120 °	Standard	2.1 mm	471 nm	3.2 V	468 nm	2.4 mm Dia	Colorless	Round with Flat Top
Everlight Electronics Co Ltd EAPL3527YA0	2-SMD J-Lead	2-PLCC	Yellow	270 mcd	20 mA	Clear			Surface Mount	120 °	Standard		590 nm	2.05 V	591 nm	2.38 mm	Colorless	Round with Flat Top	1.65 mm
Everlight Electronics Co Ltd EAPL3527RA6	2-SMD J-Lead	2-PLCC	Red	79 mcd	20 mA	Clear			Surface Mount	120 °	Standard		638 nm	2.05 V	650 nm	2.38 mm	Colorless	Round with Flat Top	1.65 mm
Everlight Electronics Co Ltd EAPL3527GA1-AM	4-SMD J-Lead	3-PLCC	Green	98 mcd	50 mA	Clear	2.8 mm	3.5 mm	Surface Mount	120 °	Standard		564 nm	2.05 V	561 nm		Colorless	Round with Flat Top	1.65 mm

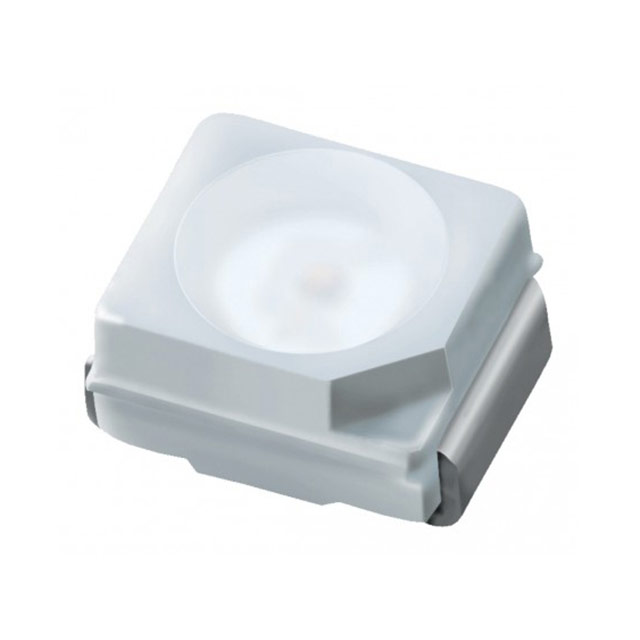

Everlight Electronics Co Ltd EAPL3527RA0	2-SMD J-Lead	2-PLCC	Red	99 mcd	20 mA	Clear			Surface Mount	120 °	Standard		626 nm	2.05 V	632 nm	2.38 mm	Colorless	Round with Flat Top	1.65 mm
Everlight Electronics Co Ltd EAPL3527OA0	4-SMD J-Lead	3-PLCC		1985 mcd	50 mA	Clear	2.7 mm	3.5 mm	Surface Mount	120 °	Standard		616 nm	2.4 V	621 nm		Colorless	Round with Flat Top		1.85 mm
Everlight Electronics Co Ltd EAPL3527RA2	2-SMD J-Lead	2-PLCC	Red	250 mcd	20 mA	Clear	2.7 mm	3.5 mm	Surface Mount	120 °	Standard		626 nm	2.05 V	632 nm	2.38 mm	Colorless	Round with Flat Top	1.65 mm
Everlight Electronics Co Ltd EAPL3527RA4	2-SMD J-Lead	2-PLCC	Red	630 mcd	20 mA	Clear			Surface Mount	120 °	Standard		626 nm	2.05 V	632 nm	2.38 mm	Colorless	Round with Flat Top	1.65 mm
Everlight Electronics Co Ltd EAPL3527WA2	2-SMD J-Lead	2-PLCC	White	785 mcd	20 mA				Surface Mount	120 °	Standard			3.4 V		2.4 mm Dia	Yellow	Round with Flat Top	1.65 mm
Everlight Electronics Co Ltd EAPL3527RA3	2-SMD J-Lead	2-PLCC	Red	373 mcd	20 mA	Clear			Surface Mount	120 °	Standard		632 nm	2.05 V	632 nm	2.38 mm	Colorless	Round with Flat Top	1.65 mm
