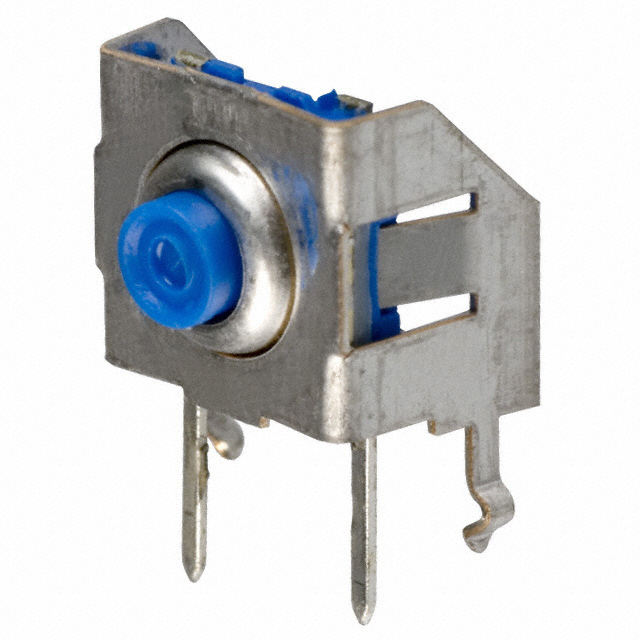

KSA0V4 Series
Manufacturer: Littelfuse/Commercial Vehicle Products
Beta
⌘K
SWITCH TACTILE OFF MOM SPST ROUND BUTTON PC PINS 0.01A 32VDC 0.2VA 100000CYCLES 3N BRACKET MOUNT/THROUGH HOLE BULK
| Part | Outline [x] | Outline [y] | Circuit | Actuator Length, Right Angle [x] | Operating Force | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Termination Style | Contact Rating @ Voltage | Illumination | Actuator Type | Switch Function | Ingress Protection | Actuator Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | 7.4 mm | 7.4 mm | SPST-NO | 3.23 mm | 300 gf | 125 °C | -40 °C | Through Hole Right Angle | PC Pin | 0.01 A 50 VDC | Non-Illuminated | Standard | Off-Mom | IP60 | Side Actuated |
 Littelfuse/Commercial Vehicle Products | 7.4 mm | 7.4 mm | SPST-NO | 3.23 mm | 300 gf | 90 °C | -40 °C | Through Hole Right Angle | PC Pin | 0.05 A | Non-Illuminated | Standard | Off-Mom | IP40 | Side Actuated |
