9BMB12 Series

Catalog

DC BLOWER CENTRIFUGAL BALL BEARING 12V 7V TO 13.8V 47.3CFM 61DB 97.1 X 96.5 X 33MM SENSOR

Part	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Material - Frame	Current Rating (Amps)	Lifetime @ Temp.	Width	RPM	Noise	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Features	Termination	Voltage - Rated	Size / Dimension [x]	Size / Dimension	Size / Dimension [y]	Static Pressure	Static Pressure	Air Flow	Air Flow	Fan Type	Approval Agency	Bearing Type	Weight	Weight
Sanyo Denki America Inc. 9BMB12G201	Plastic	13.8 VDC	7 V	Plastic	1.8 A	40000 Hrs	33 mm	5750 RPM	61 dB(A)	-20 ░C	70 °C	21.6 W	Locked Rotor Protection Speed Sensor (Tach)	3 Wire Leads	12 VDC	97.1 mm	Rectangular/Rounded	95 mm	760 Pa	3.052 in H2O	1.32 m³/min	47.3 CFM	Blower	cURus TUV	Ball	190.06 g	0.419 lb
Sanyo Denki America Inc. 9BMB12P2H01	Plastic	13.8 VDC	10.2 VDC	Plastic	1.1 A	40000 Hrs	33 mm	4850 RPM	57 dB	-20 ░C	70 °C	13.2 W	Locked Rotor Protection PWM Control Speed Sensor (Tach)	4 Wire Leads	12 VDC	97.1 mm	Rectangular/Rounded	95 mm	490 Pa	1.968 in H2O	1.1 m³/min	39.2 CFM	Blower	cURus TUV	Ball	190.06 g	0.419 lb
Sanyo Denki America Inc. 9BMB12H201	Plastic	13.8 VDC	7 V	Plastic	1.1 A	40000 Hrs	33 mm	4850 RPM	57 dB	-20 ░C	70 °C	13.2 W	Locked Rotor Protection Speed Sensor (Tach)	3 Wire Leads	12 VDC	97.1 mm	Rectangular/Rounded	95 mm	490 Pa	1.968 in H2O	1.1 m³/min	39.2 CFM	Blower	cURus TUV	Ball	190.06 g	0.419 lb

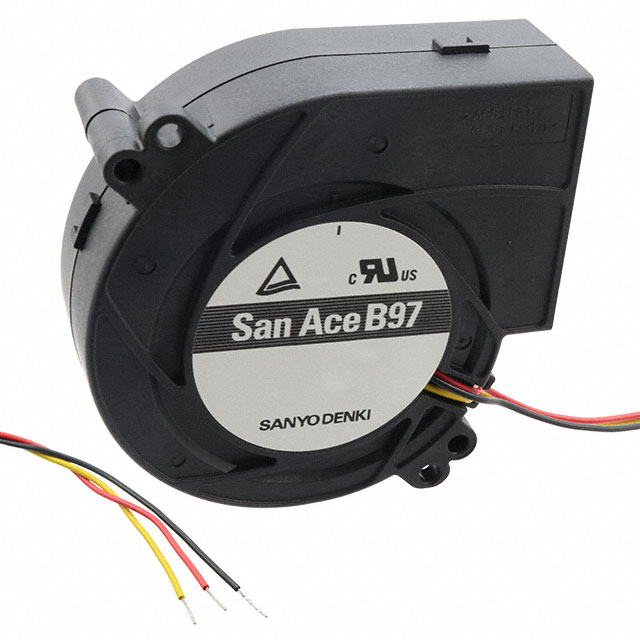

Sanyo Denki America Inc. 9BMB12K201	Plastic	13.2 VDC	7 V	Plastic	3.4 A	40000 Hrs	33 mm	6850 RPM		-20 ░C	70 °C	40.8 W	Locked Rotor Protection Speed Sensor (Tach)	3 Wire Leads	12 VDC	97.1 mm	Rectangular/Rounded	95 mm	1280 Pa	5.14 in H2O	1.59 mł/min	56.8 CFM	Blower	cURus TUV	Ball	190.06 g	0.419 lb

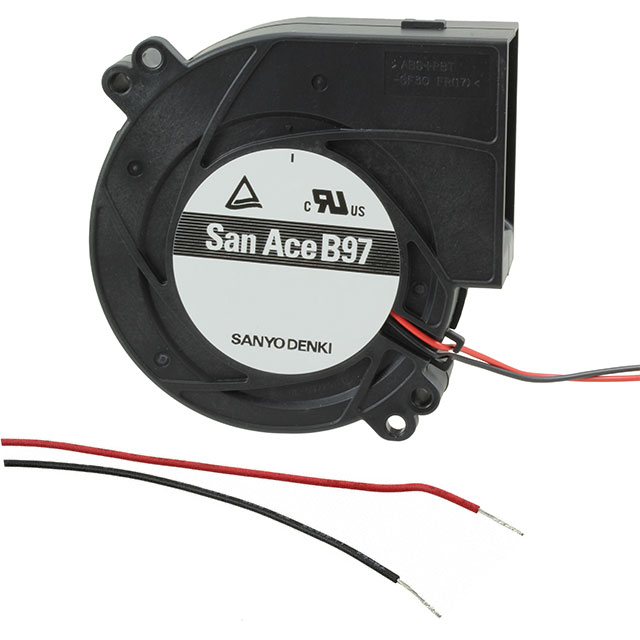

Sanyo Denki America Inc. 9BMB12H202	Plastic	13.8 VDC	7 V	Plastic	1.1 A	40000 Hrs	33 mm	4850 RPM	57 dB	-20 ░C	70 °C	13.2 W		2 Wire Leads	12 VDC	97.1 mm	Rectangular/Rounded	95 mm	490 Pa	1.968 in H2O	1.1 m³/min	39.2 CFM	Blower	cURus TUV	Ball	190.06 g	0.419 lb
