IHLP-11 Series

Catalog

FIXED IND 220NH 21A 3.9 MOHM SMD

Part	Type	Package / Case	DC Resistance (DCR) (Max)	Height - Seated (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Size / Dimension Width	Size / Dimension Length	Tolerance	Current Rating	Mounting Type	Shielding	Inductance Frequency - Test	Inductance	Frequency - Self Resonant	Current - Saturation (Isat)	Package Name

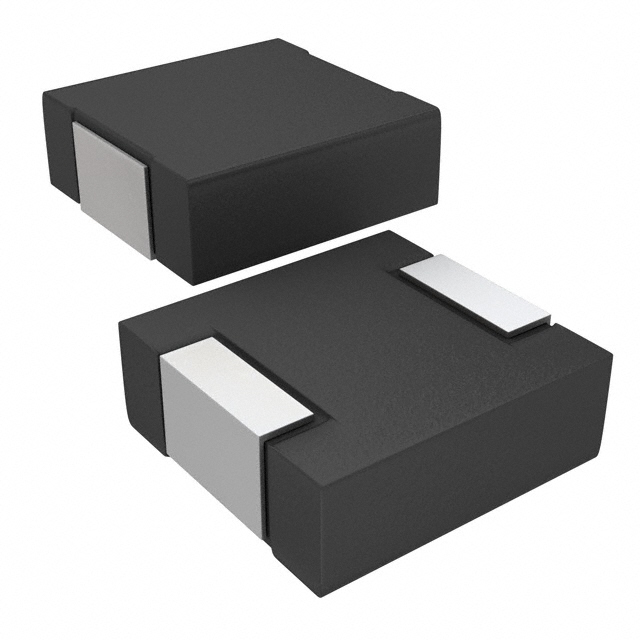

Vishay Dale IHLP2020CZERR22M11	Molded	Nonstandard	3.9 mOhm	0.118 in	125 °C	-55 °C	0.204 in	0.216 in	20 %	21 A	Surface Mount	Shielded	100 kHz	220 nH	146 MHz	14.5 A
Vishay Dale IHLP3232CZER6R8M11	Molded	Nonstandard	37.8 mOhm	0.118 in	125 °C	-55 °C	0.322 in	0.34 in	20 %	6.5 A	Surface Mount	Shielded	100 kHz	6.8 µH	17 MHz	5 A
Vishay Dale IHLP2020BZER2R2M11	Molded	Nonstandard	37.7 mOhm	0.079 in	125 °C	-55 °C	0.204 in	0.216 in	20 %	5 A	Surface Mount	Shielded	100 kHz	2.2 µH	41 MHz	5.5 A

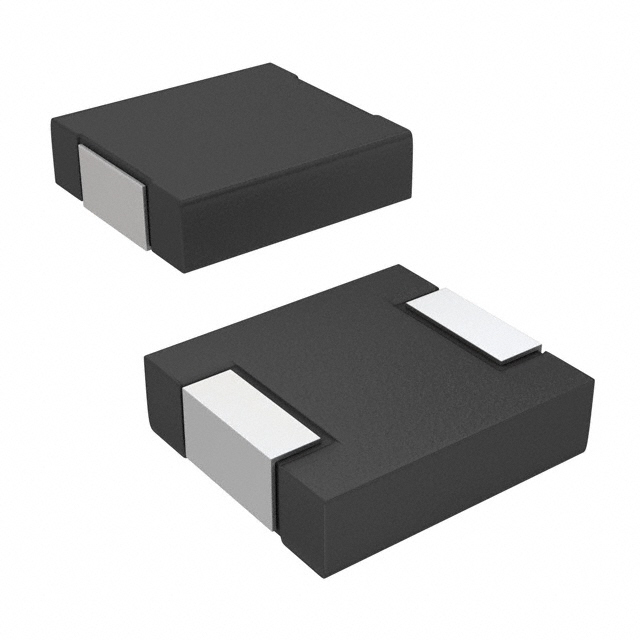

Vishay Dale IHLP1616ABER1R2M11	Molded	Nonstandard	58.5 mOhm	0.047 in	125 °C	-55 °C	0.16 in	0.175 in	20 %	3.75 A	Surface Mount	Shielded	100 kHz	1.2 µH	62 MHz	3.75 A
Vishay Dale IHLP1616BZERR47M11	Molded	Nonstandard	16 mOhm	0.079 in	125 °C	-55 °C	0.16 in	0.175 in	20 %	7 A	Surface Mount	Shielded	100 kHz	470 nH	97 MHz	7 A
Vishay Dale IHLP4040DZER470M11	Molded	Nonstandard	145 mOhm	0.157 in	125 °C	-55 °C	0.4 in	0.425 in	20 %	3.3 A	Surface Mount	Shielded	100 kHz	47 µH		3 A	4040
Vishay Dale IHLP2020CZER3R3M11	Molded	Nonstandard	40.4 mOhm	0.118 in	125 °C	-55 °C	0.204 in	0.216 in	20 %	5.5 A	Surface Mount	Shielded	100 kHz	3.3 µH	29 MHz	7 A
