725-029 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 29POS 0.100

Part	Termination Rows	Material - Insulation	Contact Material	Read Out	Card Type	Termination	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Bay/Row	Color	Number of Rows	Contact Finish	Card Thickness [Max]	Card Thickness [Min]	Pitch	Pitch	Mounting Type	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions
EDAC Inc. 725-029-541-101	1	Polyester Thermoplastic	Copper Alloy	Single	Non Specified - Single Edge	Press-Fit Wire Wrap	Female	-40 C	105 ░C	29	Black	1	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Through Hole	Cantilever	30 Áin	0.76 Ám	29
EDAC Inc. 725-029-525-101	1	Polyester Thermoplastic	Copper Alloy	Single	Non Specified - Single Edge	Press-Fit	Female	-40 C	105 ░C	29	Black	1	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Through Hole	Cantilever	30 Áin	0.76 Ám	29
EDAC Inc. 725-029-520-101	1	Polyester Thermoplastic	Copper Alloy	Single	Non Specified - Single Edge	Press-Fit	Female	-40 C	105 ░C	29	Black	1	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Through Hole	Cantilever	30 Áin	0.76 Ám	29

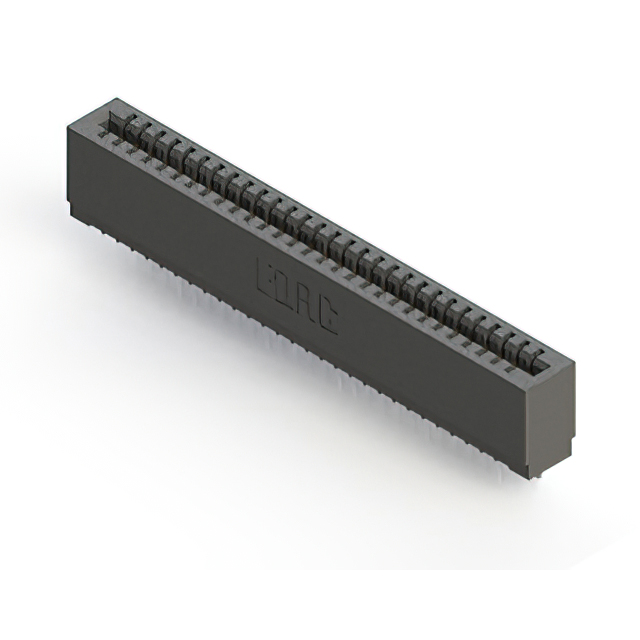

EDAC Inc. 725-029-522-101	1	Polyester Thermoplastic	Copper Alloy	Single	Non Specified - Single Edge	Press-Fit	Female	-40 C	105 ░C	29	Black	1	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Through Hole	Cantilever	30 Áin	0.76 Ám	29
EDAC Inc. 725-029-545-101	1	Polyester Thermoplastic	Copper Alloy	Single	Non Specified - Single Edge	Press-Fit Wire Wrap	Female	-40 C	105 ░C	29	Black	1	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Through Hole	Cantilever	30 Áin	0.76 Ám	29

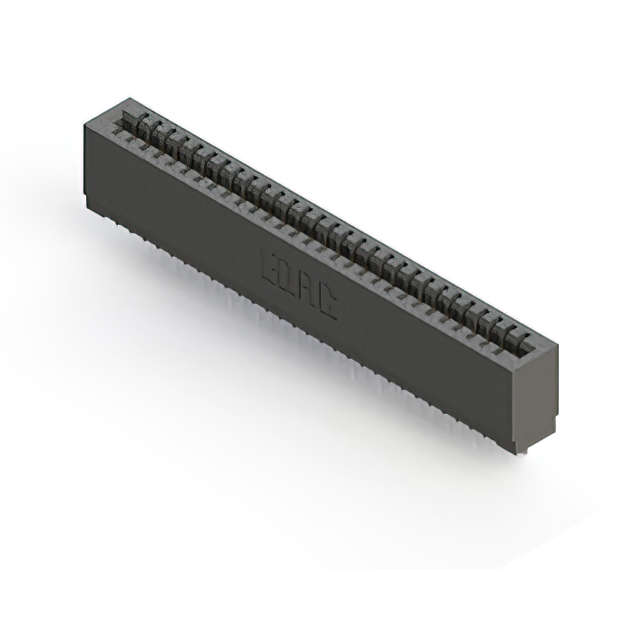

EDAC Inc. 725-029-540-101	1	Polyester Thermoplastic	Copper Alloy	Single	Non Specified - Single Edge	Press-Fit Wire Wrap	Female	-40 C	105 ░C	29	Black	1	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Through Hole	Cantilever	30 Áin	0.76 Ám	29
