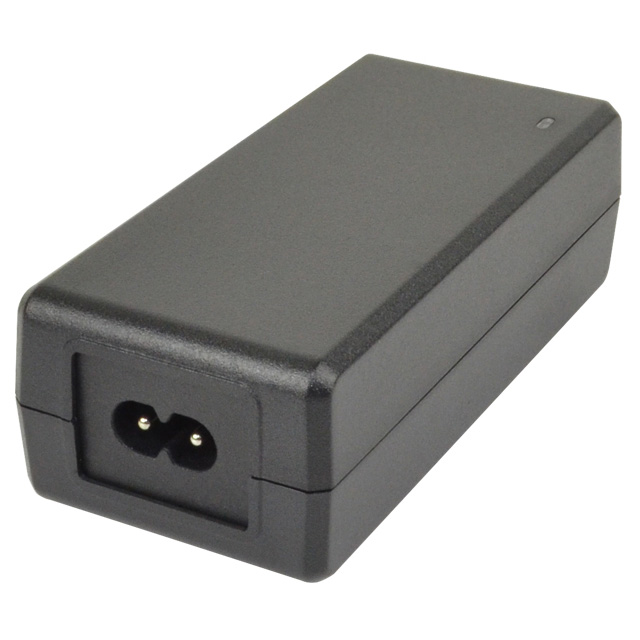

SDI50 Series

Desktop AC Adapters 24V 2.1A 2.1 rt cn + 50W C8 EU cord VI

Manufacturer: CUI Inc.

Catalog

Desktop AC Adapters 24V 2.1A 2.1 rt cn + 50W C8 EU cord VI

Catalog

Desktop AC Adapters 24V 2.1A 2.1 rt cn + 50W C8 EU cord VI

...

Part	Current - Output (Max)	Input Type	Voltage - Input [Max]	Voltage - Input [Min]	Standard Number	Output Connector	Output Connector [diameter]	Output Connector [x]	No Load Power Consumption	Power (Watts)	Form	Voltage - Output	Input Connector	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Polarization	Approval Agency	Region Utilized	Efficiency	Cord Length	Cord Length	Applications	Current - Output (Max) [Max]	Output Connector [custom]	Output Connector [custom]	Output Connector [custom]	Weight	Weight
CUI Inc. SDI50-9-U2-P5	5 A	Cord	264 VAC	90 VAC	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	100 mW	45 W	Desktop (Class I)	9 V	IEC 320-C14	115 mm	2.09 "	1.5 in	53 mm	38 mm	4.53 "	40 °C	0 °C	Positive Center	CB Scheme CCC CSA EN FCC IEC PSE RCM UL	Europe	CoC Tier 2 Level VI	1.5 m	59 in	ITE (Commercial)
CUI Inc. SDI50-9-UD2-P6R	5 A	Cord	264 VAC	90 VAC	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Barrel Plug	2.5 mm 5.5 mm	9.5 mm	100 mW	45 W	Desktop (Class II)	9 V	IEC 320-C8	115 mm	2.09 "	1.5 in	53 mm	38 mm	4.53 "	40 °C	0 °C	Positive Center	CB Scheme CSA EN FCC IEC PSE UL	Europe	CoC Tier 2 Level VI	1.5 m	59 in	ITE (Commercial)
CUI Inc. SDI50-15-UD2-P6R		Cord	264 VAC	90 VAC	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Barrel Plug	2.5 mm 5.5 mm	9.5 mm	150 mW	50 W	Desktop (Class II)	15 V	IEC 320-C8	115 mm	2.09 "	1.5 in	53 mm	38 mm	4.53 "	40 °C	0 °C	Positive Center	CB Scheme CSA EN FCC IEC PSE UL	Europe	CoC Tier 2 Level VI	1.5 m	59 in	ITE (Commercial)	3.34 A
CUI Inc. SDI50-9-UC-P5R	5 A	Cord	264 VAC	90 VAC	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	100 mW	45 W	Desktop (Class I)	9 V	IEC 320-C14	115 mm	2.09 "	1.5 in	53 mm	38 mm	4.53 "	40 °C	0 °C	Positive Center	CB Scheme CCC CSA EN FCC IEC PSE RCM UL	North America	CoC Tier 2 Level VI	1.5 m	59 in	ITE (Commercial)
CUI Inc. SDI50-12-UD-P5R		Cord (Sold Separately)	264 VAC	90 VAC	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Barrel Plug R/A			150 mW	50 W	Desktop (Class II)	12 V	IEC 320-C8	115 mm	2.09 "	1.5 in	53 mm	38 mm	4.53 "	40 °C	0 °C	Positive Center	CB Scheme CSA EN FCC IEC PSE UL	International	CoC Tier 2 Level VI	1.5 m	59 in	ITE (Commercial)	4.2 A	9.5 mm	5.5 mm	2.1 mm	310.26 g	0.684 lb
CUI Inc. SDI50-15-UC-P5R		Cord	264 VAC	90 VAC	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	150 mW	50 W	Desktop (Class I)	15 V	IEC 320-C14	115 mm	2.09 "	1.5 in	53 mm	38 mm	4.53 "	40 °C	0 °C	Positive Center	CB Scheme CCC CSA EN FCC IEC PSE RCM UL	North America	CoC Tier 2 Level VI	1.5 m	59 in	ITE (Commercial)	3.34 A
CUI Inc. SDI50-24-U2-P5R		Cord	264 VAC	90 VAC	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	150 mW	50 W	Desktop (Class I)	24 V	IEC 320-C14	115 mm	2.09 "	1.5 in	53 mm	38 mm	4.53 "	40 °C	0 °C	Positive Center	CB Scheme CCC CSA EN FCC IEC PSE RCM UL	Europe	CoC Tier 2 Level VI	1.5 m	59 in	ITE (Commercial)	2.1 A
CUI Inc. SDI50-15-U-P5R		Cord (Sold Separately)	264 VAC	90 VAC	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Barrel Plug R/A			150 mW	50 W	Desktop (Class I)	15 V	IEC 320-C14	115 mm	2.09 "	1.5 in	53 mm	38 mm	4.53 "	40 °C	0 °C	Positive Center	CB Scheme CCC CSA EN FCC IEC PSE RCM UL	International	CoC Tier 2 Level VI	1.83 m	72 in	ITE (Commercial)	3.34 A	9.5 mm	5.5 mm	2.1 mm	310.26 g	0.684 lb
CUI Inc. SDI50-24-UC-P6		Cord	264 VAC	90 VAC	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Barrel Plug	2.5 mm 5.5 mm	9.5 mm	150 mW	50 W	Desktop (Class I)	24 V	IEC 320-C14	115 mm	2.09 "	1.5 in	53 mm	38 mm	4.53 "	40 °C	0 °C	Positive Center	CB Scheme CCC CSA EN FCC IEC PSE RCM UL	North America	CoC Tier 2 Level VI	1.5 m	59 in	ITE (Commercial)	2.1 A				310.26 g	0.684 lb
CUI Inc. SDI50-12-UD2-P6R		Cord	264 VAC	90 VAC	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Barrel Plug	2.5 mm 5.5 mm	9.5 mm	150 mW	50 W	Desktop (Class II)	12 V	IEC 320-C8	115 mm	2.09 "	1.5 in	53 mm	38 mm	4.53 "	40 °C	0 °C	Positive Center	CB Scheme CSA EN FCC IEC PSE UL	Europe	CoC Tier 2 Level VI	1.5 m	59 in	ITE (Commercial)	4.2 A
