2271457 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

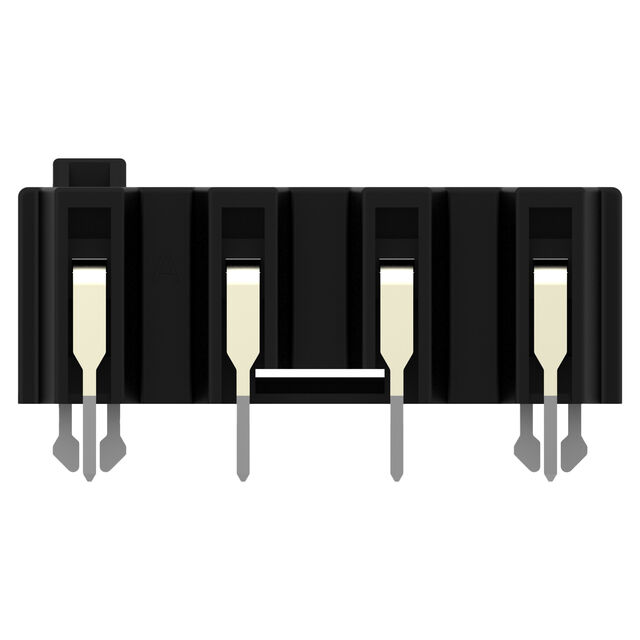

HEADER ASSEMBLY D3950 4P X
| Part | Contact Type | Number of Rows | Contact Material | Mounting Type | Contact Length - Post [x] | Contact Length - Post [x] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Shape | Termination | Shrouding | Insulation Color | Connector Type | Number of Positions | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Number of Positions Loaded | Style | Fastening Type | Voltage Rating | Insulation Material | Applications | Contact Finish - Post | Contact Finish - Mating | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Male Pin | 1 | Copper Alloy | Through Hole Right Angle | 0.15 in | 3.81 mm | -30 ░C | 105 ░C | Rectangular | Solder | Shrouded - 4 Wall | Black | Header | 4 | 7.5 mm | 0.295 in | 0.472 in | 12 mm | All | Board to Cable/Wire | Push-Pull | 300 VAC | |||||
 TE Connectivity Raychem Cable Protection | Tab | 1 | Copper Alloy | Through Hole Right Angle | -30 ░C | 105 ░C | Rectangular | Solder | Shrouded - 4 Wall | Plug | 6 | 7.5 mm | 0.295 in | 0.472 in | 12 mm | All | Board to Cable/Wire | Latch Holder | 600 VAC | Thermoplastic | General Purpose | Tin | Gold | UL94 V-0 |
