3296P Series

Catalog

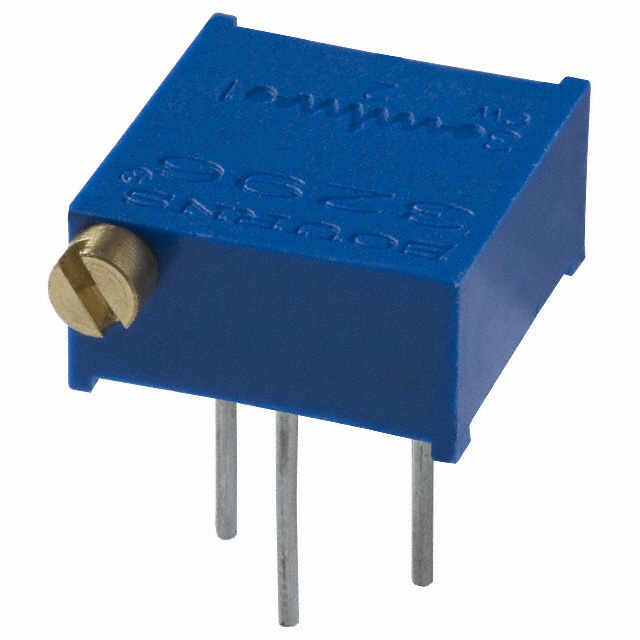

TRIMMER 200KOHM 0.5W PC PIN SIDE

Part	Temperature Coefficient	Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Resistance	Resistive Material	Adjustment Type	Mounting Type	Number of Turns	Power (Watts)	Power (Watts)	Termination Style
Bourns Inc. 3296P-1-204LF	100 ppm/°C	10 %	9.53 mm	4.83 mm	0.19 in	0.375 in	200000 Ohms	Cermet	Side Adjustment	Through Hole	25	0.5 W	0.5 W	PC Pins
Bourns Inc. 3296P-1-100	100 ppm/°C	10 %	9.53 mm	4.83 mm	0.19 in	0.375 in	10 Ohms	Cermet	Side Adjustment	Through Hole	25	0.5 W	0.5 W	PC Pins
Bourns Inc. 3296P-1-502	100 ppm/°C	10 %	9.53 mm	4.83 mm	0.19 in	0.375 in	5 kOhms	Cermet	Side Adjustment	Through Hole	25	0.5 W	0.5 W	PC Pins
Bourns Inc. 3296P-1-203LF	100 ppm/°C	10 %	9.53 mm	4.83 mm	0.19 in	0.375 in	20 kOhms	Cermet	Side Adjustment	Through Hole	25	0.5 W	0.5 W	PC Pins
Bourns Inc. 3296P-1-202LF	100 ppm/°C	10 %	9.53 mm	4.83 mm	0.19 in	0.375 in	2 kOhms	Cermet	Side Adjustment	Through Hole	25	0.5 W	0.5 W	PC Pins
Bourns Inc. 3296P-1-101	100 ppm/°C	10 %	9.53 mm	4.83 mm	0.19 in	0.375 in	100 Ohms	Cermet	Side Adjustment	Through Hole	25	0.5 W	0.5 W	PC Pins
Bourns Inc. 3296P-1-105	100 ppm/°C	10 %	9.53 mm	4.83 mm	0.19 in	0.375 in	1 MOhms	Cermet	Side Adjustment	Through Hole	25	0.5 W	0.5 W	PC Pins
Bourns Inc. 3296P-1-102LF	100 ppm/°C	10 %	9.53 mm	4.83 mm	0.19 in	0.375 in	1000 Ohms	Cermet	Side Adjustment	Through Hole	25	0.5 W	0.5 W	PC Pins
Bourns Inc. 3296P-1-103	100 ppm/°C	10 %	9.53 mm	4.83 mm	0.19 in	0.375 in	10000 Ohms	Cermet	Side Adjustment	Through Hole	25	0.5 W	0.5 W	PC Pins
Bourns Inc. 3296P-1-201	100 ppm/°C	10 %	9.53 mm	4.83 mm	0.19 in	0.375 in	200 Ohms	Cermet	Side Adjustment	Through Hole	25	0.5 W	0.5 W	PC Pins
