R19142 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
BNC FEMALE - N MALE STRAIGHT ADA
| Part | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Center Contact Material | Body Material | Impedance | Fastening Type | Fastening Type | Frequency - Max [Max] | Style | Mounting Type | Center Contact Plating | Adapter Type | Adapter Series | Convert To (Adapter End) | Convert From (Adapter End) | Conversion Type | Mounting Feature | Center Gender | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

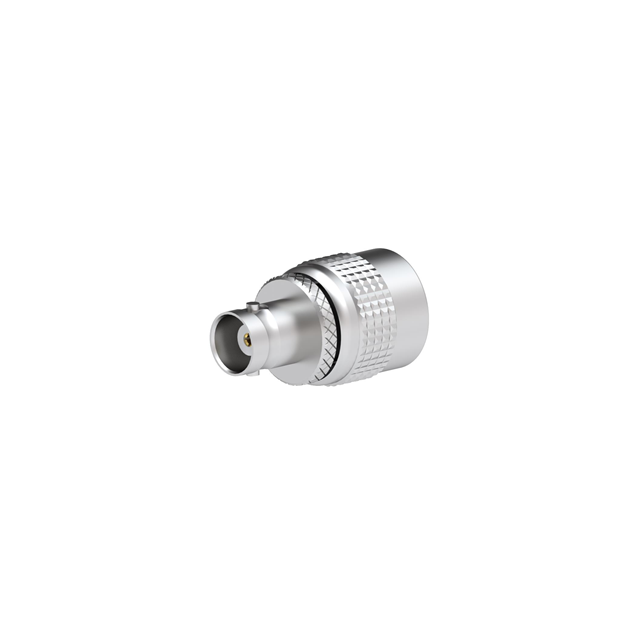

 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | -65 ░C | 125 °C | Nickel | Beryllium Copper | Brass | 50 Ohms | Threaded | Bayonet Lock | 4 GHz | Straight | Free Hanging (In-Line) | Gold | Plug to Jack | BNC to N | N Plug Male Pin | BNC Jack Female Socket | Between Series | |||

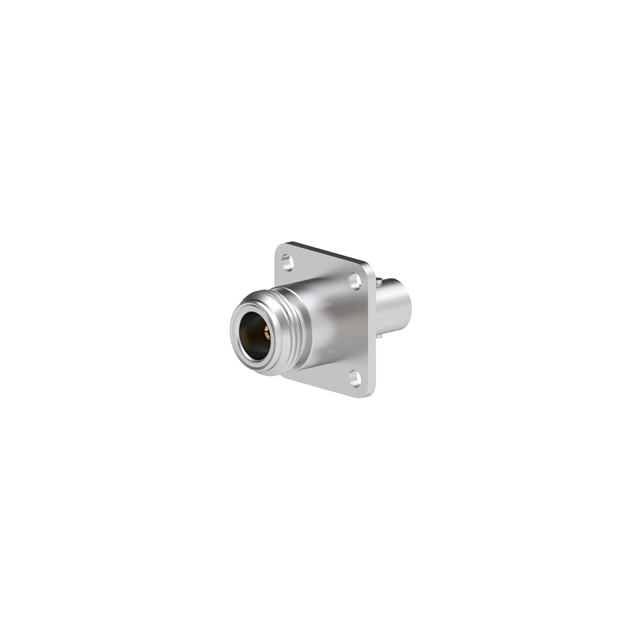

 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Nickel | Beryllium Copper | Brass | 50 Ohms | Threaded | Bayonet Lock | 4 GHz | Straight | Panel Mount | Gold | Jack to Jack | BNC to N | N Jack Female Socket | BNC Jack Female Socket | Between Series | Flange | Female to Female | |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | -55 C | 125 °C | Nickel | Beryllium Copper | Brass | 50 Ohms | Bayonet Lock | 4 GHz | Straight | Free Hanging (In-Line) | Jack to Jack | BNC to C | C Jack Male Pin | BNC Jack Female Socket | Between Series | 500 |
