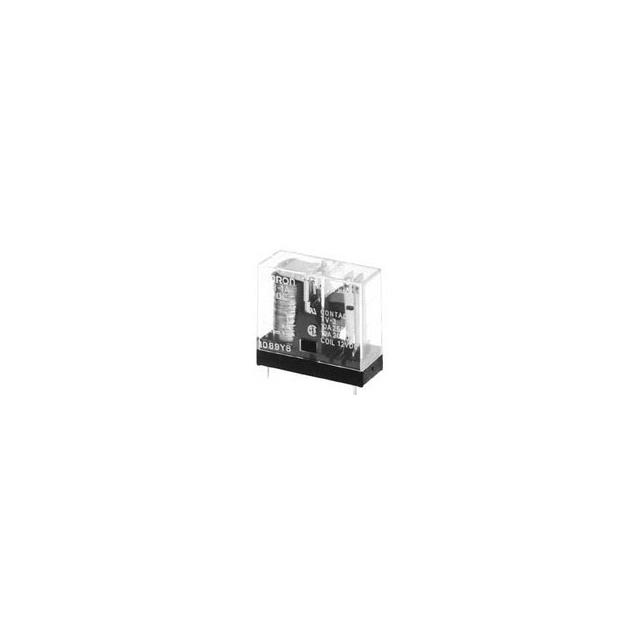

G2RK-1 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
G2RK-1-DC6
| Part | Contact Form | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Contact Rating (Current) | Operate Time | Contact Material | Switching Voltage | Relay Type | Seal Rating | Mounting Type | Coil Type | Must Operate Voltage | Coil Current | Coil Resistance | Release Time | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div | SPDT (1 Form C) | -40 °C | 70 °C | PC Pin | 5 A | 20 ms | Silver Alloy | 125 VDC 380 VAC | General Purpose | Sealed - Flux Protection | Through Hole | Latching Dual Coil | 4.2 VDC | 138 mA | 43.5 Ohms | 20 ms | |
 Omron Electronics Inc-EMC Div | SPDT (1 Form C) | -40 °C | 70 °C | PC Pin | 5 A | 15 ms | Cadmium Free Silver Alloy | 125 VDC 380 VAC | General Purpose | Sealed - Flux Protection | Through Hole | Latching Dual Coil | 3.5 VDC | 167 mA | 30 Ohms | 5 ms | 5 VDC |
