WP154 Series

Catalog

LED TRI-COLOR BLUE/GREEN/RED 460NM/515NM/645NM 4-PIN T-1 3/4 BAG

Part	Lens Style	Size / Dimension [diameter]	Height (Max) [Max] [z]	Configuration	Color	Mounting Type	Supplier Device Package	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Current - Test	Voltage - Forward (Vf) (Typ)	Lens Transparency	Lens Size	Lens Size	Viewing Angle	Package / Case	Wavelength - Peak	Lens Color	Wavelength - Dominant	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Dominant	Millicandela Rating	Current - Test

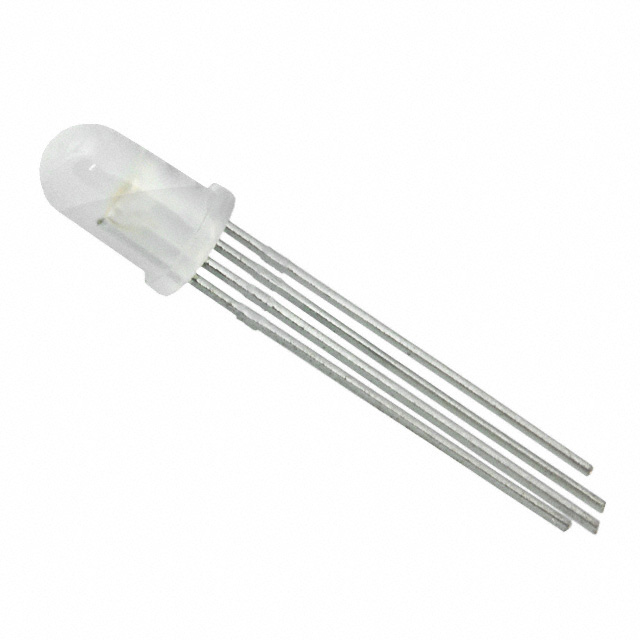

Kingbright WP154A4SUREQBFZGW	Round with Domed Top	5 mm	8.6 mm	Common Cathode	Blue Green Red	Through Hole	T-1 3/4	500 mcd	1300 mcd	250 mcd	20mA Blue 20mA Green 20mA Red	1.9 V 3.3 V 3.3 V	Diffused	5 mm	T-1 3/4	60 °	Radial - 4 Leads	460 nm 515 nm 640 nm	White	465 nm 525 nm 630 nm

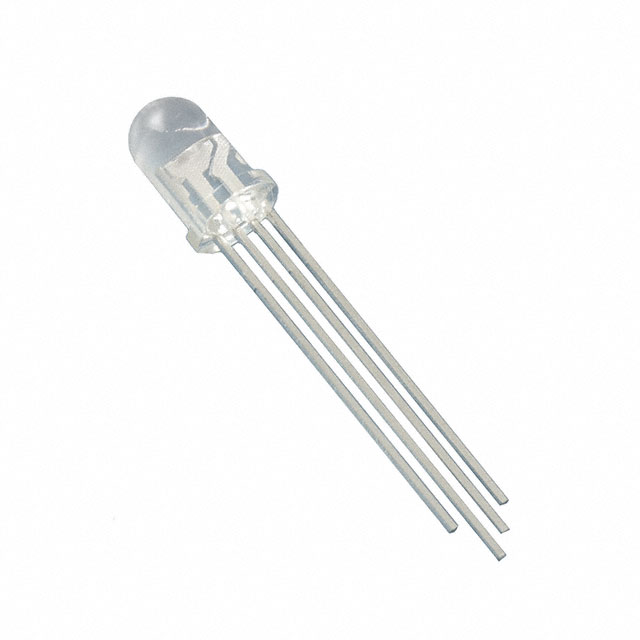

Kingbright WP154A4SUREQBFZGC	Round with Domed Top	5 mm	8.6 mm	Common Cathode	Blue Green Red	Through Hole	T-1 3/4	900 mcd	1700 mcd	400 mcd	20mA Blue 20mA Green 20mA Red	1.9 V 3.3 V 3.3 V	Clear	5 mm	T-1 3/4	50 °	Radial - 4 Leads		Colorless	465 nm 525 nm 630 nm	645 nm	515 nm	460 nm

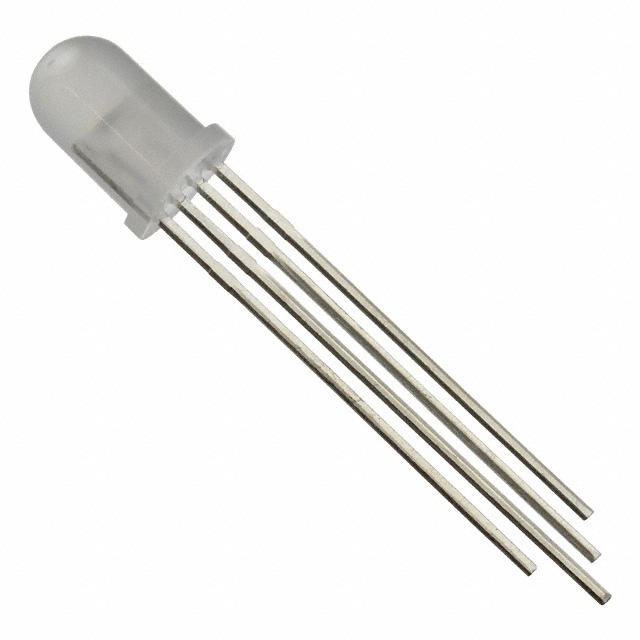

Kingbright WP154A4SEJ3VBDZGW/CA	Round with Domed Top	5 mm	9.6 mm	Common Anode	Blue Green Red	Through Hole	T-1 3/4 (5mm)					2.2 V 3.3 V 3.3 V	Diffused	5 mm	T-1 3/4	60 °	Radial	465 nm 515 nm 640 nm	White					470nm Blue 525nm Green 625nm Red	400 mcd 1100 mcd 1100 mcd	20 mA
Kingbright WP154A4QBESEGZGC/CA	Round with Domed Top	5 mm	8.6 mm	Common Anode	Blue Green Orange	Through Hole	T-1 3/4					1.9 V 3.3 V 3.3 V	Clear	5 mm	T-1 3/4	50 °	Radial - 4 Leads	468 nm 515 nm 630 nm	Colorless	470 nm 525 nm 625 nm					150 mcd 950 mcd 2000 mcd	20 mA 20 mA 20 mA

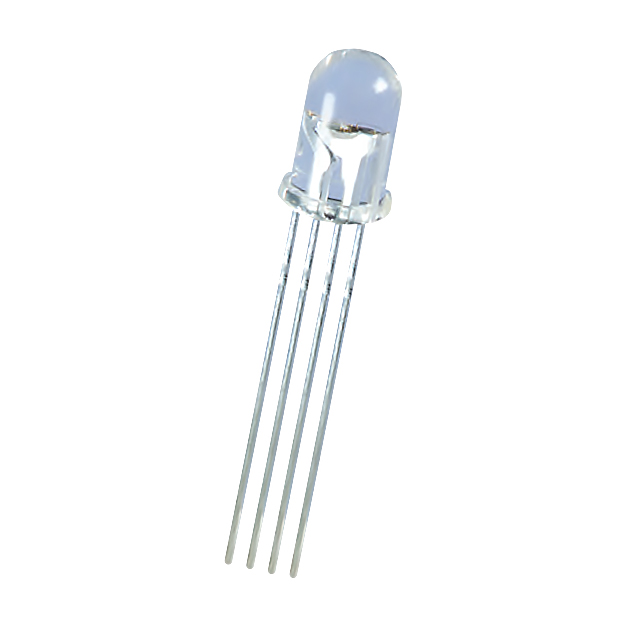

Kingbright WP154A4SEJ3VBDZGC/CA	Round with Domed Top	5 mm	8.85 mm	Common Anode	Blue Green Red	Through Hole	T-1 3/4 (5mm)	1800 mcd	2000 mcd	2600 mcd	20mA Blue 20mA Green 20mA Red	2.2 V 3.3 V 3.3 V	Clear	5 mm	T-1 3/4	50 °	Radial - 4 Leads	465 nm 515 nm 640 nm	Colorless					470nm Blue 525nm Green 625nm Red
