0995-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

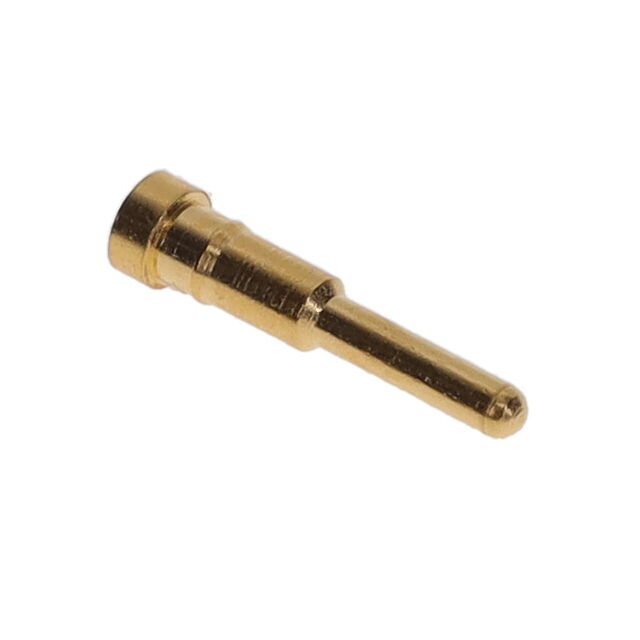

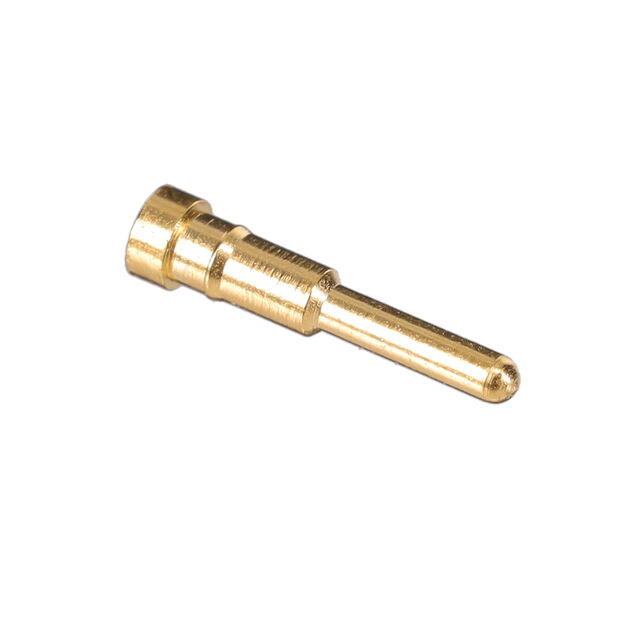

CONN PC PIN CIRC 0.036DIA GOLD
| Part | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Termination | Contact Material | Length - Above Flange [x] | Length - Above Flange [x] | Length - Overall | Length - Overall | Terminal Type | Contact Finish | Insulation | Mounting Type | Terminal Style | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.072 " | 1.83 mm | 50 µin | 1.27 µm | Press-Fit | Brass Alloy | 0.281 in | 7.14 mm | 7.95 mm | 0.313 in | PC Pin | Gold | Non-Insulated | Through Hole | Single End | 1.45 mm | 0.057 in |
 Mill-Max Manufacturing Corp. | 0.072 " | 1.83 mm | 20 µin | 0.51 µm | Press-Fit | Brass Alloy | 0.281 in | 7.14 mm | 7.95 mm | 0.313 in | PC Pin | Gold | Non-Insulated | Through Hole | Single End | 1.45 mm | 0.057 in |
