395-128 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FML 128POS 0.100

...

Part	Material - Insulation	Termination Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Color	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Number of Positions/Bay/Row	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Termination	Features	Gender	Flange Feature	Contact Type	Mounting Type	Read Out	Contact Material	Pitch	Pitch	Number of Positions	Flange Feature [diameter]	Flange Feature [diameter]

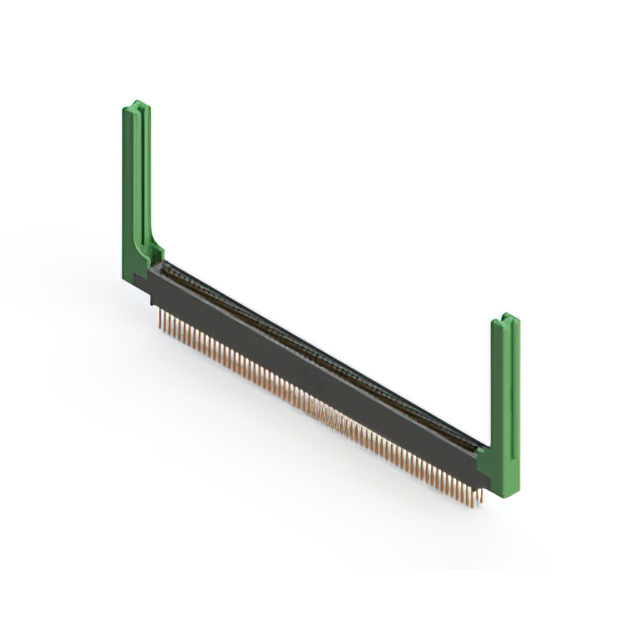

EDAC Inc. 395-128-542-858	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Gold	-40 C	105 ░C	Non Specified - Dual Edge	64	0.25 Ám	10 Áin	2	Wire Wrap	Card Guides	Female	4-40 Threaded Insert Top Mount Opening	Cantilever	Through Hole	Dual	Copper Alloy	0.1 "	2.54 mm	128

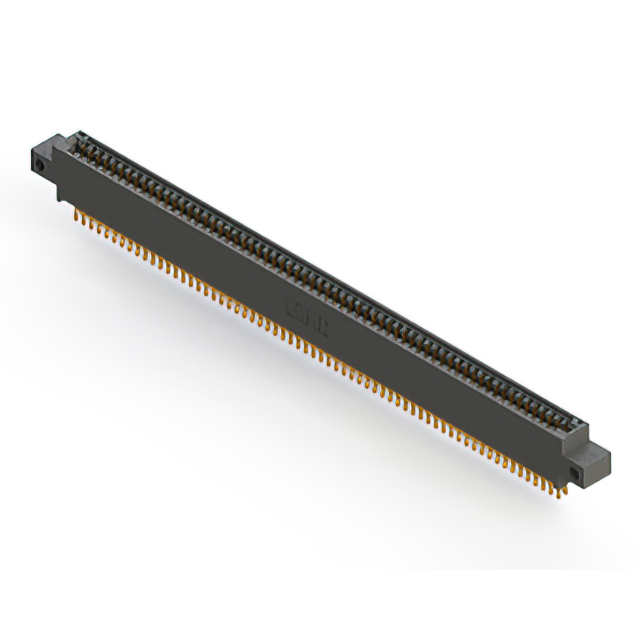

EDAC Inc. 395-128-555-812	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Gold	-40 C	105 ░C	Non Specified - Dual Edge	64	0.25 Ám	10 Áin	2	Solder Eyelet(s)	Card Extender	Female	Side Mount Opening Unthreaded	Cantilever	Board Edge Straddle Mount	Dual	Copper Alloy	0.1 "	2.54 mm	128	0.128 "	3.25 mm

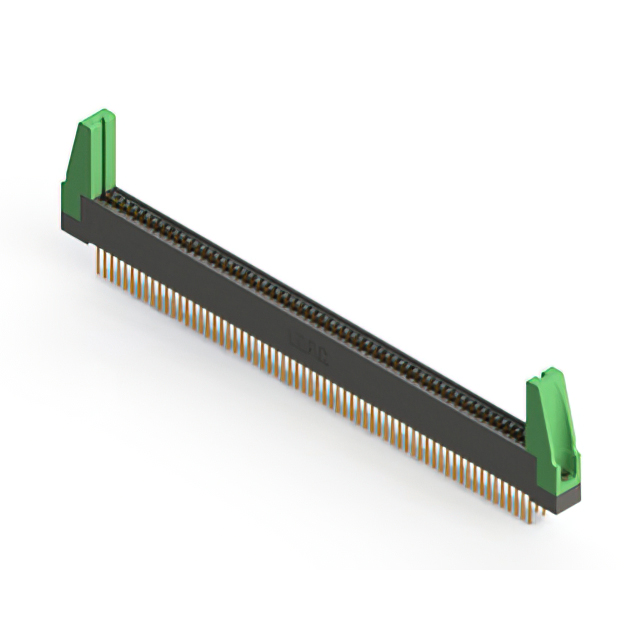

EDAC Inc. 395-128-523-288	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Gold	-40 C	105 ░C	Non Specified - Dual Edge	64	0.25 Ám	10 Áin	2	Solder	Card Guides	Female	4-40 Flush Mount Threaded Insert Top Opening	Cantilever	Through Hole	Dual	Copper Alloy	0.1 "	2.54 mm	128
EDAC Inc. 395-128-542-807	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Gold	-40 C	105 ░C	Non Specified - Dual Edge	64	0.25 Ám	10 Áin	2	Wire Wrap		Female	M3 Threaded Insert Top Mount Opening	Cantilever	Through Hole	Dual	Copper Alloy	0.1 "	2.54 mm	128
EDAC Inc. 395-128-544-803	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Gold	-40 C	105 ░C	Non Specified - Dual Edge	64	0.25 Ám	10 Áin	2	Wire Wrap		Female	Floating Bobbin Top Mount Opening	Cantilever	Through Hole	Dual	Copper Alloy	0.1 "	2.54 mm	128	0.116 "	2.95 mm

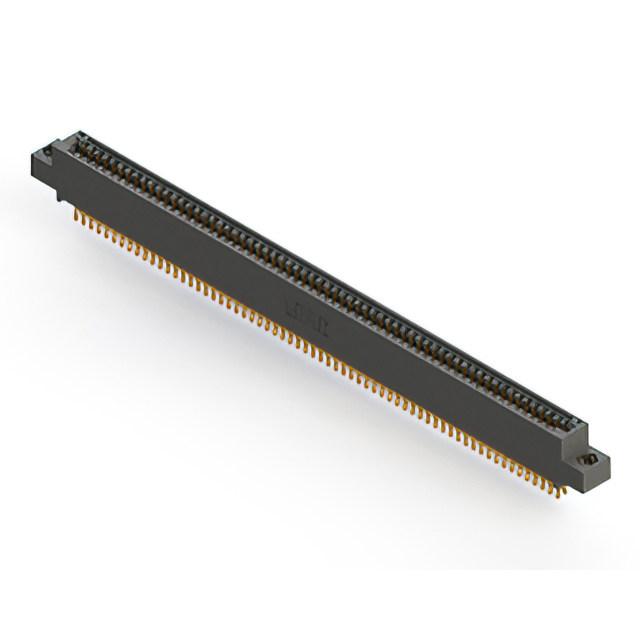

EDAC Inc. 395-128-555-508	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Gold	-40 C	105 ░C	Non Specified - Dual Edge	64	0.25 Ám	10 Áin	2	Solder Eyelet(s)	Card Extender	Female	4-40 Threaded Insert Top Mount Opening	Cantilever	Board Edge Straddle Mount	Dual	Copper Alloy	0.1 "	2.54 mm	128

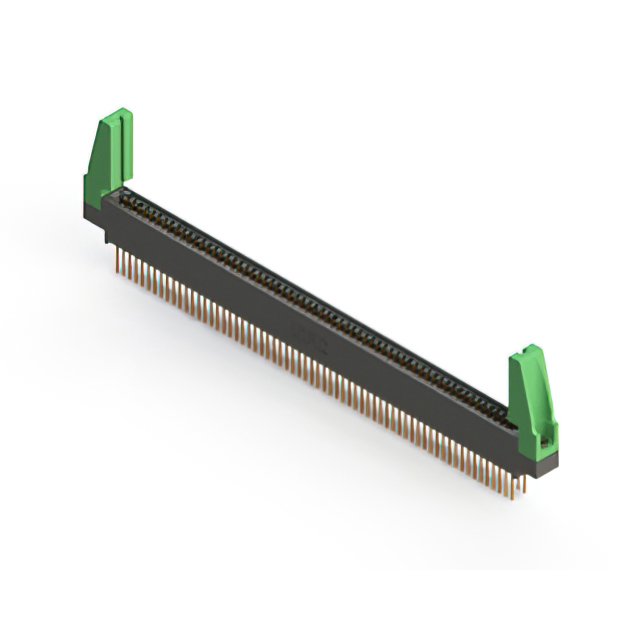

EDAC Inc. 395-128-541-888	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Gold	-40 C	105 ░C	Non Specified - Dual Edge	64	0.25 Ám	10 Áin	2	Wire Wrap	Card Guides	Female	4-40 Threaded Insert Top Mount Opening	Cantilever	Through Hole	Dual	Copper Alloy	0.1 "	2.54 mm	128
EDAC Inc. 395-128-523-803	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Gold	-40 C	105 ░C	Non Specified - Dual Edge	64	0.25 Ám	10 Áin	2	Solder		Female	Floating Bobbin Top Mount Opening	Cantilever	Through Hole	Dual	Copper Alloy	0.1 "	2.54 mm	128	0.116 "	2.95 mm

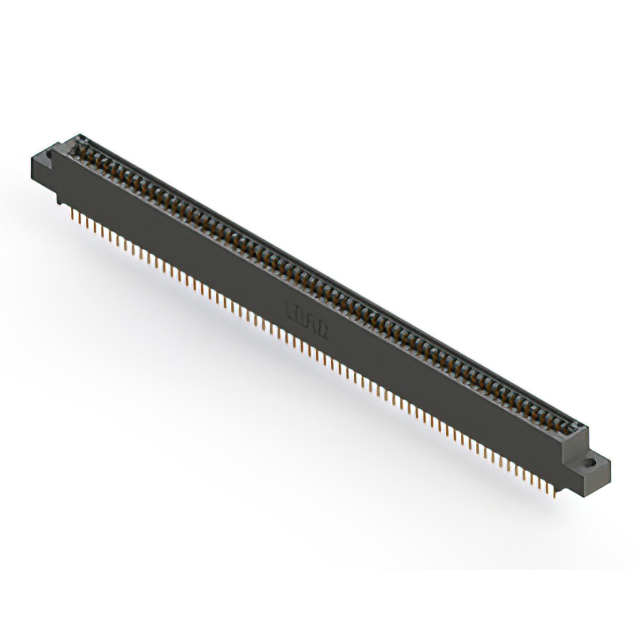

EDAC Inc. 395-128-524-504	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Gold	-40 C	105 ░C	Non Specified - Dual Edge	64	0.25 Ám	10 Áin	2	Solder		Female		Cantilever	Through Hole	Dual	Copper Alloy	0.1 "	2.54 mm	128	0.156 "	3.96 mm

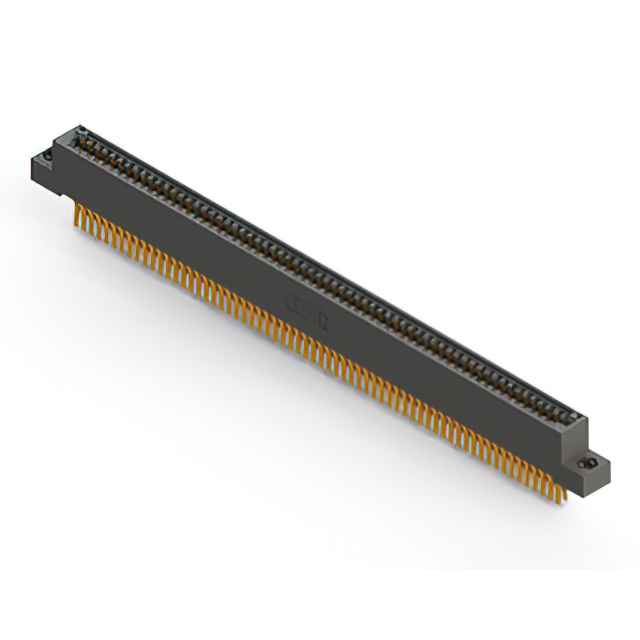

EDAC Inc. 395-128-560-208	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Gold	-40 C	105 ░C	Non Specified - Dual Edge	64	0.25 Ám	10 Áin	2	Solder	Card Extender	Female	4-40 Flush Mount Threaded Insert Top Opening	Cantilever	Board Edge Straddle Mount	Dual	Copper Alloy	0.1 "	2.54 mm	128
