851-13 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN RCPT 6POS 0.05 GOLD PCB

Part	Insulation Material	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Contact Finish - Mating	Contact Finish - Post	Fastening Type	Number of Rows	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Type	Number of Positions	Pitch - Mating	Pitch - Mating	Connector Type	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Mounting Type	Termination	Number of Positions

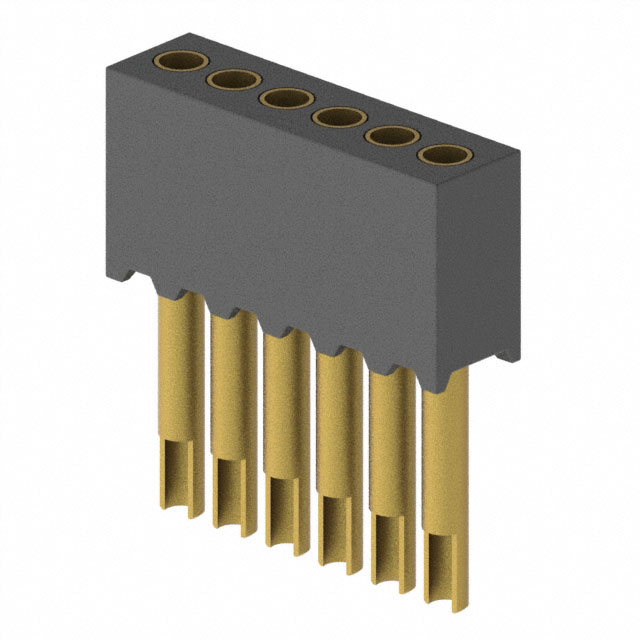

Mill-Max Manufacturing Corp. 851-13-006-10-003000	Thermoplastic	Beryllium Copper	10 Áin	0.25 çm	Circular	Gold	Gold	Push-Pull	1	3 A	0.76 Ám	30 Áin	-55 C	125 °C	Black	All	4.05 mm	0.159 in	Female Socket	6	1.27 mm	0.05 in	Receptacle	4.6 mm	0.181 in	UL94 V-0	Through Hole
Mill-Max Manufacturing Corp. 851-13-049-40-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	10 Áin	0.25 çm	Circular	Gold	Gold	Push-Pull	1	3 A	0.76 Ám	30 Áin	-55 C	125 °C	Black	All	2.2 mm	0.087 "	Female Socket	49	1.27 mm	0.05 in	Receptacle			UL94 V-0	Right Angle Surface Mount	Solder
Mill-Max Manufacturing Corp. 851-13-038-40-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	10 Áin	0.25 çm	Circular	Gold	Gold	Push-Pull	1	3 A	0.76 Ám	30 Áin	-55 C	125 °C	Black	All	2.2 mm	0.087 "	Female Socket	38	1.27 mm	0.05 in	Receptacle			UL94 V-0	Right Angle Surface Mount	Solder

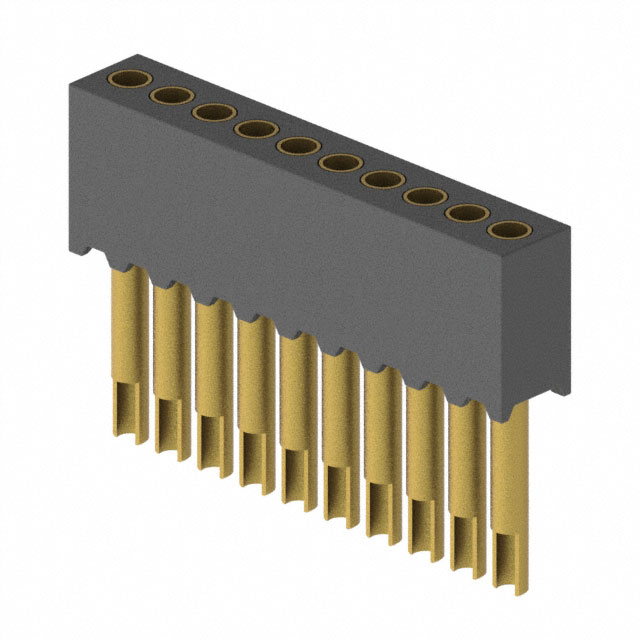

Mill-Max Manufacturing Corp. 851-13-010-10-003000	Thermoplastic	Beryllium Copper	10 Áin	0.25 çm	Circular	Gold	Gold	Push-Pull	1	3 A	0.76 Ám	30 Áin	-55 C	125 °C	Black	All	4.05 mm	0.159 in	Female Socket	10	1.27 mm	0.05 in	Receptacle	4.6 mm	0.181 in	UL94 V-0	Through Hole
Mill-Max Manufacturing Corp. 851-13-039-40-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	10 Áin	0.25 çm	Circular	Gold	Gold	Push-Pull	1	3 A	0.76 Ám	30 Áin	-55 C	125 °C	Black	All	2.2 mm	0.087 "	Female Socket	39	1.27 mm	0.05 in	Receptacle			UL94 V-0	Right Angle Surface Mount	Solder
Mill-Max Manufacturing Corp. 851-13-044-10-003000	Glass Filled Nylon 4/6 Polyamide (PA46)	Beryllium Copper	10 Áin	0.25 çm	Circular	Gold	Gold	Push-Pull	1	3 A	0.076 µm	3 µin	-55 C	125 °C	Black	All	4.05 mm	0.159 in	Female Socket	44	1.27 mm	0.05 in	Socket	4.6 mm	0.181 in	UL94 V-0	Through Hole
Mill-Max Manufacturing Corp. 851-13-028-40-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	10 Áin	0.25 çm	Circular	Gold	Gold	Push-Pull	1	3 A	0.76 Ám	30 Áin	-55 C	125 °C	Black	All	2.2 mm	0.087 "	Female Socket	28	1.27 mm	0.05 in	Receptacle			UL94 V-0	Right Angle Surface Mount	Solder
Mill-Max Manufacturing Corp. 851-13-047-40-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	10 Áin	0.25 çm	Circular	Gold	Gold	Push-Pull	1	3 A	0.76 Ám	30 Áin	-55 C	125 °C	Black	All	2.2 mm	0.087 "	Female Socket		1.27 mm	0.05 in	Receptacle			UL94 V-0	Right Angle Surface Mount	Solder	47
Mill-Max Manufacturing Corp. 851-13-029-10-003000	Glass Filled Nylon 4/6 Polyamide (PA46)	Beryllium Copper	10 Áin	0.25 çm	Circular	Gold	Gold	Push-Pull	1	3 A	0.076 µm	3 µin	-55 C	125 °C	Black	All	4.05 mm	0.159 in	Female Socket	29	1.27 mm	0.05 in	Socket	4.6 mm	0.181 in	UL94 V-0	Through Hole
Mill-Max Manufacturing Corp. 851-13-035-40-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	10 Áin	0.25 çm	Circular	Gold	Gold	Push-Pull	1	3 A	0.76 Ám	30 Áin	-55 C	125 °C	Black	All	2.2 mm	0.087 "	Female Socket	35	1.27 mm	0.05 in	Receptacle			UL94 V-0	Right Angle Surface Mount	Solder
