SG732B Series

Manufacturer: KOA Speer Electronics, Inc.

Catalog

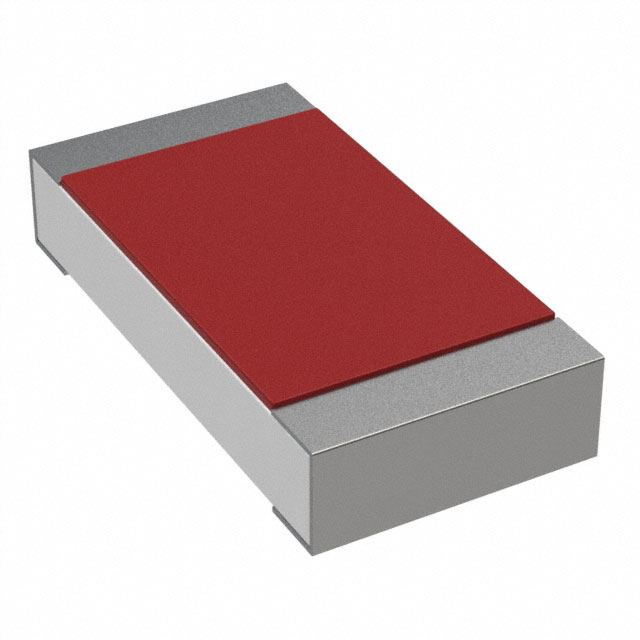

RES 5.6K OHM 20% 1/3W 1206

Part	Power (Watts)	Power (Watts)	Temperature Coefficient	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Number of Terminations [custom]	Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Ratings	Tolerance	Composition	Package / Case
KOA Speer Electronics, Inc. SG732BTTD562M	0.3333333333333333 W	0.333 W	200 ppm/°C	0.7 mm	0.028 "	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	0.063 "	0.126 "	3.2 mm	1.6 mm	2	5.6 kOhms	155 C	-55 C	1206	AEC-Q200	20 %	Thick Film	1206 (3216 Metric)
KOA Speer Electronics, Inc. SG732BTTD820M	0.3333333333333333 W	0.333 W	200 ppm/°C	0.7 mm	0.028 "	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	0.063 "	0.126 "	3.2 mm	1.6 mm	2	82 Ohms	155 C	-55 C	1206	AEC-Q200	20 %	Thick Film	1206 (3216 Metric)
KOA Speer Electronics, Inc. SG732BTTD151M	0.3333333333333333 W	0.333 W	200 ppm/°C	0.7 mm	0.028 "	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	0.063 "	0.126 "	3.2 mm	1.6 mm	2	150 Ohms	155 C	-55 C	1206	AEC-Q200	20 %	Thick Film	1206 (3216 Metric)
KOA Speer Electronics, Inc. SG732BTTD333M	0.3333333333333333 W	0.333 W	200 ppm/°C	0.7 mm	0.028 "	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	0.063 "	0.126 "	3.2 mm	1.6 mm	2	33000 Ohms	155 C	-55 C	1206	AEC-Q200	20 %	Thick Film	1206 (3216 Metric)
KOA Speer Electronics, Inc. SG732BTTD564M	0.3333333333333333 W	0.333 W	200 ppm/°C	0.7 mm	0.028 "	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	0.063 "	0.126 "	3.2 mm	1.6 mm	2	560 kOhms	155 C	-55 C	1206	AEC-Q200	20 %	Thick Film	1206 (3216 Metric)
KOA Speer Electronics, Inc. SG732BTTD332K	0.3333333333333333 W	0.333 W	200 ppm/°C	0.7 mm	0.028 "	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	0.063 "	0.126 "	3.2 mm	1.6 mm	2	3300 Ohms	155 C	-55 C	1206	AEC-Q200	10 %	Thick Film	1206 (3216 Metric)
KOA Speer Electronics, Inc. SG732BTTD562K	0.3333333333333333 W	0.333 W	200 ppm/°C	0.7 mm	0.028 "	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	0.063 "	0.126 "	3.2 mm	1.6 mm	2	5.6 kOhms	155 C	-55 C	1206	AEC-Q200	10 %	Thick Film	1206 (3216 Metric)
KOA Speer Electronics, Inc. SG732BTTD474M	0.3333333333333333 W	0.333 W	200 ppm/°C	0.7 mm	0.028 "	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	0.063 "	0.126 "	3.2 mm	1.6 mm	2	470 kOhms	155 C	-55 C	1206	AEC-Q200	20 %	Thick Film	1206 (3216 Metric)
KOA Speer Electronics, Inc. SG732BTTD824K	0.3333333333333333 W	0.333 W	200 ppm/°C	0.7 mm	0.028 "	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	0.063 "	0.126 "	3.2 mm	1.6 mm	2	820 kOhms	155 C	-55 C	1206	AEC-Q200	10 %	Thick Film	1206 (3216 Metric)
KOA Speer Electronics, Inc. SG732BTTD473K	0.3333333333333333 W	0.333 W	200 ppm/°C	0.7 mm	0.028 "	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	0.063 "	0.126 "	3.2 mm	1.6 mm	2	47000 Ohms	155 C	-55 C	1206	AEC-Q200	10 %	Thick Film	1206 (3216 Metric)
