DAC39RF10 Series

16-bit, 2-channel, 20.48-GSPS 12-GHz RF digital-to-analog converter

Catalog

16-bit, 2-channel, 20.48-GSPS 12-GHz RF digital-to-analog converter

Part	INL/DNL (LSB)	Number of Bits	Reference Type	Architecture	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Mounting Type	Output Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Data Interface	Supplier Device Package	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	Sampling Rate (Per Second)	Number of DAC's	Utilized IC / Part	Supplied Contents
Texas Instruments DAC39RF10ACL	2.2 LSB 9 LSB	16	Internal	Current Source	1.05 V	0.95 V	Surface Mount	Current - Unbuffered	256-BBGA FCBGA	85 °C	-40 °C	JESD204B	256-FCBGA (17x17)	1.89 V	1.71 V

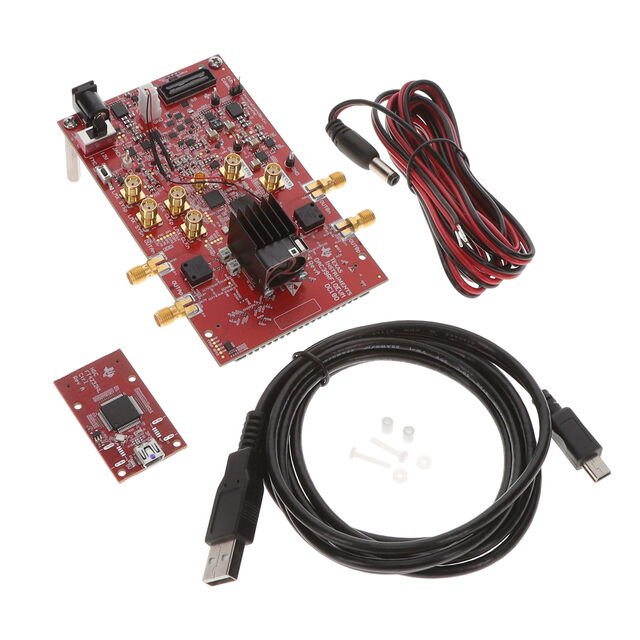

Texas Instruments DAC39RF10EVM		16										JESD204B JESD204C				20.48 G	2	DAC39RF10	Board(s)
Texas Instruments DAC39RF10ACK	2.2 LSB 9 LSB	16	Internal	Current Source	1.05 V	0.95 V	Surface Mount	Current - Unbuffered	256-BBGA FCBGA	85 °C	-40 °C	JESD204B	256-FCBGA (17x17)	1.05 V 1.89 V	0.95 V 1.71 V

Catalog

16-bit, 2-channel, 20.48-GSPS 12-GHz RF digital-to-analog converter

Key Features

• 16-bit, 10.24/20.48GSPS, Multi-Nyquist DAC coreMaximum input data rate:8-bit, Single channel, DES mode: 20.48GSPS12-bit, Single channel, DES mode: 15.5GSPS16-bit, Single channel: 10.24GSPS8-bit, Dual channel, 10.24GSPS12-bit, Dual channel: 7.75GSPS/ch16-bit, Dual channel: 6.2GSPS/chOutput bandwidth (-3dB): 12GHzPerformance at fOUT = 2.997GHz, DES2XL mode, DEM/Dither offNoise floor (small signal): –155dBFS/HzSFDR (-0.1 dBFS) : 60dBcIMD3 (-7 dBFS each tone) : –62dBcAdditive phase noise, 10kHz offset: -138dBc/HzFour integrated digital up-converters (DUC)Interpolation: 1x, 2x, 3x, 4x, 6x, 8x ... 256xComplex baseband DUC for I/Q outputComplex to real upconversion for dual channel direct RF sampling64-bit frequency resolution NCOsFast reconfiguration interface for fast frequency hopping4-bit data with 200MHz clock60ns reconfiguration (32-bit frequency)Any frequency hopping with phase coherenceJESD204C InterfaceUp to 16 Lanes at up to 12.8GbpsClass C-S, Subclass-1 compatibleInternal AC coupling capacitorsSYSREF Windowing for automatic SYSREF timing calibration16-bit, 10.24/20.48GSPS, Multi-Nyquist DAC coreMaximum input data rate:8-bit, Single channel, DES mode: 20.48GSPS12-bit, Single channel, DES mode: 15.5GSPS16-bit, Single channel: 10.24GSPS8-bit, Dual channel, 10.24GSPS12-bit, Dual channel: 7.75GSPS/ch16-bit, Dual channel: 6.2GSPS/chOutput bandwidth (-3dB): 12GHzPerformance at fOUT = 2.997GHz, DES2XL mode, DEM/Dither offNoise floor (small signal): –155dBFS/HzSFDR (-0.1 dBFS) : 60dBcIMD3 (-7 dBFS each tone) : –62dBcAdditive phase noise, 10kHz offset: -138dBc/HzFour integrated digital up-converters (DUC)Interpolation: 1x, 2x, 3x, 4x, 6x, 8x ... 256xComplex baseband DUC for I/Q outputComplex to real upconversion for dual channel direct RF sampling64-bit frequency resolution NCOsFast reconfiguration interface for fast frequency hopping4-bit data with 200MHz clock60ns reconfiguration (32-bit frequency)Any frequency hopping with phase coherenceJESD204C InterfaceUp to 16 Lanes at up to 12.8GbpsClass C-S, Subclass-1 compatibleInternal AC coupling capacitorsSYSREF Windowing for automatic SYSREF timing calibration

Description

The DAC39RF10 and ’RFS10 are a family of dual and single channel digital-to-analog converters (DAC) with 16-bit resolution. The devices can be used as non-interpolating or interpolating DACs for either direct RF sampling or complex baseband signal generation. The maximum input data rate is 20.48GSPS for a single channel or 10.24GSPS for two channels. The devices can generate signals of up to 10, 7.5, and 5GHz signal bandwidth (8, 12, and 16-bit input resolution) at carrier frequencies exceeding 8GHz enabling direct sampling through C-band and into X-band. The high sampling rate, output frequency range, 64-bit NCO frequency resolution and any frequency hopping with phase coherence also makes the device capable of arbitrary waveform generation (AWG) and direct digital synthesis (DDS). A JESD204B and JESD204C compatible serial interface has 16 receiver pairs capable of up to 12.8Gbps. The interface is JESD204B and JESD204C subclass-1 compliant for deterministic latency and multi-device synchronization through the use of SYSREF. The DAC39RF10 and ’RFS10 are a family of dual and single channel digital-to-analog converters (DAC) with 16-bit resolution. The devices can be used as non-interpolating or interpolating DACs for either direct RF sampling or complex baseband signal generation. The maximum input data rate is 20.48GSPS for a single channel or 10.24GSPS for two channels. The devices can generate signals of up to 10, 7.5, and 5GHz signal bandwidth (8, 12, and 16-bit input resolution) at carrier frequencies exceeding 8GHz enabling direct sampling through C-band and into X-band. The high sampling rate, output frequency range, 64-bit NCO frequency resolution and any frequency hopping with phase coherence also makes the device capable of arbitrary waveform generation (AWG) and direct digital synthesis (DDS). A JESD204B and JESD204C compatible serial interface has 16 receiver pairs capable of up to 12.8Gbps. The interface is JESD204B and JESD204C subclass-1 compliant for deterministic latency and multi-device synchronization through the use of SYSREF.
