430759 Series

Catalog

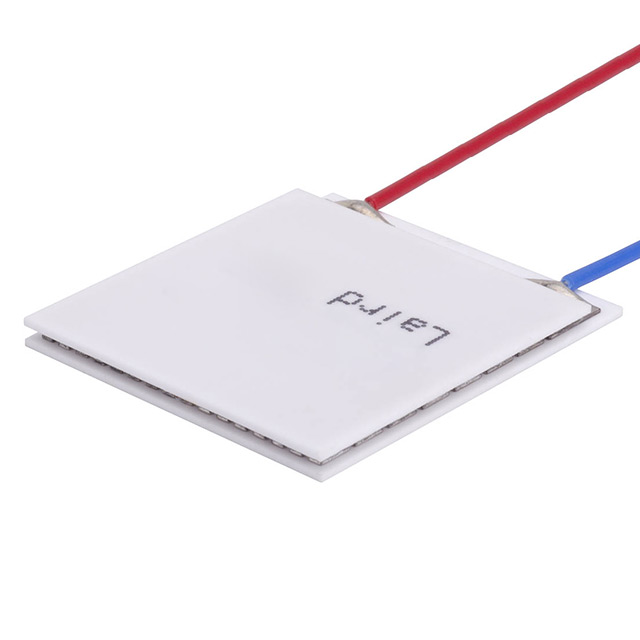

PELTIER UT11,12,F2,3030,TA,W6

Part	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature	Delta Tmax @ Th	Resistance	Voltage - Max [Max]	Current - Max [Max]	Height	Number of Stages	Features

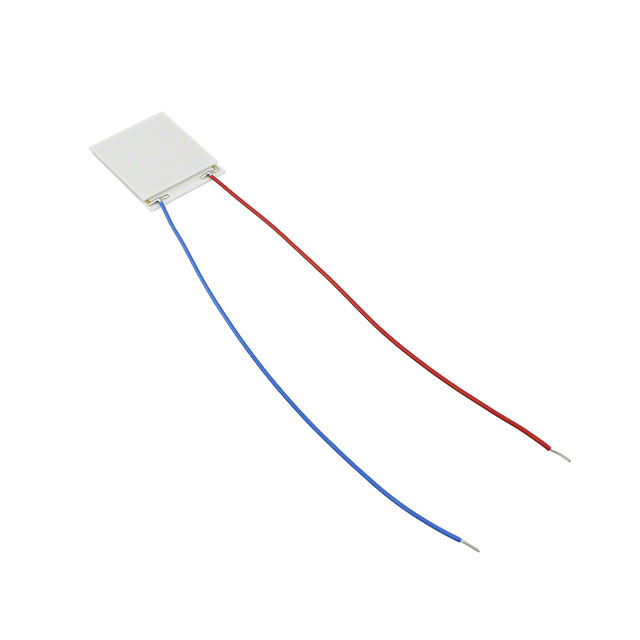

Laird Thermal Systems, Inc. 430759-509	34 mm	30 mm	80 °C	67 °C	1.2 Ohms	14.5 V	11.1 A	2.41 mm	1	Lead Wires Non-Sealed
