PEG124K Series
Manufacturer: KEMET
Beta
⌘K

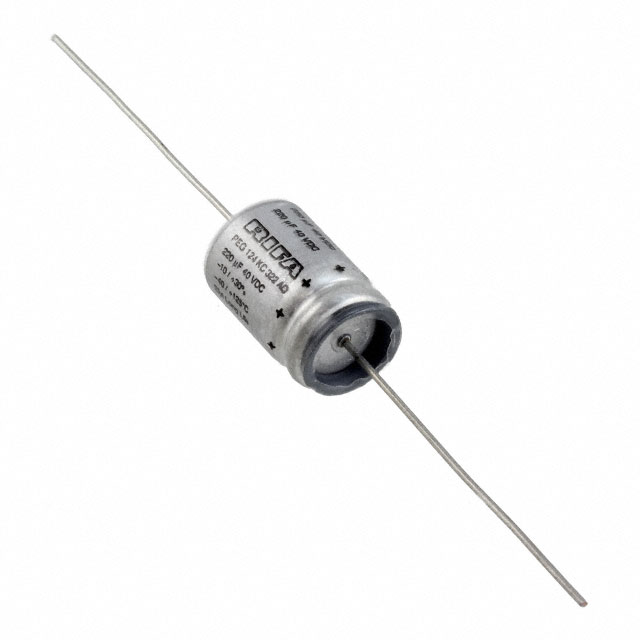

CAP ALUM 220UF 40V AXIAL TH
| Part | Mounting Type | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | Size / Dimension [x] | Voltage - Rated | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Capacitance | Lifetime @ Temp. | Ripple Current @ Low Frequency | Package / Case | Polarization | Tolerance [Min] | Tolerance [Max] | ESR (Equivalent Series Resistance) | Ripple Current @ High Frequency | Size / Dimension [custom] | Size / Dimension [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | Through Hole | 20 mm | 0.512 in | 13 mm | 0.787 " | 40 V | General Purpose | 125 °C | -40 C | 220 µF | 2500 Hrs | 452 mA | Axial Can | Polar | -10 % | 30 % | ||||
 KEMET | Through Hole | 0.394 in | 10 mm | 40 V | General Purpose | 125 °C | -40 C | 33 ÁF | 2000 Hrs | 153 mA | Axial Can | Polar | -10 % | 30 % | 2.9 Ohm | 1.1 A | 20 mm | 0.787 " | ||
KEMET | Through Hole | 29 mm | 0.394 in | 10 mm | 1.142 in | 40 V | General Purpose | 125 °C | -40 C | 68 µF | 2000 Hrs | 221 mA | Axial Can | Polar | -10 % | 30 % | 1.4 Ohm | 1.5 A |
