51K405 Series
Manufacturer: Rosenberger
Beta
⌘K

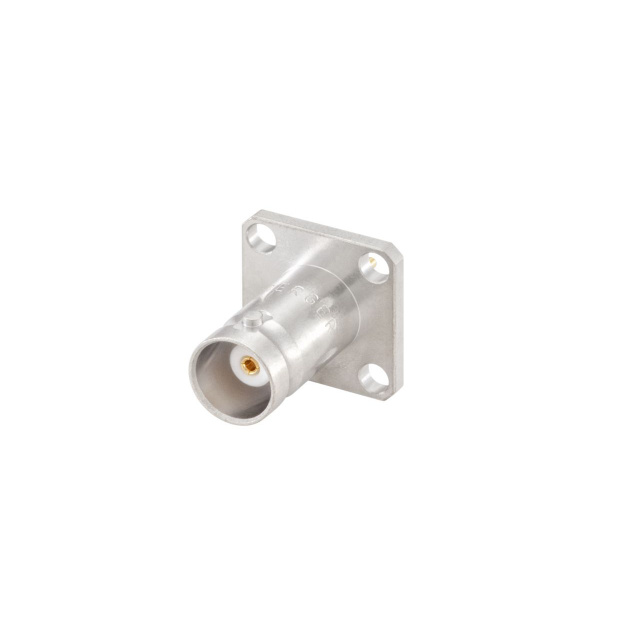

BNC PANEL JACK
| Part | Body Finish | Voltage Rating | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Plating | Mating Cycles | Body Material | Frequency - Max [Max] | Housing Color | Fastening Type | Impedance | Shield Termination | Mounting Feature | Center Contact Material | Connector Type | Contact Termination | Connector Style | Mounting Type | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | White Bronze | 400 V | Polytetrafluoroethylene (PTFE) | 155 C | -55 C | Gold | 500 | Brass | 10 GHz | Silver | Bayonet Lock | 50 Ohms | Solder | Flange | Beryllium Copper | Female Socket Jack | Solder Cup | BNC | Panel Mount | 1 |
