HE16WPR Series

Catalog

EUROSTRIP 9P15MM FLATBASE 63A 30

Part	Material Flammability Rating	Terminal Screw Finish	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Terminal Screw Material	Material - Insulation	Number of Rows	Barrier Type	Pitch	Number of Wire Entries	Number of Circuits	Color	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Bottom Termination	Current Rating	Voltage Rating	Terminal Block Type	Top Termination
Altech Corporation HE16WPR/09
Altech Corporation HE16WPR/07
Altech Corporation HE16WPR/05
Altech Corporation HE16WPR/06
Altech Corporation HE16WPR/04
Altech Corporation HE16WPR/08

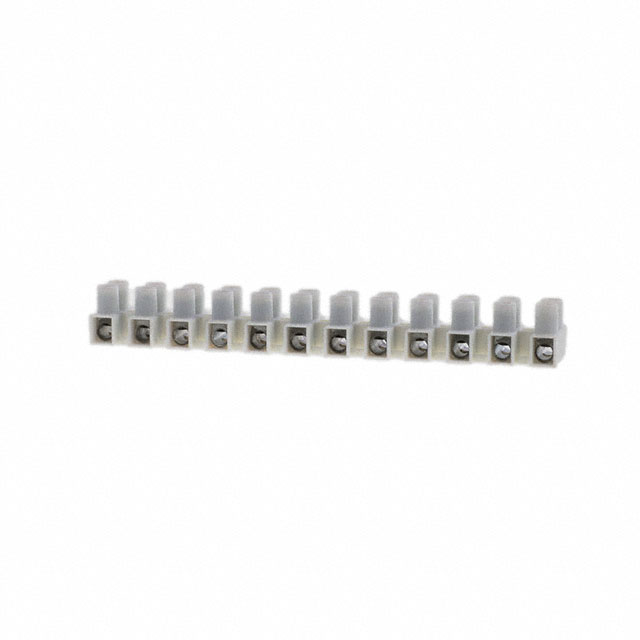

Altech Corporation HE16WPR/12	UL94 V-0	Blue Chromate	Chassis Panel	-30 °C	125 °C	Steel	Nylon 6/6 PA66 Polyamide	2	Enclosed	0.591 in	24	12	White	18 AWG	6 AWG	Closed	63 A	300 VAC/DC	Eurostyle Terminal Strip	Screws
Altech Corporation HE16WPR/11
Altech Corporation HE16WPR/10

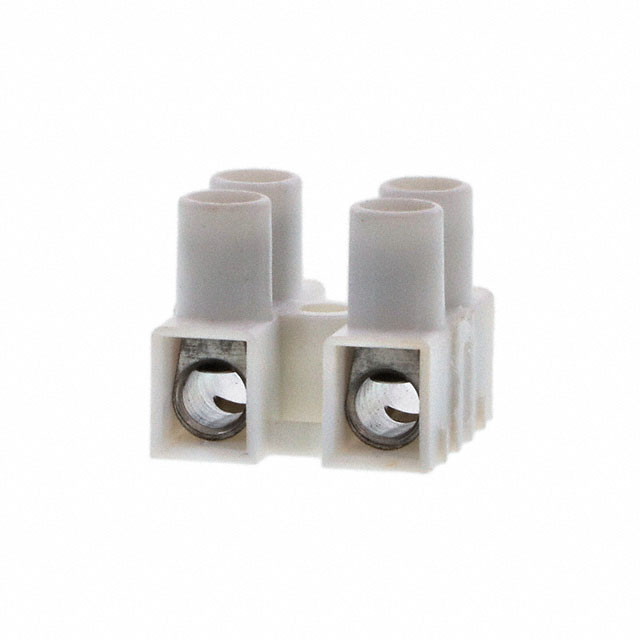

Altech Corporation HE16WPR/02	UL94 V-0	Blue Chromate	Chassis Panel	-30 °C	125 °C	Steel	Nylon 6/6 PA66 Polyamide	2	Enclosed	0.591 in	4	2	White	18 AWG	6 AWG	Closed	63 A	300 VAC/DC	Eurostyle Terminal Strip	Screws
