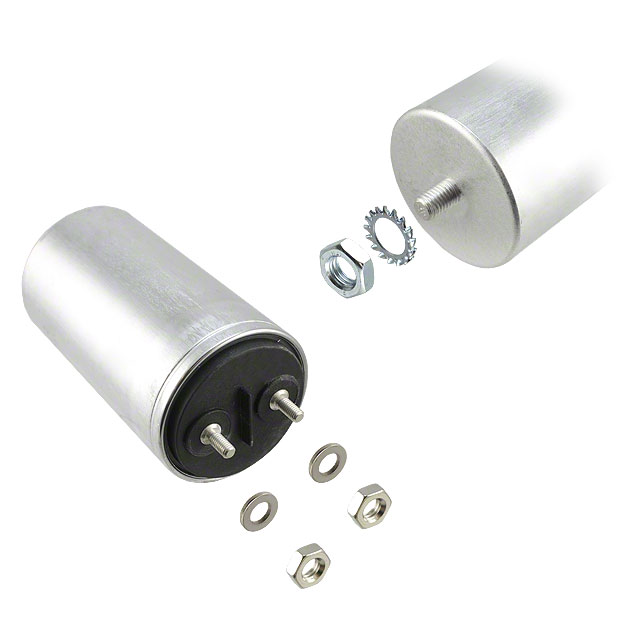

C44AFG Series

Manufacturer: KEMET

Catalog

CAP FILM 250UF 5% 400VDC RADIAL

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Termination	Dielectric Material	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Lead Spacing	Lead Spacing	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	ESR (Equivalent Series Resistance)	Tolerance	Voltage Rating - AC	Package / Case	Voltage Rating - DC	Capacitance	Height - Seated (Max) [Max] [z]	Lead Spacing
KEMET C44AFGR6250ZA0J	152 mm	5.984 "	Threaded Male	Polypropylene (PP) Metallized	General Purpose	85 °C	-40 C	1.378 "	35 mm	Chassis Stud Mount	3.346 "	85 mm	4 mOhms	5 %	250 V	Can Radial	400 V	250 µF
KEMET C44AFGP6200ZE0J		5.512 "	Threaded Male	Polypropylene (PP) Metallized	General Purpose	85 °C	-40 C		0.878 in	Chassis Stud Mount	2.992 " 76 mm		4 mOhms	5 %	250 V	Can Radial	400 V		140 mm	22.3 mm

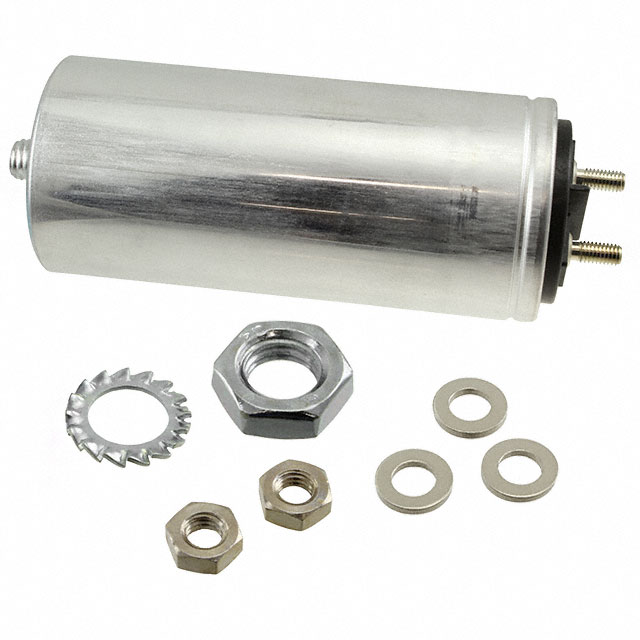

KEMET C44AFGP6100ZG0J		5.512 "	Threaded Male	Polypropylene (PP) Metallized	General Purpose	85 °C	-40 C		0.878 in	Chassis Stud Mount	2.362 in	60 mm	4 mOhms	5 %	250 V	Can Radial	400 V	100 µF	140 mm	22.3 mm

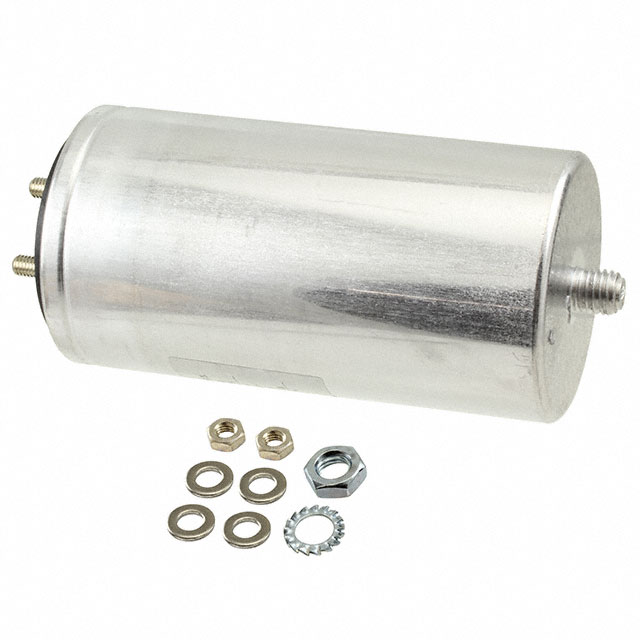

KEMET C44AFGP6150ZA0J		5.512 "	Threaded Male	Polypropylene (PP) Metallized	General Purpose	85 °C	-40 C		0.878 in	Chassis Stud Mount	2.756 in	70 mm	4 mOhms	5 %	250 V	Can Radial	400 V	150 µF	140 mm	22.3 mm

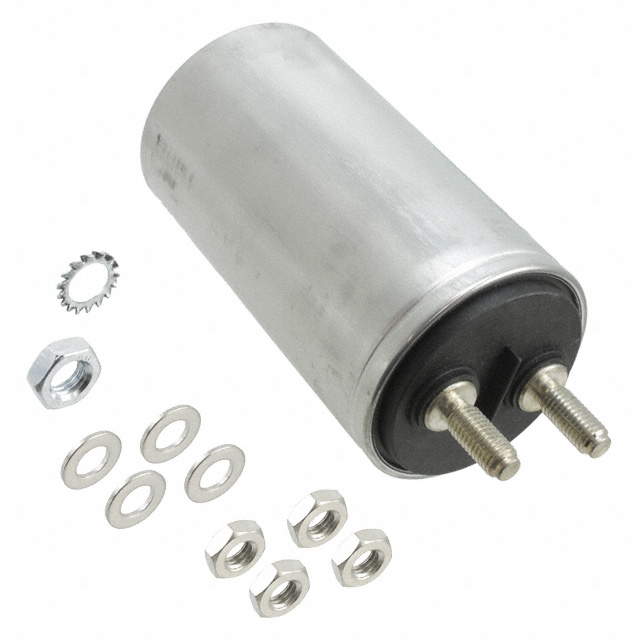

KEMET C44AFGR6200ZE0J			Threaded Male	Polypropylene (PP) Metallized	General Purpose	85 °C	-40 C			Chassis Stud Mount				5 %	250 V	Can Radial	400 V
KEMET C44AFGP6130ZA0J		5.512 "	Threaded Male	Polypropylene (PP) Metallized	General Purpose	85 °C	-40 C		0.878 in	Chassis Stud Mount	2.559 in	65 mm	4 mOhms	5 %	250 V	Can Radial	400 V	130 µF	140 mm	22.3 mm
