323916 Series

Catalog

TERMINAL,PIDG R 26-22 8

Part	Wire Gauge [Min]	Wire Gauge [Max]	Material - Insulation	Contact Finish	Thickness [custom]	Thickness [custom]	Mounting Type	Terminal Type	Length - Overall [x]	Length - Overall [x]	Stud/Tab Size	Width - Outer Edges [y]	Width - Outer Edges [y]	Insulation	Contact Material	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Termination	Features	Color	Length - Overall [x]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Wire Gauge

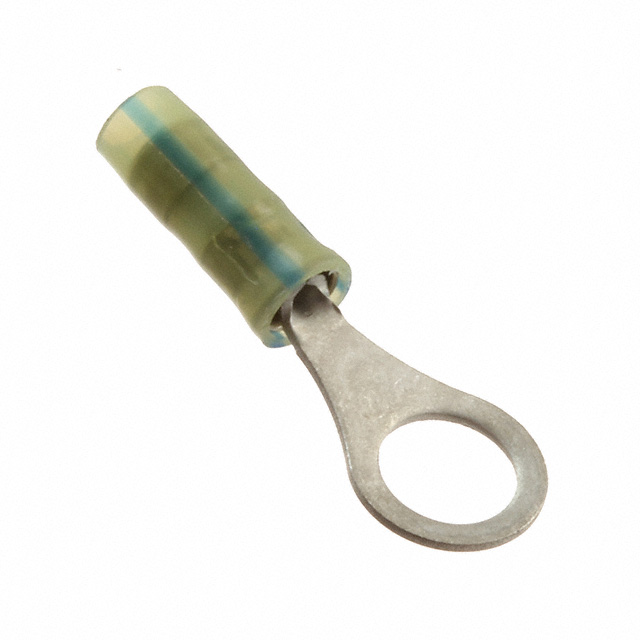

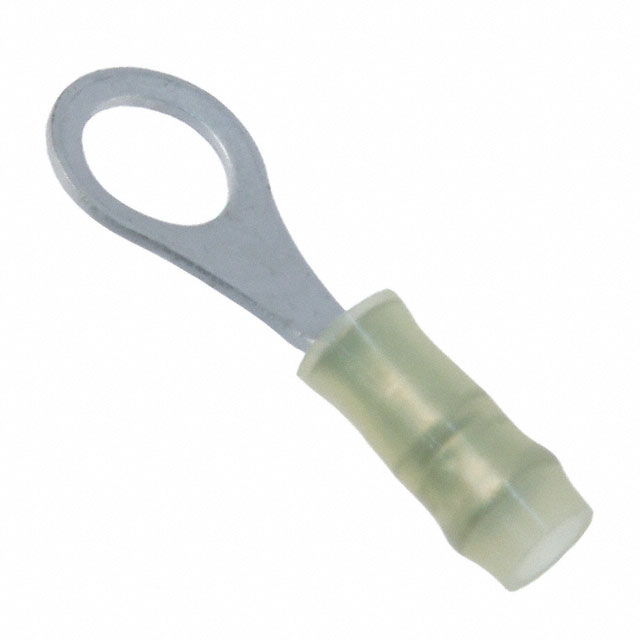

TE Connectivity Raychem Cable Protection 8-323916-1	22 AWG	26 AWG	Nylon Polyamide (PA)	Tin	0.46 mm	0.018 in	Free Hanging (In-Line)	Circular	18.8 mm	0.74 in	8 Stud	0.25 "	6.35 mm	Insulated	Copper	0.082 "	2.08 mm	0.05 in	1.27 mm	Crimp	Serrated Termination	Yellow
TE Connectivity Raychem Cable Protection 2-323916-3			Nylon Polyamide (PA)	Tin	0.46 mm	0.018 in	Free Hanging (In-Line)	Circular	0.785 in		8 Stud	0.25 "	6.35 mm	Insulated	Copper					Crimp	Insulation Restriction Serrated Termination	Yellow Blue Stripe	19.94 mm	0.055 in	0.79 mm	1.4 mm	0.031 in	24 AWG
