WL9G Series

Catalog

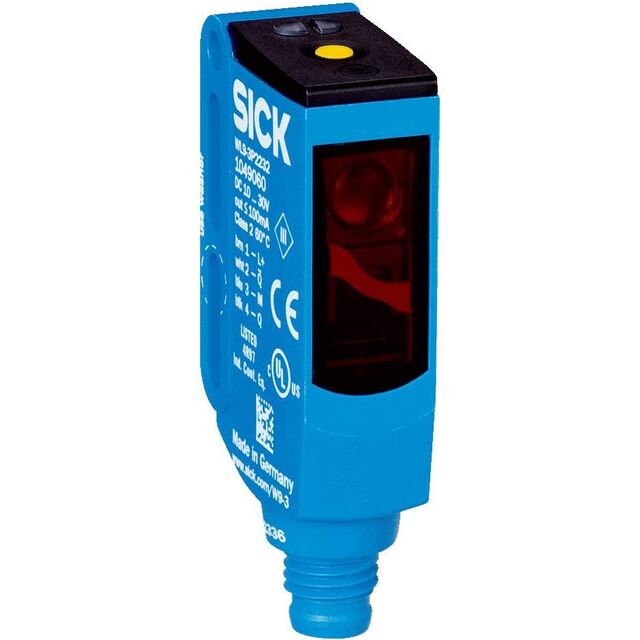

SENSOR RETROREFLECTIVE 5M PNP

Part	Output Configuration	Light Source	Sensing Method	Response Time	Voltage - Supply [Min]	Voltage - Supply [Max]	Connection Method	Adjustment Type	Sensing Distance	Operating Temperature [Min]	Operating Temperature [Max]	Sensing Distance	Ingress Protection	Cable Length	Cable Length
SICK, Inc. 1054599	PNP	RED (650nm)	Retroreflective	500 µs	10 VDC	30 VDC	Connector M12	Adjustable	5 m 196.85 in	-40 °C	60 °C
SICK, Inc. WL9G-3N2432	NPN	RED (650nm)	Retroreflective	500 µs	10 VDC	30 VDC	Connector M12	Adjustable	5 m 196.85 in	-40 °C	60 °C
SICK, Inc. 1049081	PNP	RED (650nm)	Retroreflective	500 µs	10 VDC	30 VDC	Cable	Adjustable	3 m	-40 °C	60 °C	118.11 in	IP66 IP67 IP69K	78.74 "	2 m
SICK, Inc. WL9G-3P2234	PNP	RED (650nm)	Retroreflective	500 µs	10 VDC	30 VDC	Connector M8	Adjustable	5 m 196.85 in	-40 °C	60 °C
SICK, Inc. 1049082	PNP	RED (650nm)	Retroreflective	500 µs	10 VDC	30 VDC	Connector M8	Adjustable	5 m 196.85 in	-40 °C	60 °C
SICK, Inc. 1049084	PNP	RED (650nm)	Retroreflective	500 µs	10 VDC	30 VDC	Cable with Connector	Adjustable	5 m 196.85 in	-40 °C	60 °C			4.724 in	120 mm
