CCV Series

Catalog

PLUGGABLE TERMINAL BLOCKS 12 POS 5.08MM PITCH THROUGH HOLE HEADER

Part	Insulation Height	Insulation Height	Material Flammability Rating	Contact Tail Length	Contact Tail Length	Housing Material	Type	Number of Levels	Contact Mating Finish	Voltage - IEC	Color	Features	Positions Per Level	Current - IEC	Mounting Type	Termination Style	Header Orientation	Pitch	Pitch	Current - UL	Number of Positions	Voltage - UL	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Positions Per Level [custom]

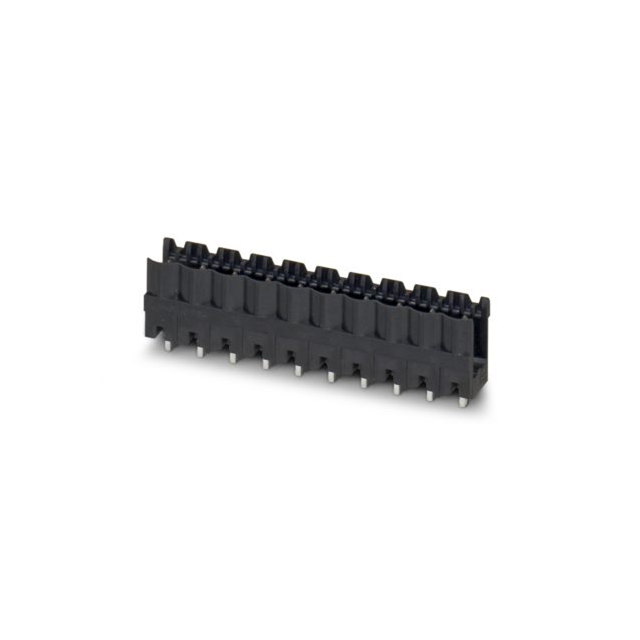

Phoenix Contact 1955620	0.472 "	12 mm	UL94 V-0	0.102 in	2.6 mm	Liquid Crystal Polymer (LCP)	Header Male Pins Shrouded (2 Side)	1	Tin	400 V	Black	Pick and Place Cap	12	12 A	Through Hole	Solder	Vertical	5.08 mm	0.2 in	10 A	12	300 V
Phoenix Contact 1955743	0.472 "	12 mm	UL94 V-0	0.102 in	2.6 mm	Liquid Crystal Polymer (LCP)	Header Male Pins Shrouded (4 Side)	1	Tin	400 V	Black	Mating Flange Pick and Place Cap	2	12 A	Through Hole	Solder	Vertical	5.08 mm	0.2 in	10 A	2	300 V
Phoenix Contact 1792740							Header Male Pins Shrouded (4 Side)	1	Tin	400 V	Black	Locking Ramp Mating Flange	3	12 A	Through Hole	Solder	Vertical	5.08 mm	0.2 in	10 A		300 V

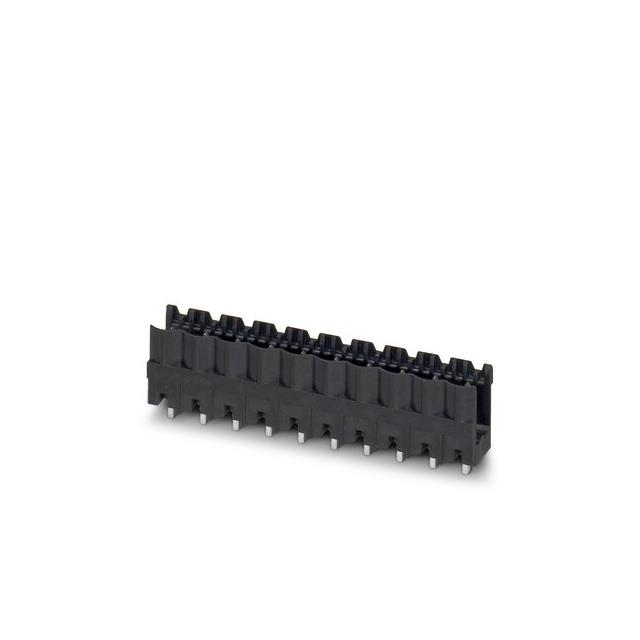

Phoenix Contact 1955536	0.472 "	12 mm	UL94 V-0	0.102 in	2.6 mm	Liquid Crystal Polymer (LCP)	Header Male Pins Shrouded (2 Side)	1	Tin	400 V	Black	Pick and Place Cap	3	12 A	Through Hole	Solder	Vertical	5.08 mm	0.2 in	10 A		300 V

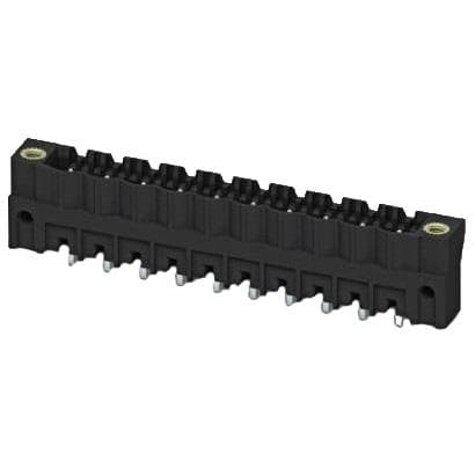

Phoenix Contact 1837459	0.472 "	12 mm	UL94 V-0	0.079 in	2 mm	Liquid Crystal Polymer (LCP)	Header Male Pins Shrouded (4 Side)	1	Tin	320 V	Black	Mating Flange	11	12 A	Through Hole	Solder	Vertical	5 mm	0.197 in	16 A	11	300 V	Copper Alloy	-40 C	100 °C
Phoenix Contact 1837433	0.472 "	12 mm	UL94 V-0	0.079 in	2 mm	Liquid Crystal Polymer (LCP)	Header Male Pins Shrouded (4 Side)	1	Tin	320 V	Black	Mating Flange	9	12 A	Through Hole	Solder	Vertical	5 mm	0.197 in	16 A	9	300 V	Copper Alloy	-40 C	100 °C
Phoenix Contact 1955578	0.472 "	12 mm	UL94 V-0	0.102 in	2.6 mm	Liquid Crystal Polymer (LCP)	Header Male Pins Shrouded (2 Side)	1	Tin	400 V	Black	Pick and Place Cap		12 A	Through Hole	Solder	Vertical	5.08 mm	0.2 in	10 A	7	300 V				7
