ND3KR10 Series

Catalog

SWITCH ROTARY DIP BCD 0.1A 5V

Part	Mechanical Life	Body Material	Electrical Life	Length [x]	Length [x]	Circuit	Mounting Type	Features	Termination Style	Actuator Type	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Actuator Level	Current Rating (Amps)	Contact Material	Pitch	Pitch	Height Above Board [z]	Height Above Board [z]	Voltage Rating	Height Above Board	Height Above Board	Pitch	Pitch
NKK Switches ND3KR10B	20000 Cycles	Polyamide (PA) Nylon Glass Filled	20000 Steps	0.32 in	8.13 mm	BCD	Surface Mount	Epoxy Sealed Terminals	Gull Wing	Rotary with Shaft	Gold	85 °C	-25 °C	10	Raised	100 mA	Beryllium Copper	2.54 mm	0.1 "	8.8 mm	0.346 in	5 V

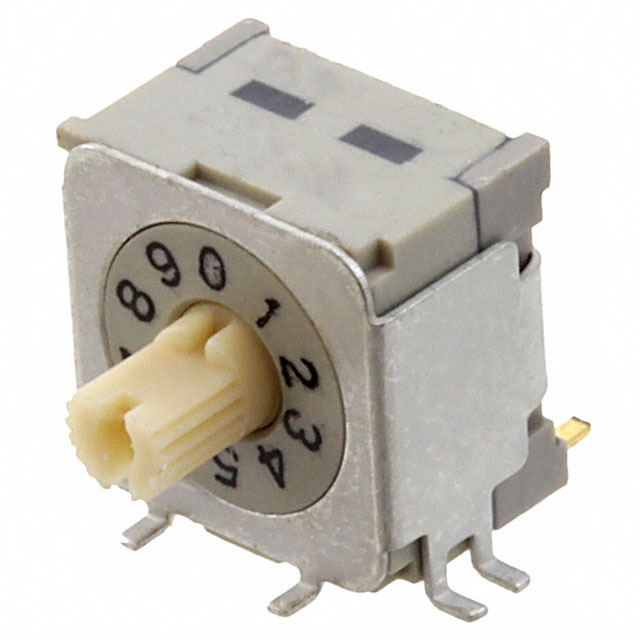

NKK Switches ND3KR10H	20000 Cycles	Polyamide (PA) Nylon Glass Filled	20000 Steps	0.32 in	8.13 mm	BCD	Right Angle Surface Mount	Epoxy Sealed Terminals	Gull Wing	Rotary with Shaft	Gold	85 °C	-25 °C	10	Raised	100 mA	Beryllium Copper	1.27 mm				5 V	8.03 mm	0.316 in	0.05 "	Half

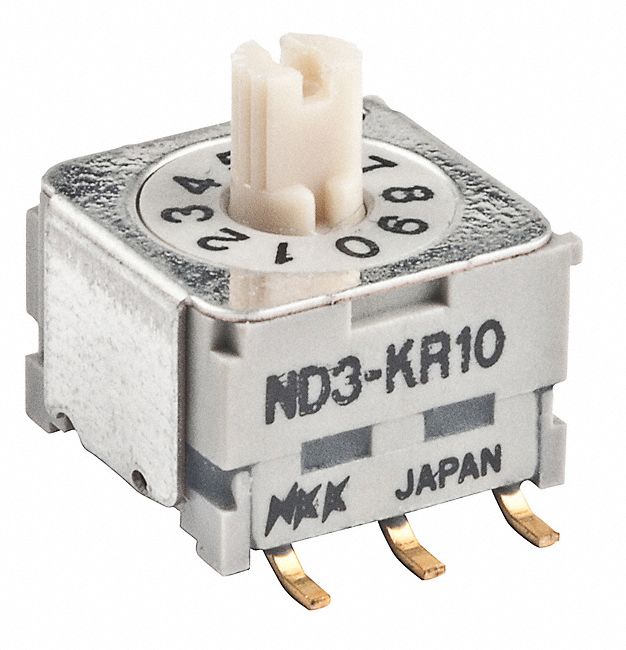

NKK Switches ND3KR10P	20000 Cycles	Polyamide (PA) Nylon Glass Filled	20000 Steps	0.32 in	8.13 mm	BCD	Surface Mount	Epoxy Sealed Terminals	Gull Wing	Rotary with Shaft	Gold	85 °C	-25 °C	10	Raised	100 mA	Beryllium Copper	2.54 mm	0.1 "	8.8 mm	0.346 in	5 V
NKK Switches ND3KR10H-R	20000 Cycles	Polyamide (PA) Nylon Glass Filled	20000 Steps	0.32 in	8.13 mm	BCD	Right Angle Surface Mount	Epoxy Sealed Terminals	Gull Wing	Rotary with Shaft	Gold	85 °C	-25 °C	10	Raised	100 mA	Beryllium Copper	1.27 mm				5 V	8.03 mm	0.316 in	0.05 "	Half
