1634511 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

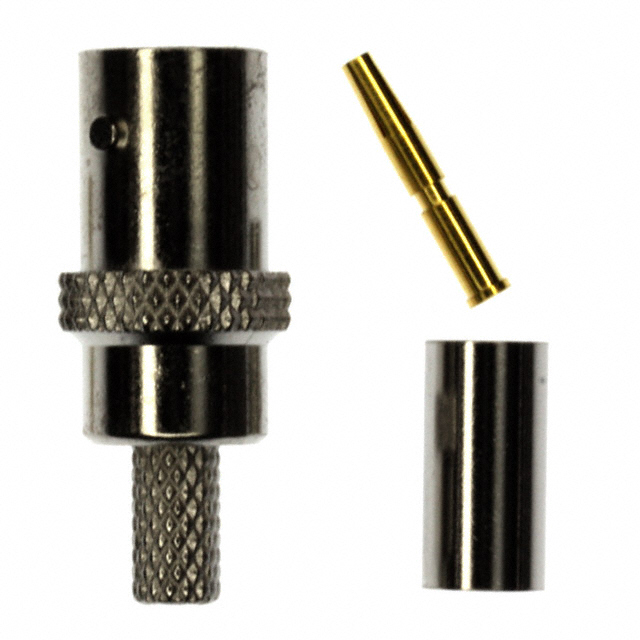

CONN BNC JACK STR 50 OHM CRIMP
| Part | Includes | Housing Color | Shield Termination | Center Contact Material | Contact Termination | Connector Style | Cable Group | Voltage Rating | Dielectric Material | Frequency - Max [Max] | Body Finish | Impedance | Mounting Type | Number of Ports | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Plating | Connector Type | Fastening Type | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 1 Connector 1 Contact 1 Ferrule 1 Sleeve | Silver | Crimp | Phosphor Bronze | Crimp | BNC | 141A Belden 9907 RG-58C | 500 V | Polymethylpentene (PMP) | 4 GHz | Nickel | 50 Ohms | Free Hanging (In-Line) | 1 | Zinc Alloy | 85 °C | -55 °C | Gold | Female Socket Jack | Bayonet Lock | 500 |
TE Connectivity Raychem Cable Protection | 1 Connector 1 Contact 1 Ferrule 1 Sleeve | Silver | Crimp | Phosphor Bronze | Crimp | BNC | 188A 316 RG-174A | 500 V | Polymethylpentene (PMP) | 4 GHz | Nickel | 50 Ohms | Free Hanging (In-Line) | 1 | Zinc Alloy | 85 °C | -55 °C | Gold | Female Socket Jack | Bayonet Lock | 500 |
