051110 Series

Manufacturer: Molex

Catalog

CONN HOUSING RCP 10 POS 2MM CRIMP ST CABLE MOUNT BLACK MILLI-GRID™ BAG

Part	Contact Type	Row Spacing	Row Spacing	Contact Termination	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Insulation Material	Number of Rows	Fastening Type	Color	Number of Positions	Note	Connector Type	Number of Positions	Features	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Shielding	Length	Length	Length	Contact Finish	Length [x]	Length [x]
Molex 0511101060	Female Socket	2 mm	0.079 in	Crimp	0.079 in	2 mm	-40 °C	105 ░C	Free Hanging (In-Line)	Polyester Glass Filled	2	Locking Ramp	Black	10	Contacts Not Included	Receptacle

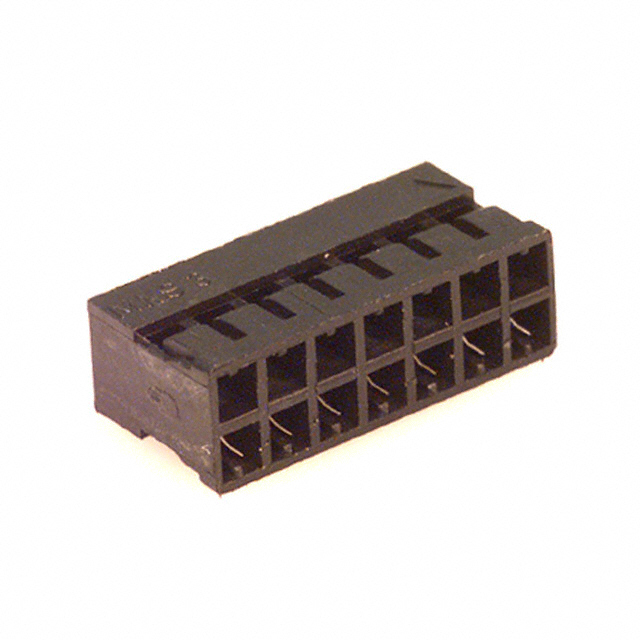

Molex 0511101450	Female Socket	2 mm	0.079 in	Crimp	0.079 in	2 mm	-40 °C	105 ░C	Free Hanging (In-Line)	Polyester Glass Filled	2		Black	14	Contacts Not Included	Receptacle
Molex 0511101652	Female Socket	2 mm	0.079 in	Crimp	0.079 in	2 mm	-40 °C	105 ░C	Free Hanging (In-Line)	Polyester Glass Filled	2	Locking Ramp	Black		Contacts Not Included	Receptacle	16	Polarizing Key
Molex 0511100650-10-A-6-X											2		Individual Multiple	6		Socket to Cable			Crimp	15 µin	0.38 µm	2 mm	0.079 in	Unshielded	10 in	0.833 ft	254 mm	Gold

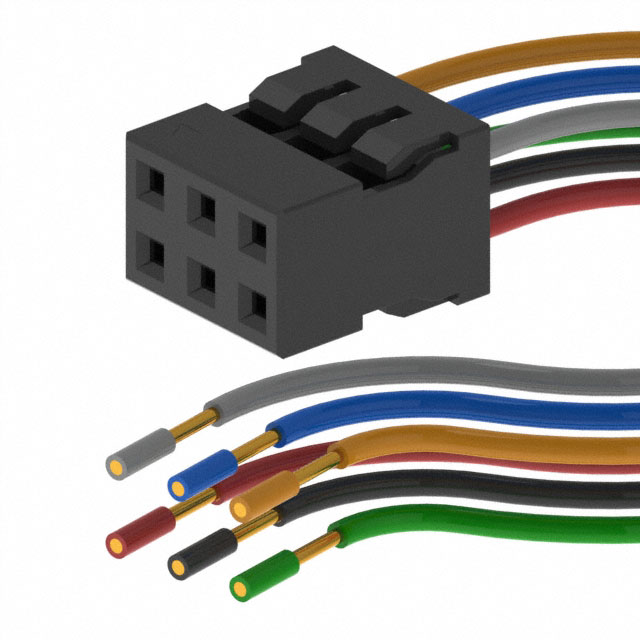

Molex 0511100650-30-A-6-Y											2		Individual Multiple	6		Socket to Cable			Crimp	15 µin	0.38 µm	2 mm	0.079 in	Unshielded				Gold	762 mm	30 "

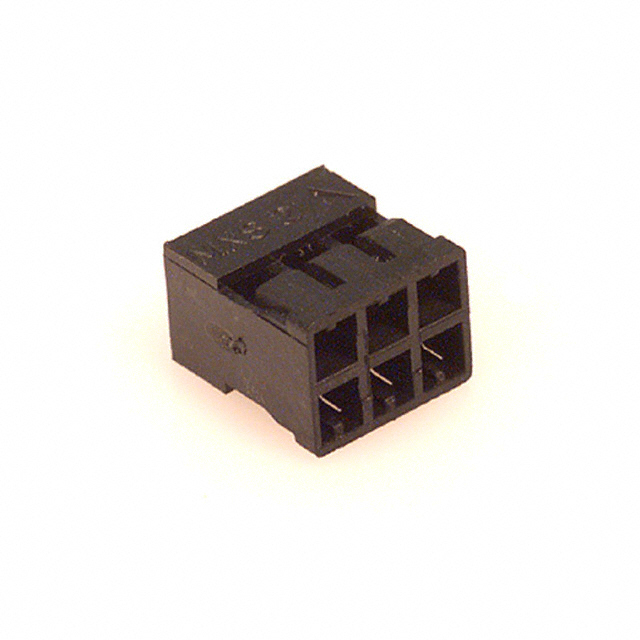

Molex 0511100650	Female Socket	2 mm	0.079 in	Crimp	0.079 in	2 mm	-40 °C	105 ░C	Free Hanging (In-Line)	Polyester Glass Filled	2		Black	6	Contacts Not Included	Receptacle

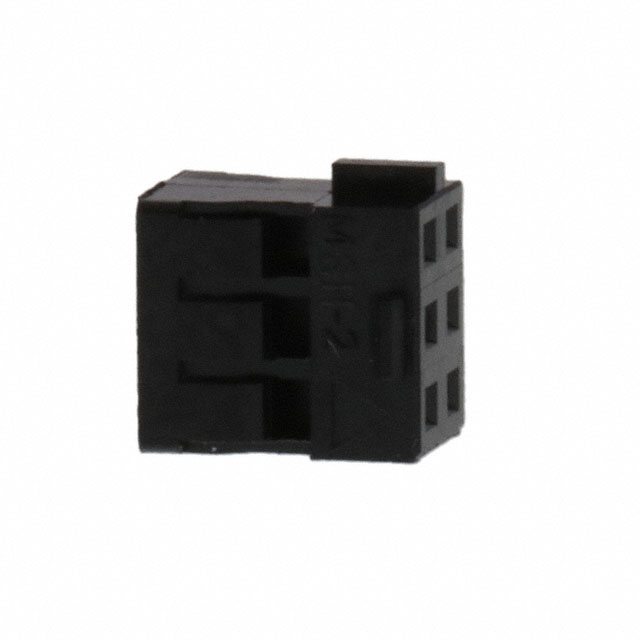

Molex 0511100656	Female Socket	2 mm	0.079 in	Crimp	0.079 in	2 mm	-40 °C	105 ░C	Free Hanging (In-Line)	Polyester Glass Filled	2	Locking Ramp	Black	6	Contacts Not Included	Receptacle

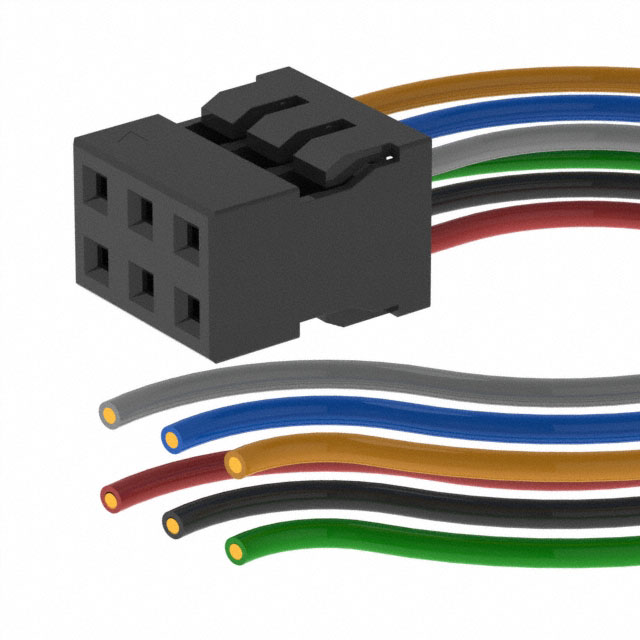

Molex 0511100650-30-A-6-X											2		Individual Multiple	6		Socket to Cable			Crimp	15 µin	0.38 µm	2 mm	0.079 in	Unshielded				Gold	762 mm	30 "

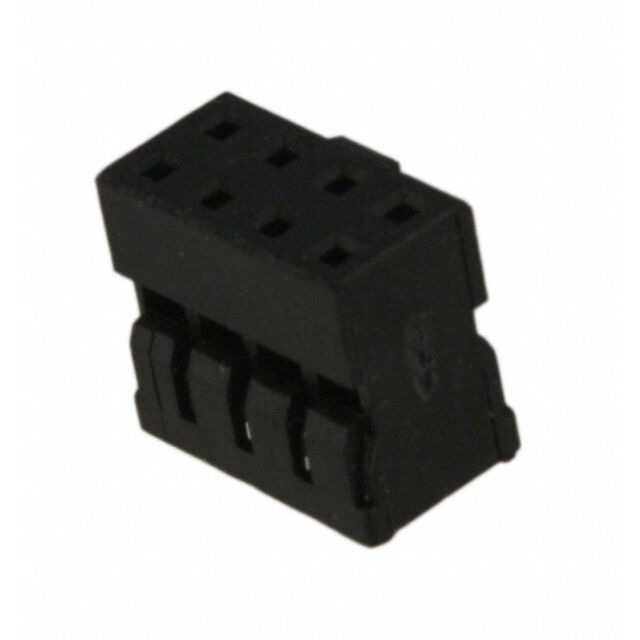

Molex 0511100856	Female Socket	2 mm	0.079 in	Crimp	0.079 in	2 mm	-40 °C	105 ░C	Free Hanging (In-Line)	Polyester Glass Filled	2	Locking Ramp	Black	8	Contacts Not Included	Receptacle

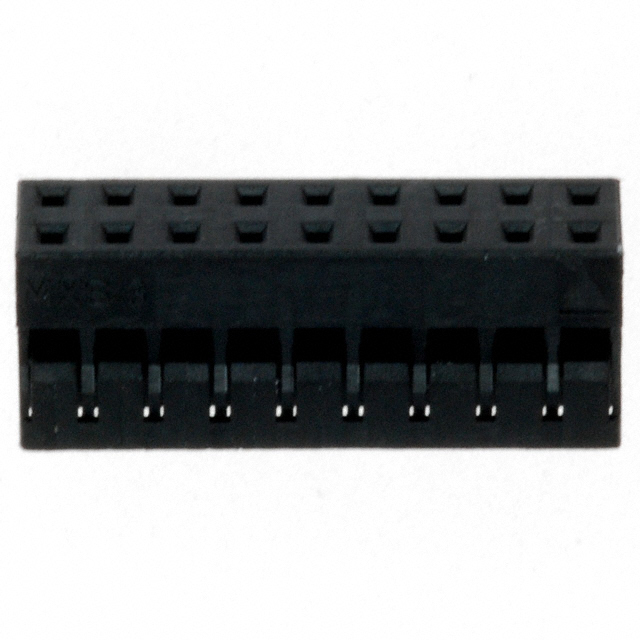

Molex 0511101850	Female Socket	2 mm	0.079 in	Crimp	0.079 in	2 mm	-40 °C	105 ░C	Free Hanging (In-Line)	Polyester Glass Filled	2		Black	18	Contacts Not Included	Receptacle
