9GL1224 Series

Catalog

FAN AXIAL 119X38MM 24VDC WIRE

Part	Material - Frame	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Lifetime @ Temp.	Bearing Type	Features	Fan Type	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	RPM	Weight	Weight	Voltage - Rated	Termination	Width [y]	Power (Watts)	Noise	Operating Temperature [Min]	Operating Temperature [Max]	Static Pressure	Static Pressure	Air Flow	Air Flow	Approval Agency	Current Rating (Amps)	Size / Dimension [z]

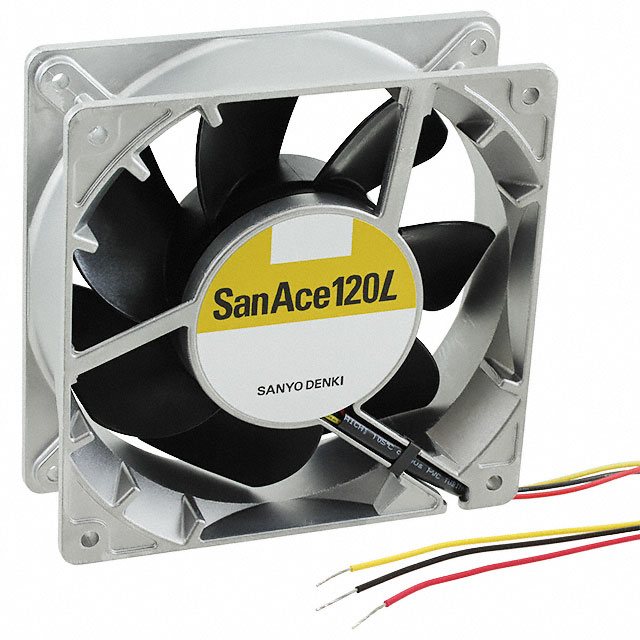

Sanyo Denki America Inc. 9GL1224F101	Aluminum	Plastic	27.6 VDC	14	100000 Hrs	Ball	Speed Sensor (Tach)	Tubeaxial	Square	119 mm	119 mm	2280 RPM	370.13 g	0.816 lb	24 VDC	3 Wire Leads	38 mm	3.84 W	36 dB	-20 ░C	70 °C	54.3 Pa	0.218 in H2O	2.44 m³/min	87 CFM	CSA TUV UL

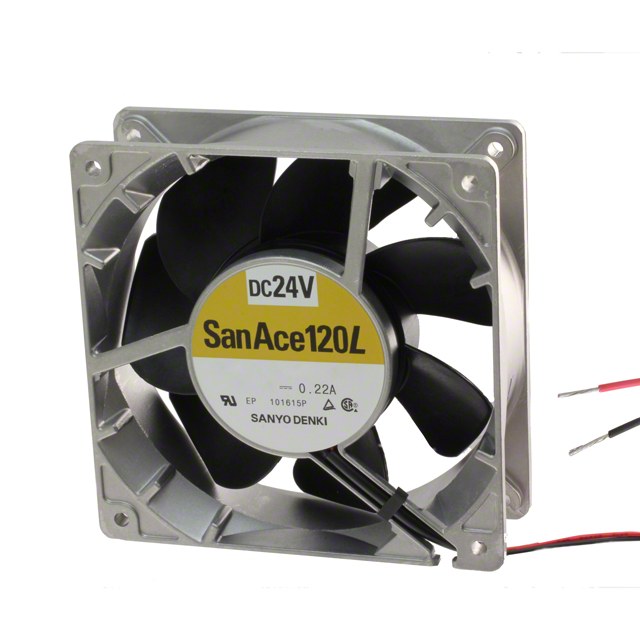

Sanyo Denki America Inc. 9GL1224H102	Aluminum	Plastic	27.6 VDC	14	100000 Hrs	Ball		Tubeaxial	Square	119 mm	119 mm	2600 RPM	370.13 g	0.816 lb	24 VDC	2 Wire Leads	38 mm	5.28 W	39 dB(A)	-20 ░C	70 °C	70.5 Pa	0.283 in H2O	2.77 m³/min	99 CFM	CSA TUV UL	0.22 A
Sanyo Denki America Inc. 9GL1224F102	Aluminum	Plastic	27.6 VDC	14	100000 Hrs	Ball		Tubeaxial	Square	119 mm	119 mm	2280 RPM	370.13 g	0.816 lb	24 VDC	2 Wire Leads	38 mm	3.84 W	36 dB	-20 ░C	70 °C	54.3 Pa	0.218 in H2O	2.44 m³/min	87 CFM	CSA TUV UL
Sanyo Denki America Inc. 9GL1224F1D01	Aluminum	Plastic	27.6 VDC	14	100000 Hrs	Ball	Locked Rotor Sensor	Tubeaxial	Square	119 mm	119 mm	2280 RPM	370.13 g	0.816 lb	24 VDC	3 Wire Leads	38 mm	3.84 W	36 dB	-20 ░C	70 °C	54.3 Pa	0.218 in H2O	2.44 m³/min	87 CFM	CSA TUV UL
Sanyo Denki America Inc. 9GL1224E1D01	Aluminum	Plastic			80000 Hrs	Ball	Locked Rotor Sensor	Tubeaxial	Square	119 mm	119 mm	3100 RPM	370.13 g	0.816 lb	24 VDC	3 Wire Leads	38 mm	8.16 W	46 dB(A)	-20 ░C	70 °C	100 Pa	0.401 in H2O	3.3 m³/min	118 CFM	CSA TUV UL	0.34 A
Sanyo Denki America Inc. 9GL1224G1D01	Aluminum	Plastic			80000 Hrs	Ball	Locked Rotor Sensor	Tubeaxial	Square	119 mm	119 mm	3600 RPM	370.13 g	0.816 lb	24 VDC	3 Wire Leads	38 mm	12 W	49 dB	-20 ░C	70 °C	135 Pa	0.542 in H2O	3.84 m³/min	137 CFM	CSA TUV UL	0.5 A
Sanyo Denki America Inc. 9GL1224M1D01	Aluminum	Plastic	27.6 VDC	14	100000 Hrs	Ball	Locked Rotor Sensor	Tubeaxial		120 mm		1950 RPM	370.13 g	0.816 lb	24 VDC	3 Wire Leads	38 mm	2.64 W	32 dB	-20 ░C	70 °C	39.6 Pa	0.159 in H2O	2.07 mł/min	74 CFM	CSA TUV UL	110 mA	120 mm
Sanyo Denki America Inc. 9GL1224M101	Aluminum	Plastic	27.6 VDC	14	100000 Hrs	Ball	Speed Sensor (Tach)	Tubeaxial	Square	119 mm	119 mm	1950 RPM	370.13 g	0.816 lb	24 VDC	3 Wire Leads	38 mm	2.64 W	32 dB	-20 ░C	70 °C	39.6 Pa	0.159 in H2O	2.07 mł/min	74 CFM	CSA TUV UL	110 mA
Sanyo Denki America Inc. 9GL1224E102	Aluminum	Plastic			80000 Hrs	Ball		Tubeaxial	Square	119 mm	119 mm	3100 RPM	370.13 g	0.816 lb	24 VDC	2 Wire Leads	38 mm	8.16 W	46 dB(A)	-20 ░C	70 °C	100 Pa	0.401 in H2O	3.3 m³/min	118 CFM	CSA TUV UL	0.34 A

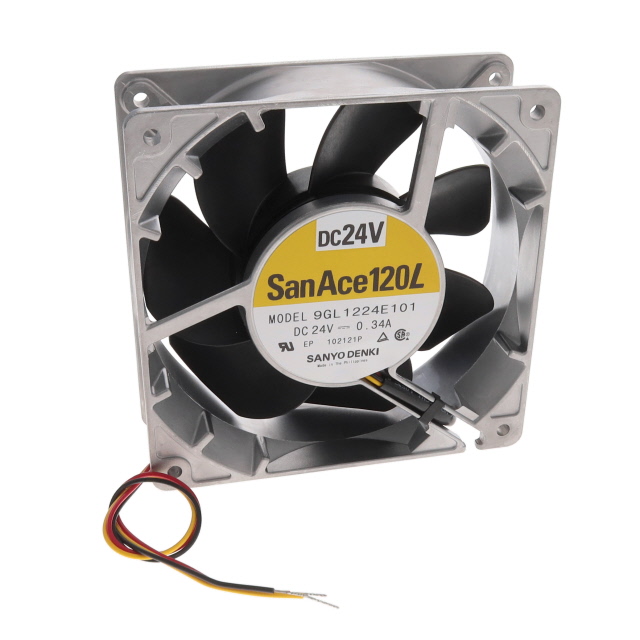

Sanyo Denki America Inc. 9GL1224E101	Aluminum	Plastic			80000 Hrs	Ball	Speed Sensor (Tach)	Tubeaxial	Square	119 mm	119 mm	3100 RPM	370.13 g	0.816 lb	24 VDC	3 Wire Leads	38 mm	8.16 W	46 dB(A)	-20 ░C	70 °C	100 Pa	0.401 in H2O	3.3 m³/min	118 CFM	CSA TUV UL	0.34 A
