VM3AQ Series

Catalog

SWITCH LIMIT SPST-NO 16A 125V

Part	Pretravel	Pretravel	Mechanical Life	Release Force	Operating Position	Operating Position	Operating Temperature [Max]	Operating Temperature [Min]	Operating Force	Switch Function	Actuator Type	Overtravel [custom]	Overtravel [custom]	Differential Travel	Differential Travel	Voltage Rating - AC	Termination Style	Current Rating (Amps)	Circuit	Mounting Type	Operating Position

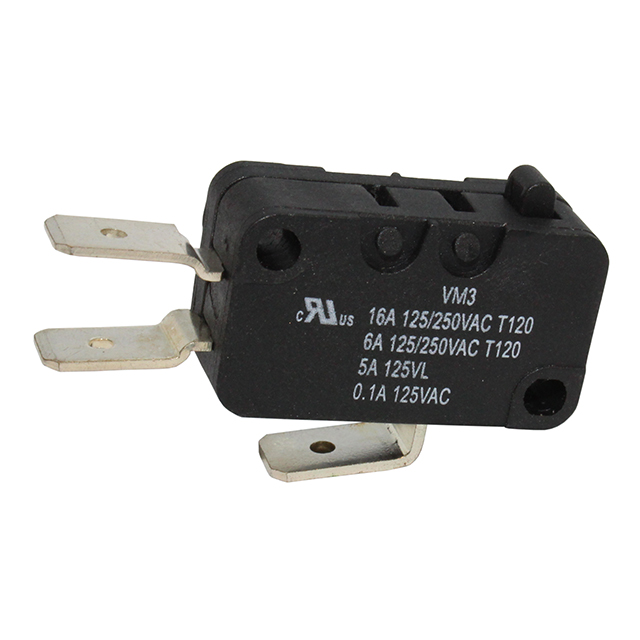

CIT Relay and Switch VM3AQF1101L00	0.055 in	1.4 mm	10000000 Cycles	90 gf	0.562 in	14.3 mm	120 °C	-40 C	110 gf	Off-Mom	Round (Pin Plunger)	1.1 mm	0.045 "	0.016 in	0.4 mm	125 V	Quick Connect - 0.250" (6.3mm)	16 A	SPST-NO	Chassis Mount

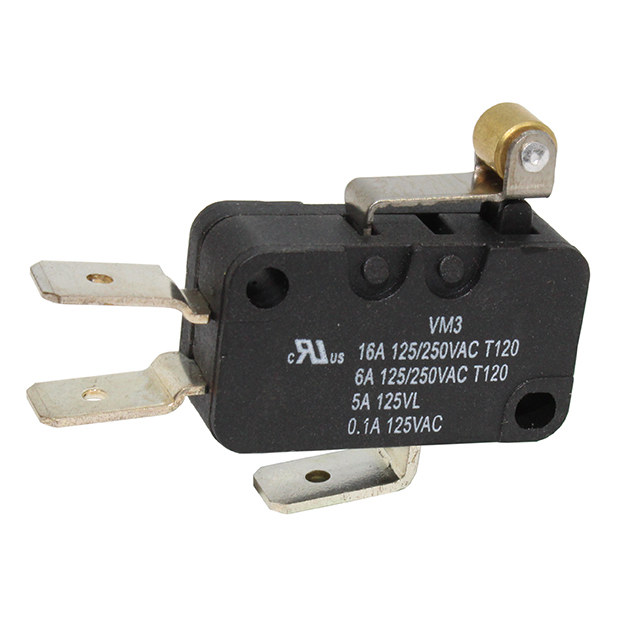

CIT Relay and Switch VM3AQF1801L06	0.075 in	1.9 mm	10000000 Cycles	80 gf		0.785 in	120 °C	-40 C	180 gf	Off-Mom	Lever Roller	1.2 mm	0.047 "	0.016 in	0.4 mm	125 V	Quick Connect - 0.250" (6.3mm)	16 A	SPST-NO	Chassis Mount	19.9 mm
CIT Relay and Switch VM3AQF0802L00	0.055 in	1.4 mm	10000000 Cycles		0.562 in	14.3 mm	120 °C	-40 C	80 gf	Off-Mom	Round (Pin Plunger)	1.1 mm	0.045 "	0.016 in	0.4 mm	125 V	Quick Connect	16 A	SPST-NO	Chassis Mount
CIT Relay and Switch VM3AQF0801L00	0.055 in	1.4 mm	10000000 Cycles		0.562 in	14.3 mm	120 °C	-40 C	80 gf	Off-Mom	Round (Pin Plunger)	1.1 mm	0.045 "	0.016 in	0.4 mm	125 V	Quick Connect - 0.250" (6.3mm)	16 A	SPST-NO	Chassis Mount

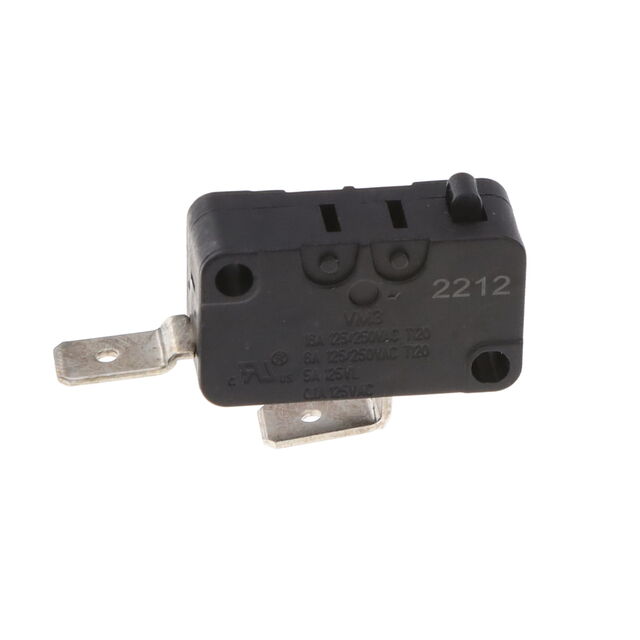

CIT Relay and Switch VM3AQF1801L00	0.055 in	1.4 mm	10000000 Cycles	90 gf	0.562 in	14.3 mm	120 °C	-40 C	180 gf	Off-Mom	Round (Pin Plunger)	1.1 mm	0.045 "	0.016 in	0.4 mm	125 V	Quick Connect - 0.250" (6.3mm)	16 A	SPST-NO	Chassis Mount
CIT Relay and Switch VM3AQF1101L03	0.131 in	3.3 mm	10000000 Cycles	50 gf	0.551 in	14 mm	120 °C	-40 C	50 gf	Off-Mom	Lever Straight	2.3 mm	0.09 "	0.025 in	0.6 mm	125 V	Quick Connect - 0.250" (6.3mm)	16 A	SPST-NO	Chassis Mount

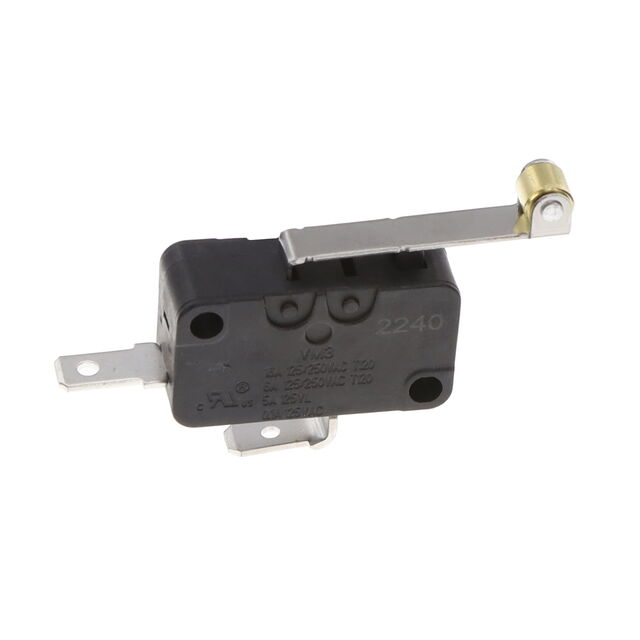

CIT Relay and Switch VM3AQF1802L01	0.146 in	3.7 mm	10000000 Cycles	60 gf	0.732 in	18.6 mm	120 °C	-40 C	80 gf	Off-Mom	Lever Roller	2.5 mm	0.1 "	0.027 in	0.7 mm	125 V	Quick Connect	16 A	SPST-NO	Chassis Mount
