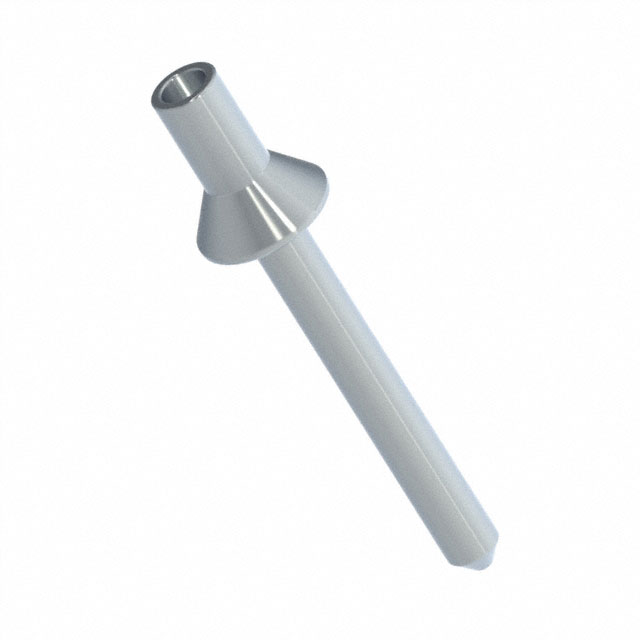

3117-1 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PC PIN CIRC
| Part | Contact Material | Terminal Style | Length - Below Flange [x] | Length - Below Flange [x] | Contact Finish Thickness | Contact Finish Thickness | Length - Overall | Length - Overall | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Board Thickness | Board Thickness | Contact Finish | Termination | Length - Above Flange [x] | Length - Above Flange [x] | Terminal Type | Insulation | Mounting Type | Flange Diameter [diameter] | Flange Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Brass Alloy | Single End | 0.047 " | 1.19 mm | 200 Áin | 5.08 Ám | 6.6 mm | 0.26 in | 0.89 mm | 0.035 in | 0.79 mm | 0.031 in | Tin | Swage | 4.78 mm | 0.188 in | PC Pin | Non-Insulated | Through Hole | 0.06 in | 1.52 mm |
