5008C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

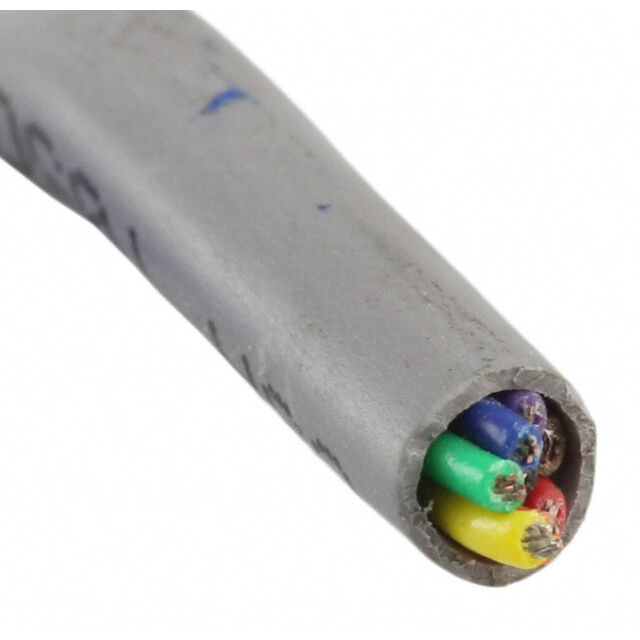

CBL 8COND 22AWG SLATE 1000=1000'
| Part | Jacket Color | Features | Ratings | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Operating Temperature [Min] | Operating Temperature [Max] | Usage | Conductor Material | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Number of Conductors [custom] | Conductor Insulation | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Slate | Biological Compatibility Rip Cord | ISO 10993 UL Style 2464 | Multi-Conductor | 0.813 mm | 0.032 in | 0.235 " | 5.97 mm | Poly-Vinyl Chloride (PVC) | -35 °C | 105 ░C | Communication Control | Copper Tinned | 22 AWG | 30 AWG | 7 | 300 VDC | 8 | Poly-Vinyl Chloride (PVC) | ||
 ALPHA WIRE | Black | Biological Compatibility Rip Cord | ISO 10993 UL Style 2464 | Multi-Conductor | 0.813 mm | 0.032 in | 0.235 " | 5.97 mm | Poly-Vinyl Chloride (PVC) | -35 °C | 105 ░C | Communication Control | Copper Tinned | 22 AWG | 30 AWG | 7 | 300 VDC | 8 | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft |
