XZFWS81 Series
Manufacturer: SunLED
Beta
⌘K

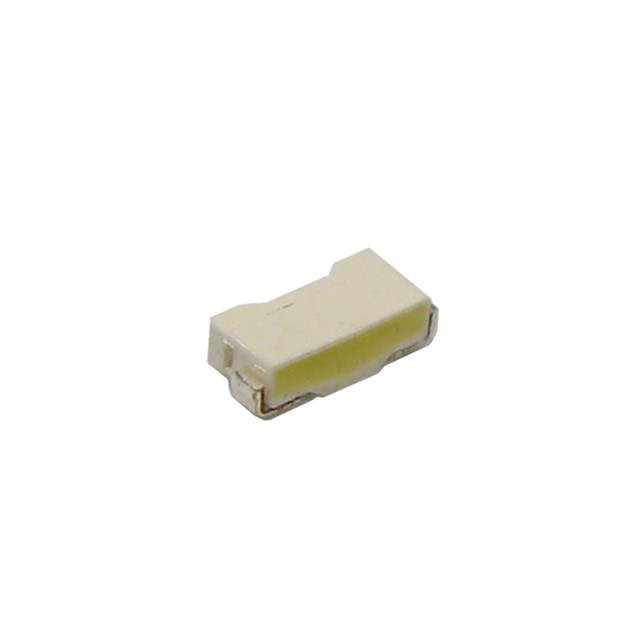

LED WHITE CLEAR CHIP SMD R/A
| Part | Supplier Device Package | Mounting Type | Viewing Angle | Voltage - Forward (Vf) (Typ) | Lens Transparency | Size / Dimension [y] | Size / Dimension [x] | Current - Test | Package / Case | Lens Size [x] | Lens Size [y] | Millicandela Rating | Height (Max) [Max] [z] | Color | Lens Color | Lens Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SunLED | Chip LED | Right Angle Surface Mount | 110 ° | 3.3 V | Clear | 1.2 mm | 2.8 mm | 20 mA | 2-SMD J-Lead | 2.3 mm | 0.57 mm | 1395 mcd | 0.8 mm | White | Colorless | Rectangle with Flat Top |
