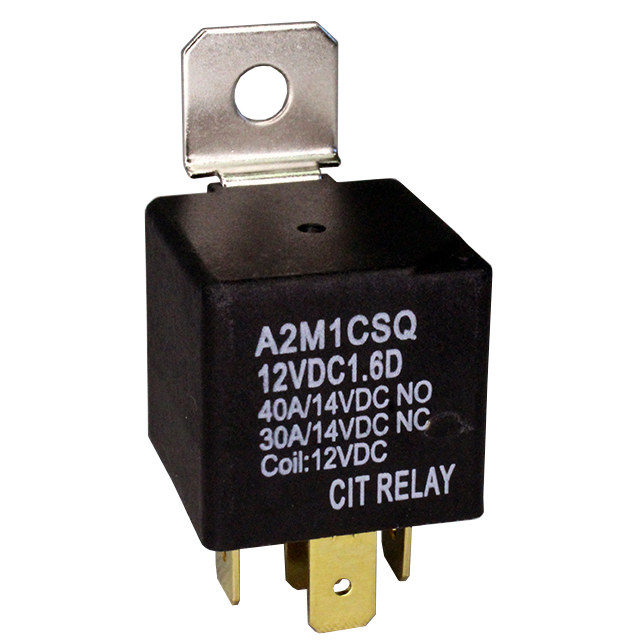

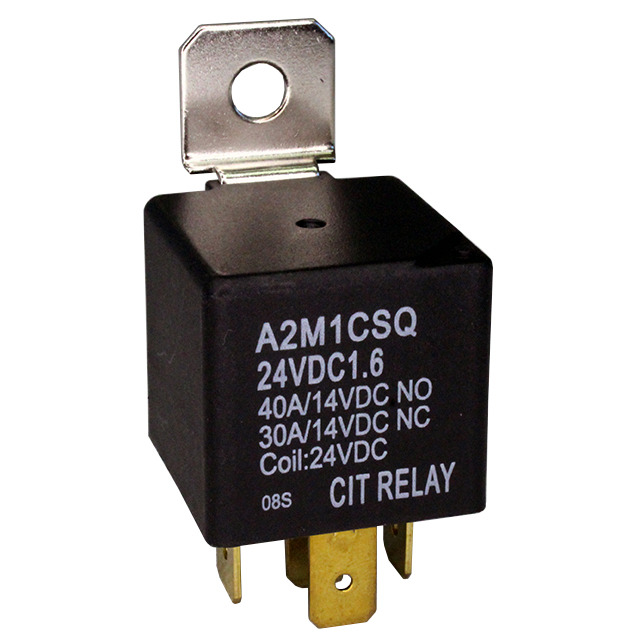

A2M1CSQ Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY AUTOMOTIVE SPDT 40A 24V
| Part | Coil Resistance | Coil Power | Contact Material | Must Release Voltage | Operate Time | Features | Operating Temperature [Max] | Operating Temperature [Min] | Coil Current | Termination Style | Must Operate Voltage | Contact Form | Release Time | Contact Rating (Current) | Coil Type | Switching Voltage [Max] | Mounting Type | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 360 Ohms | 1.6 W | Silver Tin Oxide (AgSnO) | 2.4 VDC | 7 ms | Diode Sealed - Fully | 125 °C | -40 C | 66.7 mA | Quick Connect - 0.250" (6.3mm) | 16.8 VDC | SPDT (1 Form C) | 5 ms | 40 A | Non Latching | 75 VDC | Chassis Mount | 24 VDC |
 CIT Relay and Switch | 360 Ohms | 1.6 W | Silver Tin Oxide (AgSnO) | 2.4 VDC | 7 ms | Sealed - Fully | 125 °C | -40 C | 66.7 mA | Quick Connect - 0.250" (6.3mm) | 16.8 VDC | SPDT (1 Form C) | 5 ms | 40 A | Non Latching | 75 VDC | Chassis Mount | 24 VDC |
 CIT Relay and Switch | 90 Ohms | 1.6 W | Silver Tin Oxide (AgSnO) | 1.2 VDC | 7 ms | Diode Sealed - Fully | 125 °C | -40 C | 133.3 mA | Quick Connect - 0.250" (6.3mm) | 8.4 VDC | SPDT (1 Form C) | 5 ms | 40 A | Non Latching | 75 VDC | Chassis Mount | 12 VDC |
 CIT Relay and Switch | 360 Ohms | 1.6 W | Silver Tin Oxide (AgSnO) | 2.4 VDC | 7 ms | Resistor Sealed - Fully | 125 °C | -40 C | 66.7 mA | Quick Connect - 0.250" (6.3mm) | 16.8 VDC | SPDT (1 Form C) | 5 ms | 40 A | Non Latching | 75 VDC | Chassis Mount | 24 VDC |
