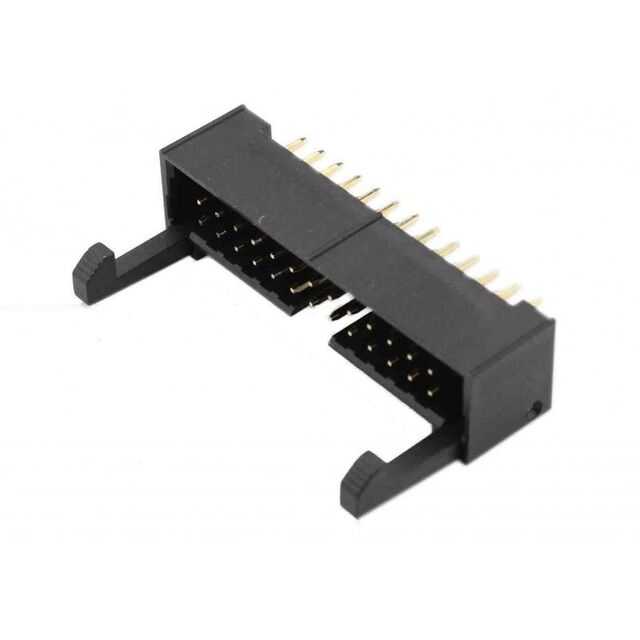

AWHW-254-40 Series

Catalog

DIN 41651

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Termination	Insulation Material	Number of Rows [custom]	Contact Material	Fastening Type	Number of Positions	Connector Type	Number of Positions Loaded	Contact Type	Style	Insulation Color	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height [z]	Insulation Height [z]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Pitch - Mating	Pitch - Mating	Shrouding	Contact Length - Mating	Contact Length - Mating	Mounting Type	Current Rating (Amps)	Material Flammability Rating	Contact Finish Thickness - Mating	Features
Assmann WSW Components AWHW-254-40TP10
Assmann WSW Components AWHW-254-40TP13	-40 C	105 ░C	Gold	Solder	Glass Filled Nylon 9T Polyamide (PA9T)	2	Brass	Latch Lock/Eject Hooks	40	Header	All	Male Pin	Board to Cable/Wire	Black	0.126 "	3.2 mm	0.427 in	10.85 mm	0.1 in	2.54 mm	Square	0.1 "	2.54 mm	Shrouded - 4 Wall	6 mm	0.236 in	Right Angle Through Hole	3 A	UL94 V-0	Flash
Assmann WSW Components AWHW-254-40TP12	-40 C	105 ░C	Gold	Solder	Glass Filled Nylon 9T Polyamide (PA9T)	2	Brass	Latch Lock/Eject Hooks	40	Header	All	Male Pin	Board to Cable/Wire	Black	0.126 "	3.2 mm	0.87 "	22.1 mm	0.1 in	2.54 mm	Square	0.1 "	2.54 mm	Shrouded - 4 Wall	6 mm	0.236 in	Through Hole	3 A	UL94 V-0	Flash	Polarizing Key
Assmann WSW Components AWHW-254-40TP11	-40 C	105 ░C	Gold	Solder	Glass Filled Nylon 9T Polyamide (PA9T)	2	Brass	Latch Lock/Eject Hooks	40	Header	All	Male Pin	Board to Cable/Wire	Black	0.126 "	3.2 mm	0.427 in	10.85 mm	0.1 in	2.54 mm	Square	0.1 "	2.54 mm	Shrouded - 4 Wall	6 mm	0.236 in	Right Angle Through Hole	3 A	UL94 V-0	Flash	Keying Slot
Assmann WSW Components AWHW-254-40RP12	-40 C	105 ░C	Gold	Solder	Glass Filled Nylon 9T Polyamide (PA9T)	2	Brass	Latch Lock/Eject Hooks Long	40	Header	All	Male Pin	Board to Cable/Wire	Black	0.126 "	3.2 mm	0.87 "	22.1 mm	0.1 in	2.54 mm	Square	0.1 "	2.54 mm	Shrouded - 4 Wall	6 mm	0.236 in	Through Hole	3 A	UL94 V-0	Flash	Keying Slot
