SFH690 Series

Manufacturer: Vishay General Semiconductor - Diodes Division

Catalog

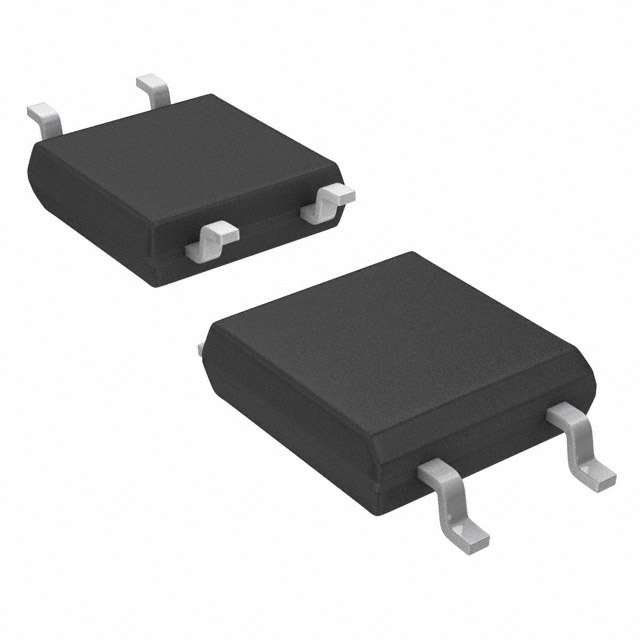

OPTOISO 3.75KV 1CH TRANS 4-SOP

Part	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Output Type	Voltage - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Vce Saturation (Max) [Max]	Voltage - Forward (Vf) (Typ)	Turn On / Turn Off Time (Typ) [custom]	Turn On / Turn Off Time (Typ) [custom]	Current Transfer Ratio (Max)	Voltage - Isolation	Input Type	Package / Case	Current - Output / Channel	Mounting Type	Current Transfer Ratio (Min) [Min]	Number of Channels	Current - DC Forward (If) (Max)
Vishay General Semiconductor - Diodes Division SFH690ABT	3 µs	4 µs	1.81 mOhm	70 V	100 °C	-55 °C	300 mV	1.15 V	3 µs	5 µs	300 %	3750 Vrms	DC	4-SMD Gull Wing	50 mA	Surface Mount	50 %	1	50 mA
Vishay General Semiconductor - Diodes Division SFH690AT3	3 µs	4 µs	1.81 mOhm	70 V	100 °C	-55 °C	300 mV	1.15 V	3 µs	5 µs	150 %	3750 Vrms	DC	4-SMD Gull Wing	50 mA	Surface Mount	50 %	1	50 mA
Vishay General Semiconductor - Diodes Division SFH690B-X001T	3 µs	4 µs	1.81 mOhm	70 V	100 °C	-55 °C	300 mV	1.15 V	3 µs	5 µs	300 %	3750 Vrms	DC	4-SMD Gull Wing	50 mA	Surface Mount	100 %	1	50 mA
Vishay General Semiconductor - Diodes Division SFH690DT	3 µs	4 µs	1.81 mOhm	70 V	100 °C	-55 °C	300 mV	1.15 V	3 µs	5 µs	400 %	3750 Vrms	DC	4-SMD Gull Wing	50 mA	Surface Mount	200 %	1	50 mA
Vishay General Semiconductor - Diodes Division SFH690CT-X001	3 µs	4 µs	1.81 mOhm	70 V	100 °C	-55 °C	300 mV	1.15 V	3 µs	5 µs	200 %	3750 Vrms	DC	4-SMD Gull Wing	50 mA	Surface Mount	100 %	1	50 mA

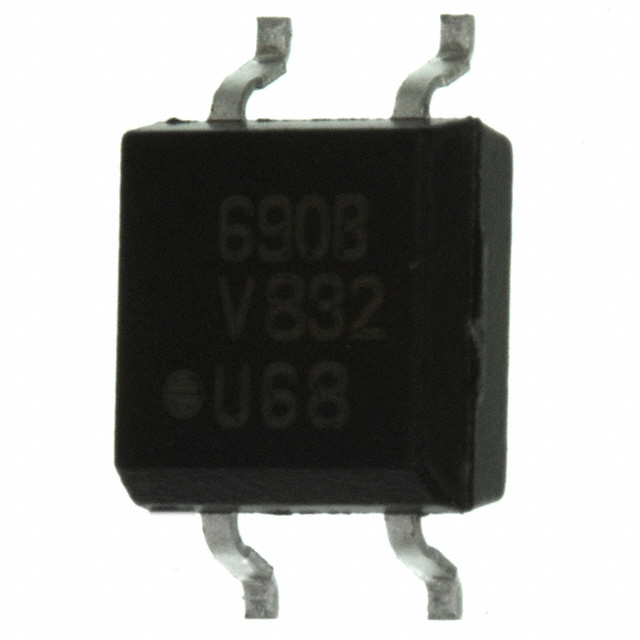

Vishay General Semiconductor - Diodes Division SFH690BT	3 µs	4 µs	1.81 mOhm	70 V	100 °C	-55 °C	300 mV	1.15 V	3 µs	5 µs	300 %	3750 Vrms	DC	4-SMD Gull Wing	50 mA	Surface Mount	100 %	1	50 mA
