745-114 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 114POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Pitch	Pitch	Card Type	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Card Thickness [Max]	Card Thickness [Min]	Contact Type	Mounting Type	Read Out	Number of Positions/Bay/Row [custom]	Gender	Number of Positions	Contact Material	Contact Finish	Color	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 745-114-545-201	Polyester Thermoplastic	2	0.1 "	2.54 mm	Non Specified - Dual Edge	2	-40 C	105 ░C	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Through Hole	Dual	57	Female	114	Copper Alloy	Gold	Black	30 Áin	0.76 Ám

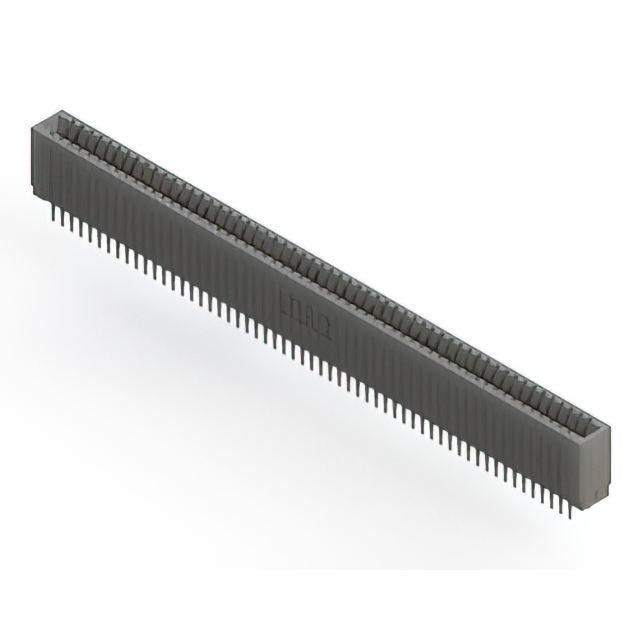

EDAC Inc. 745-114-525-201	Polyester Thermoplastic	2	0.1 "	2.54 mm	Non Specified - Dual Edge	2	-40 C	105 ░C	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Through Hole	Dual	57	Female	114	Copper Alloy	Gold	Black	30 Áin	0.76 Ám

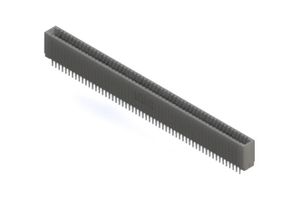

EDAC Inc. 745-114-520-201	Polyester Thermoplastic	2	0.1 "	2.54 mm	Non Specified - Dual Edge	2	-40 C	105 ░C	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Through Hole	Dual	57	Female	114	Copper Alloy	Gold	Black	30 Áin	0.76 Ám
EDAC Inc. 745-114-545-206	Polyester Thermoplastic	2	0.1 "	2.54 mm	Non Specified - Dual Edge	2	-40 C	105 ░C	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Through Hole	Dual	57	Female	114	Copper Alloy	Gold	Black	30 Áin	0.76 Ám
EDAC Inc. 745-114-541-201	Polyester Thermoplastic	2	0.1 "	2.54 mm	Non Specified - Dual Edge	2	-40 C	105 ░C	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Through Hole	Dual	57	Female	114	Copper Alloy	Gold	Black	30 Áin	0.76 Ám
EDAC Inc. 745-114-525-206	Polyester Thermoplastic	2	0.1 "	2.54 mm	Non Specified - Dual Edge	2	-40 C	105 ░C	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Through Hole	Dual	57	Female	114	Copper Alloy	Gold	Black	30 Áin	0.76 Ám
EDAC Inc. 745-114-541-206	Polyester Thermoplastic	2	0.1 "	2.54 mm	Non Specified - Dual Edge	2	-40 C	105 ░C	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Through Hole	Dual	57	Female	114	Copper Alloy	Gold	Black	30 Áin	0.76 Ám
EDAC Inc. 745-114-522-201	Polyester Thermoplastic	2	0.1 "	2.54 mm	Non Specified - Dual Edge	2	-40 C	105 ░C	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Through Hole	Dual	57	Female	114	Copper Alloy	Gold	Black	30 Áin	0.76 Ám
