A12K1 Series

Catalog

PROCESS SEALED SUBMINIATURE ROCKER

Part	Mechanical Life	Electrical Life	Current Rating (Amps)	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Voltage Rating - AC	Mounting Type	Color - Actuator/Cap	Voltage Rating - DC	Features	Switch Function	Approval Agency	Circuit	Actuator Marking
NKK Switches A12K1V-EA	100000 Cycles	50000 Cycles	0.4 VA	Concave (Curved)	85 °C	-30 ░C	PC Pin	28 V	Right Angle Through Hole Vertical	Black	28 V	Process Sealed	On-On	CSA UL	SPDT	No Marking
NKK Switches A12K1P-DA	100000 Cycles	50000 Cycles	0.4 VA	Concave (Curved)	85 °C	-30 ░C	PC Pin	28 V	Through Hole	Black	28 V	Process Sealed	On-On	CSA UL	SPDT	No Marking
NKK Switches A12K1B1-DA	100000 Cycles	50000 Cycles	0.4 VA	Concave (Curved)	85 °C	-30 ░C	PC Pin	28 V	Through Hole	Black	28 V	Process Sealed	On-On	CSA UL	SPDT	No Marking

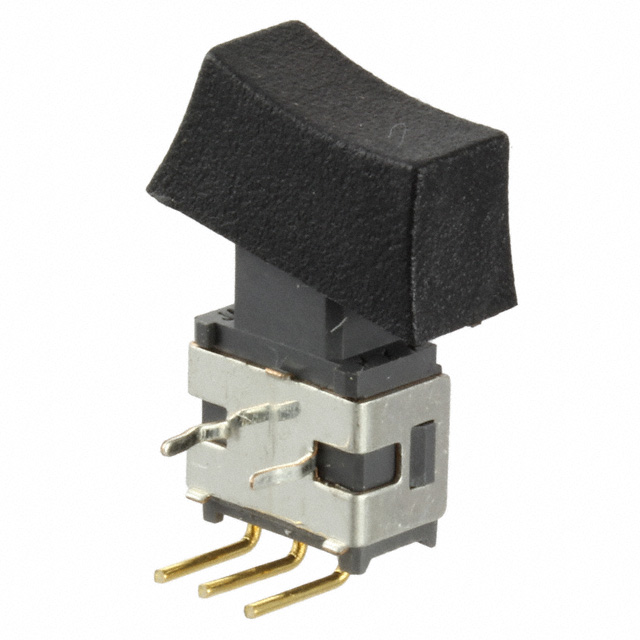

NKK Switches A12K1H-DA	100000 Cycles	50000 Cycles	0.4 VA	Concave (Curved)	85 °C	-30 ░C	PC Pin	28 V	Right Angle Through Hole	Black	28 V	Process Sealed	On-On	CSA UL	SPDT	No Marking
NKK Switches A12K1B-EA	100000 Cycles	50000 Cycles	0.4 VA	Concave (Curved)	85 °C	-30 ░C	PC Pin	28 V	Through Hole	Black	28 V	Process Sealed	On-On	CSA UL	SPDT	No Marking
NKK Switches A12K1W	100000 Cycles	50000 Cycles	0.4 VA	Actuator Arm Cap Required	85 °C	-30 ░C	Wire Wrap	28 V	Through Hole		28 V	Process Sealed	On-On	CSA UL	SPDT	No Marking
NKK Switches A12K1V	100000 Cycles	50000 Cycles	0.4 VA	Actuator Arm Cap Required	85 °C	-30 ░C	PC Pin	28 V	Right Angle Through Hole Vertical		28 V	Process Sealed	On-On	CSA UL	SPDT	No Marking

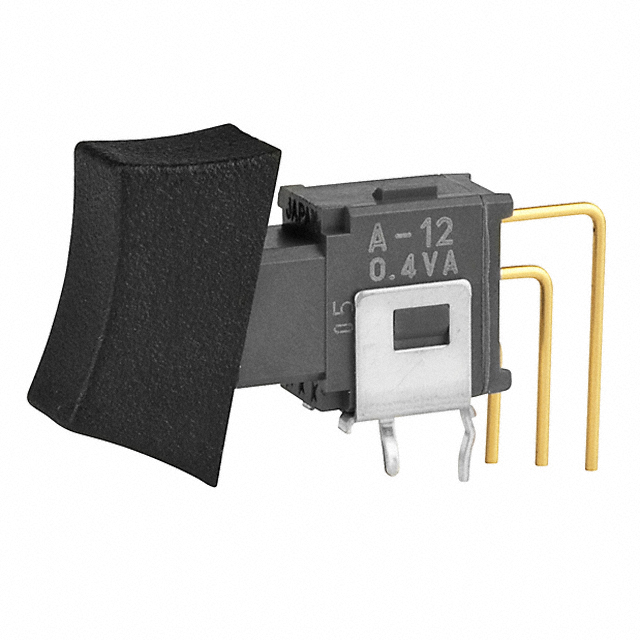

NKK Switches A12K1V1-DA	100000 Cycles	50000 Cycles	0.4 VA	Concave (Curved)	85 °C	-30 ░C	PC Pin	28 V	Right Angle Through Hole Vertical	Black	28 V	Process Sealed	On-On	CSA UL	SPDT	No Marking
NKK Switches A12K1B-DA	100000 Cycles	50000 Cycles	0.4 VA	Concave (Curved)	85 °C	-30 ░C	PC Pin	28 V	Through Hole	Black	28 V	Process Sealed	On-On	CSA UL	SPDT	No Marking
NKK Switches A12K1H-DB	100000 Cycles	50000 Cycles	0.4 VA	Concave (Curved)	85 °C	-30 ░C	PC Pin	28 V	Right Angle Through Hole	White	28 V	Process Sealed	On-On	CSA UL	SPDT	No Marking
