NCP51460 Series

Preciscion Voltage Reference, 20 mA, Low Iq, High PSRR, Low Noise

Catalog

Preciscion Voltage Reference, 20 mA, Low Iq, High PSRR, Low Noise

Part	Utilized IC / Part	Supplied Contents	Function	Type	Output Type	Supplier Device Package	Noise - 0.1Hz to 10Hz	Noise - 10Hz to 10kHz	Reference Type	Current - Supply	Package / Case	Voltage - Output (Min/Fixed)	Operating Temperature [Max]	Operating Temperature [Min]	Temperature Coefficient	Voltage - Input [Max]	Voltage - Input [Min]	Tolerance	Mounting Type	Current - Output

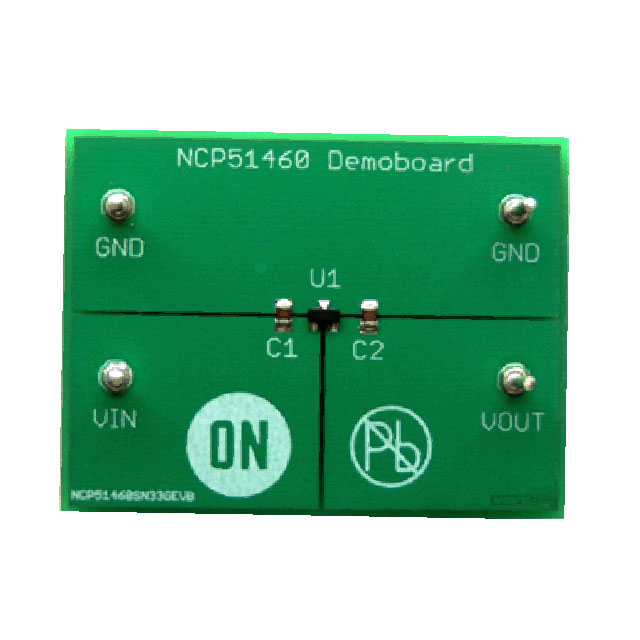

ON Semiconductor NCP51460SN33GEVB	NCP51460	Board(s)	Voltage Reference	Power Management
ON Semiconductor NCP51460SN33T1G					1.81 mOhm	SOT-23-3 (TO-236)	12 µVp-p	18 µVrms	Series	220 µA	SC-59 SOT-23-3 TO-236-3	3.3 V	100 °C	0 °C	18 ppm/°C	28 V	4.2 V	1 %	Surface Mount	20 mA

Catalog

Preciscion Voltage Reference, 20 mA, Low Iq, High PSRR, Low Noise

Key Features

• Operating Input Voltage VIN4.2 V to 28 V

• Output Current Capability of 0 to 20 mA

• Output Voltage Temperature Coefficient of 18 ppm/C

• Output Voltage Accuracy 1 %, for 0 °C TA100 °C

• High PSRR of 68 dB at 1 kHz

• Stable Without Output Capacitor

• Low Quiescent Current of 140 µA

• Low Output Noise of 18 µVRMS

• Output Voltage Option: 3.3V

Description

The NCP51460 is a high performance, low power precision voltage reference. It can supply output current up to 20 mA at a 3.3 V fixed output voltage. Excellent line and load regulation characteristics, very good PSRR, low Output Noise and low Quiescent Current makes the NCP51460 ideal for precision regulator applications.The device is designed to be stable without an output capacitor. This feature makes the device ideal for space constrained applications. An optional output capacitor may be added to improve the load transient response.Protective features include Short Circuit and Reverse Input Voltage Protection. In the case of reverse input voltage connection the reference will not conduct any current protecting the device from damage.The NCP51460 is packaged in a 3-lead surface mount SOT-23 package.
