LB16CKW01 Series

Catalog

STANDARD SIZE PANEL SEAL PUSHBUTTON

Part	Mechanical Life	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Illumination Voltage (Nominal)	Mounting Type	Current Rating (Amps)	Voltage Rating - AC	Voltage Rating - DC	Actuator Marking	Actuator Type	Circuit	Illumination Type, Color	Switch Function	Termination Style	Type	Color - Actuator/Cap

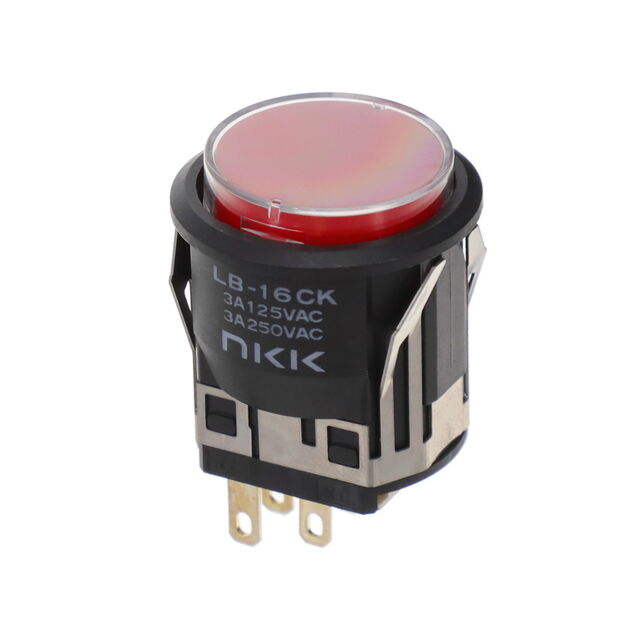

NKK Switches LB16CKW01-1C-A	200000 Cycles	100000 Cycles	50 °C	-25 °C	22 mm	1.9 VDC	Panel Mount Snap-In	3 A	125 V	30 V	No Marking	Button Round	SPDT	LED Red	On-On	Solder Quick Connect - 0.110" (2.8mm)	Illuminated Standard	Black
NKK Switches LB16CKW01-C	200000 Cycles	100000 Cycles	70 °C	-25 °C	22 mm		Panel Mount Snap-In	3 A	125 V	30 V	No Marking	Button Round	SPDT		On-On	Solder Quick Connect - 0.110" (2.8mm)	Standard	Red

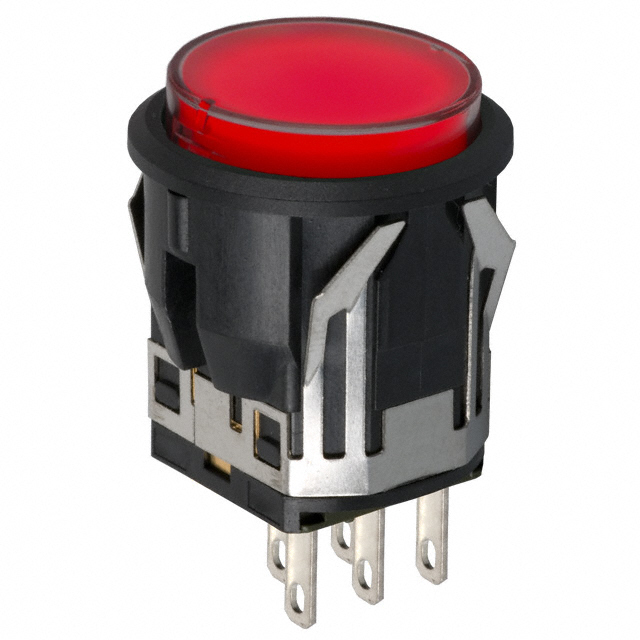

NKK Switches LB16CKW01-5C-JB	200000 Cycles	100000 Cycles	50 °C	-25 °C	22 mm	1.9 VDC	Panel Mount Snap-In	3 A	125 V	30 V	No Marking	Button Round	SPDT	LED Red	On-On	Solder Quick Connect - 0.110" (2.8mm)	Illuminated Standard	Clear
NKK Switches LB16CKW01-6B-JB	200000 Cycles	100000 Cycles	50 °C	-25 °C	22 mm	3.3 VDC	Panel Mount Snap-In	3 A	125 V	30 V	No Marking	Button Round	SPDT	LED White	On-On	Solder Quick Connect - 0.110" (2.8mm)	Illuminated Standard	Clear
NKK Switches LB16CKW01-6F-JB	200000 Cycles	100000 Cycles	50 °C	-25 °C	22 mm	3.3 VDC	Panel Mount Snap-In	3 A	125 V	30 V	No Marking	Button Round	SPDT	Green LED	On-On	Solder Quick Connect - 0.110" (2.8mm)	Illuminated Standard	Clear
NKK Switches LB16CKW01-5C12-JC	200000 Cycles	100000 Cycles	50 °C	-25 °C	22 mm	12 VDC	Panel Mount Snap-In	3 A	125 V	30 V	No Marking	Button Round	SPDT	LED Red	On-On	Solder Quick Connect - 0.110" (2.8mm)	Illuminated Standard	Clear
NKK Switches LB16CKW01-1F-A	200000 Cycles	100000 Cycles	50 °C	-25 °C	22 mm	2.1 VDC	Panel Mount Snap-In	3 A	125 V	30 V	No Marking	Button Round	SPDT	Green LED	On-On	Solder Quick Connect - 0.110" (2.8mm)	Illuminated Standard	Black
NKK Switches LB16CKW01-5C-JC	200000 Cycles	100000 Cycles	50 °C	-25 °C	22 mm	1.9 VDC	Panel Mount Snap-In	3 A	125 V	30 V	No Marking	Button Round	SPDT	LED Red	On-On	Solder Quick Connect - 0.110" (2.8mm)	Illuminated Standard	Clear
NKK Switches LB16CKW01-01-JE	200000 Cycles	100000 Cycles	50 °C	-25 °C	22 mm	110 VAC	Panel Mount Snap-In	3 A	125 V	30 V	No Marking	Button Round	SPDT	Neon Yellow	On-On	Solder Quick Connect - 0.110" (2.8mm)	Illuminated Standard	Clear
NKK Switches LB16CKW01-B	200000 Cycles	100000 Cycles	70 °C	-25 °C	22 mm		Panel Mount Snap-In	3 A	125 V	30 V	No Marking	Button Round	SPDT		On-On	Solder Quick Connect - 0.110" (2.8mm)	Standard	White
