AN Series

Electrical Enclosures Aluminum Enclosure with Mounting Flanges Black (2.5 X 2.3 X 1.4 In)

Catalog

Electrical Enclosures Aluminum Enclosure with Mounting Flanges Black (2.5 X 2.3 X 1.4 In)

Part	Weight [custom]	Weight [custom]	Height	Height	Features	Thickness	Thickness	Ratings	Color	Area (L x W)	Area (L x W)	Material	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Design	Container Type	Height [z]	Height [z]	Size / Dimension [x]	Size / Dimension [y]
BUD INDUSTRIES AN-2867-AB	185.52 g	0.409 lb	3.19 in	81.03 mm	Mounting Flange PCB Supports Watertight	0.098 in	2.49 mm	12 13 6 6P IP68 NEMA 4X	Black	160 cm²	24.8 in²	Aluminum Metal	6.3 in	3.94 in	100.08 mm	160.02 mm	Cover Included	Box
BUD INDUSTRIES AN-2866-AB					Mounting Flange PCB Supports Watertight	0.098 in	2.49 mm	12 13 6 6P IP68 NEMA 4X	Black	160 cm²	24.8 in²	Aluminum Metal	6.3 in	3.94 in	100.08 mm	160.02 mm	Cover Included	Box	60 mm	2.362 in

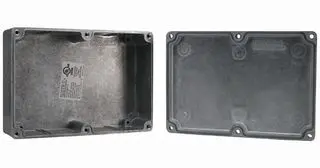

BUD INDUSTRIES AN-1306-A					Card Guides PCB Supports Watertight	0.13 in	3.3 mm	12 13 6 6P IP68 NEMA 4X	Natural	203 cm²	31.4 in²	Aluminum Metal	6.73 in	4.67 in	118.62 mm	170.94 mm	Cover Included	Box	55.12 mm	2.17 "
BUD INDUSTRIES AN-2853-AB					Mounting Flange PCB Supports Watertight	0.13 in	3.3 mm	12 13 6 6P IP68 NEMA 4X	Black	75 cm²	11.7 in²	Aluminum Metal	4.53 "	2.56 in	65.02 mm	115.06 mm	Cover Included	Box	55.12 mm	2.17 "
BUD INDUSTRIES AN-2810-A			101.6 mm	101.6 mm	Card Guides Mounting Flange PCB Supports Watertight	0.13 in	3.3 mm	12 13 6 6P IP68 NEMA 4X	Natural			Aluminum Metal			158.75 mm	158.75 mm	Cover Included	Box			6.25 in	6.25 in

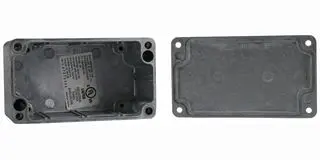

BUD INDUSTRIES AN-1303-A					Card Guides PCB Supports Watertight	0.13 in	3.3 mm	12 13 6 6P IP68 NEMA 4X	Natural	75 cm²	11.7 in²	Aluminum Metal	4.545 in	2.578 in	65.48 mm	115.44 mm	Cover Included	Box	55 mm	2.165 in

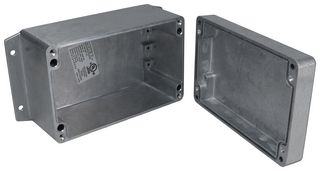

BUD INDUSTRIES AN-2867-A			3.19 in	81.03 mm	Mounting Flange PCB Supports Watertight	0.098 in	2.49 mm	12 13 6 6P IP68 NEMA 4X	Natural	160 cm²	24.8 in²	Aluminum Metal	6.3 in	3.94 in	100.08 mm	160.02 mm	Cover Included	Box
BUD INDUSTRIES AN-1318-A					PCB Supports Watertight	0.06 in	1.52 mm	12 13 6 6P IP68 NEMA 4X	Natural	22.8 cm²	3.53 in²	Aluminum Metal	2.19 in	1.61 in	40.89 mm	55.63 mm	Cover Included	Box	30.99 mm	1.22 in
BUD INDUSTRIES AN-2809-A			101.6 mm	101.6 mm	Card Guides Mounting Flange PCB Supports Watertight	0.13 in	3.3 mm	12 13 6 6P IP68 NEMA 4X	Natural	146 cm²	22.6 in²	Aluminum Metal	4.75 in	4.75 "	120.65 mm	120.65 mm	Cover Included	Box
BUD INDUSTRIES AN-2822-AB					Mounting Flange PCB Supports Watertight	0.07 in	1.78 mm	12 13 6 6P IP68 NEMA 4X	Black	217 cm²	33.6 in²	Aluminum Metal	7.87 in	4.27 in	108.46 mm	199.9 mm	Cover Included	Box	74.93 mm	2.95 in
