82-6152 Series

Manufacturer: EAO

Catalog

MULTICOLOUR PANEL INDICATORS, RED, GREEN, 22.3 MM, R 7MA, G 7MA, R 24V, G 24V, IP65, IP67

Part	Termination Style	Ratings	Lens Color	Voltage	Lens Size [diameter]	Ingress Protection	Current	Panel Cutout Shape	Panel Cutout Dimensions	Panel Cutout Dimensions	Type	Mounting Type	Voltage Rating - DC	Electrical Life	Voltage Rating - AC	Illumination Voltage (Nominal)	Switch Function	Illumination Type, Color	Color - Actuator/Cap	Mechanical Life	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Marking	Circuit	Actuator Type	Current Rating (Amps)	Lamp Color
EAO 82-6152.02A4	Solder Lug	DC	Colorless	24 V	25 mm	IP65 IP67	7 mA	Round	0.88 in	22.3 mm	LED

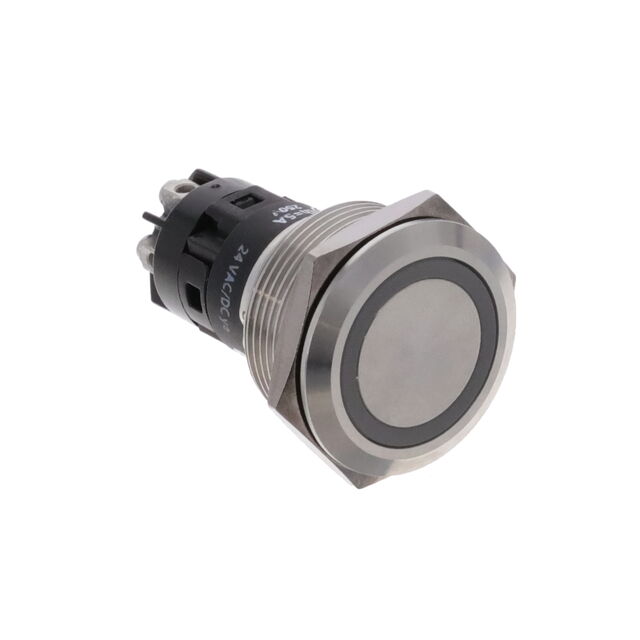

EAO 82-6152.1144	Screw Terminal					IP65 IP67					Illuminated Standard	Panel Mount Front	240 V	50000 Cycles	240 V	24 VAC/DC	On-Mom	LED Yellow	Silver	1000000 Cycles	22.3 mm	70 °C	-30 ░C	No Marking	SPDT	Button Flush Round	3 A
EAO 82-6152.1142	Screw Terminal					IP65 IP67					Illuminated Standard	Panel Mount Front	240 V	50000 Cycles	240 V	6 VAC/DC	On-Mom	LED Yellow	Silver	1000000 Cycles	22.3 mm	70 °C	-30 ░C	No Marking	SPDT	Button Flush Round	3 A
EAO 82-6152.0134	Solder Lug	AC/DC	Colorless	24 V	25 mm	IP65 IP67	7 mA	Round	0.88 in	22.3 mm	LED																	Green
EAO 82-6152.22A4	Screw Terminal					IP65 IP67					Illuminated Standard	Panel Mount Front	240 V	50000 Cycles	240 V	24 VAC/DC	On-On	Green/Red LED	Silver	500000 Cycles	22.3 mm	70 °C	-30 ░C	No Marking	SPDT	Button Flush Round	3 A
EAO 82-6152.11A4	Screw Terminal					IP65 IP67					Illuminated Standard	Panel Mount Front	240 V	50000 Cycles	240 V	24 VAC/DC	On-Mom	Green/Red LED	Silver	1000000 Cycles	22.3 mm	70 °C	-30 ░C	No Marking	SPDT	Button Flush Round	3 A
