PHH227M Series
Manufacturer: KEMET
Beta
⌘K

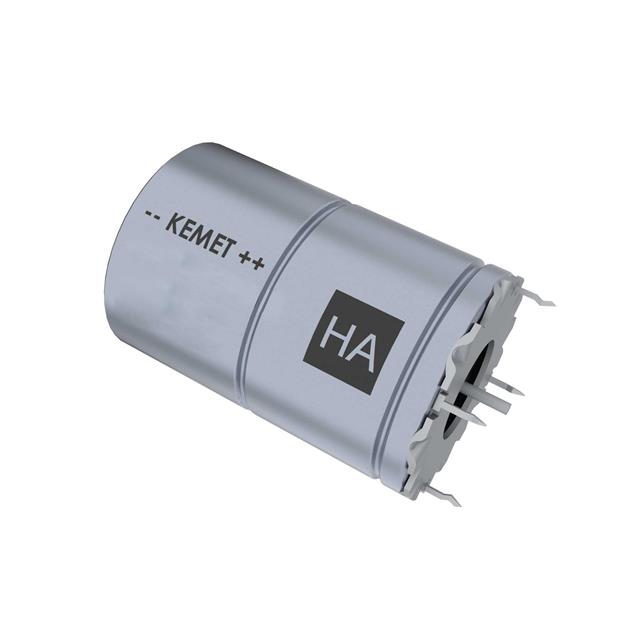

HYBRID ALUMINIUM ELECTROLYTIC CAPACITOR, 1100 ΜF, ± 20%, 63 V, RADIAL LEADED, 0.006 OHM
| Part | Type | Tolerance | Ripple Current @ Low Frequency | Features | Ripple Current @ High Frequency | Operating Temperature [Max] | Operating Temperature [Min] | Lifetime @ Temp. | ESR (Equivalent Series Resistance) | Capacitance | Lead Spacing | Lead Spacing | Ratings | Size / Dimension [diameter] | Size / Dimension [diameter] | Applications | Mounting Type | Voltage - Rated | Package / Case | Height - Seated (Max) [Max] | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | Hybrid | 20 % | 7.3 A | High Vibration | 36.5 A | 125 °C | -40 C | 3000 Hrs | 100 mOhms | 1100 µF | 0.6 in | 15.24 mm | AEC-Q200 | 18.2 mm | 0.717 " | Automotive | Through Hole | 63 V | Can Radial | 1.445 in | 36.7 mm |
 KEMET | Hybrid | 20 % | 6.98 A | High Vibration | 34.9 A | 125 °C | -40 C | 3000 Hrs | 145 mOhm | 780 µF | 0.6 in | 15.24 mm | AEC-Q200 | 16.2 mm | 0.638 in | Automotive | Through Hole | 63 V | Can Radial | 1.445 in | 36.7 mm |
