FKY1113 Series
Manufacturer: Stanley Electric Co
Beta
⌘K

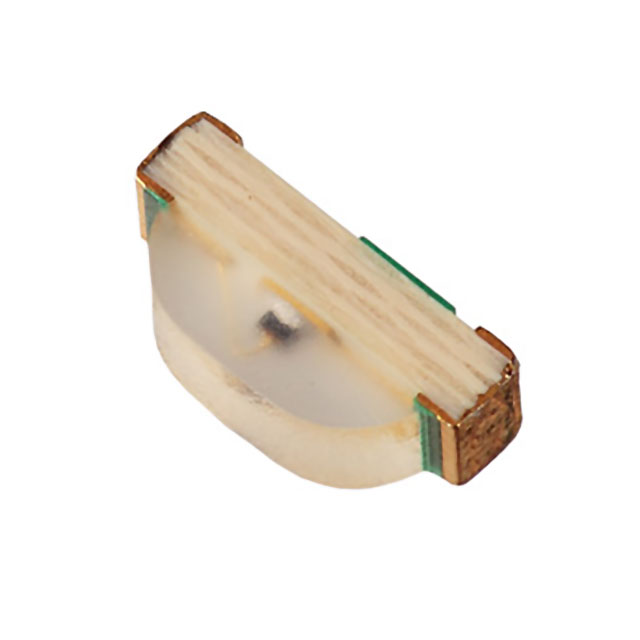

LED YELLOW DIFFUSED SMD R/A
| Part | Configuration | Color | Voltage - Forward (Vf) (Typ) | Wavelength - Peak | Lens Style | Current - Test | Lens Transparency | Lens Size [y] | Lens Size [x] | Height (Max) [z] | Lens Color | Package / Case | Millicandela Rating | Mounting Type | Size / Dimension [y] | Size / Dimension [x] | Wavelength - Dominant |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Stanley Electric Co | Standard | Yellow | 2.1 V | 592 nm | Rectangle with Domed Top | 20 mA | Diffused | 0.6 mm | 1.7 mm | 0.7 mm | White | 2-SMD No Lead | 270 mcd | Right Angle Surface Mount | 1 mm | 2.1 mm | 589 nm |
