ZW50F Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

MICROSWITCH, MEDICAL, SUBMINIATURE, SIMULATED ROLLER LEVER, SPDT, WIRE LEADED, 5 A

Part	Pretravel	Pretravel	Operating Position	Operating Position	Operating Force	Current Rating (Amps)	Electrical Life	Voltage Rating - AC	Overtravel [custom]	Overtravel [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Ingress Protection	Release Force	Termination Style	Differential Travel	Differential Travel	Mechanical Life	Circuit	Actuator Type	Mounting Type

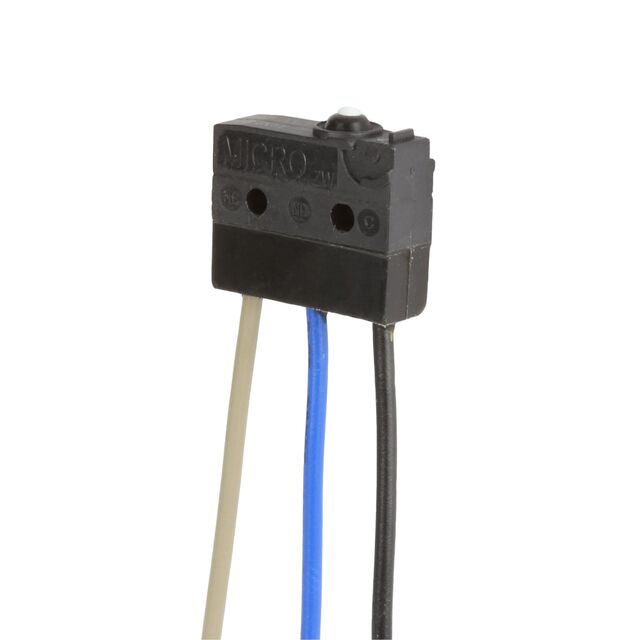

Honeywell Sensing and Productivity Solutions ZW50F90AW1	1.2 mm	0.047 in	0.33 in	8.4 mm	203 gf	5 A	10000 Cycles	125 V	0.025 in	0.6 mm	-40 C	105 ░C	On-Mom	IP67 - Dust Tight Waterproof	50 gf	Wire Leads	0.2 mm	0.008 in	1000000 Cycles	SPDT	Round (Pin Plunger)	Chassis Mount
Honeywell Sensing and Productivity Solutions ZW50F99CW1-B	4.8 mm	0.188 in	0.345 in	8.8 mm	66 gf	5 A	10000 Cycles	125 V	0.039 "	1 mm	-40 C	105 ░C	On-Mom	IP67 - Dust Tight Waterproof	13 gf	Wire Leads	0.7 mm	0.028 in	1000000 Cycles	SPDT	Lever Straight	Chassis Mount
Honeywell Sensing and Productivity Solutions ZW50F90CW3	4.8 mm	0.188 in	0.345 in	8.8 mm	66 gf	5 A	10000 Cycles	125 V	0.039 "	1 mm	-40 C	105 ░C	Off-Mom	IP67 - Dust Tight Waterproof	13 gf	Wire Leads	0.7 mm	0.027 in	2000000 Cycles	SPST-NO	Lever Straight	Chassis Mount
Honeywell Sensing and Productivity Solutions ZW50F91HW1	4.6 mm	0.18 in			95 gf	5 A	10000 Cycles	125 V	0.039 "	1 mm	-40 C	105 ░C	On-Mom	IP67 - Dust Tight Waterproof	19 gf	Wire Leads	0.65 mm	0.026 in	2000000 Cycles	SPDT	Lever Simulated Roller	Chassis Mount

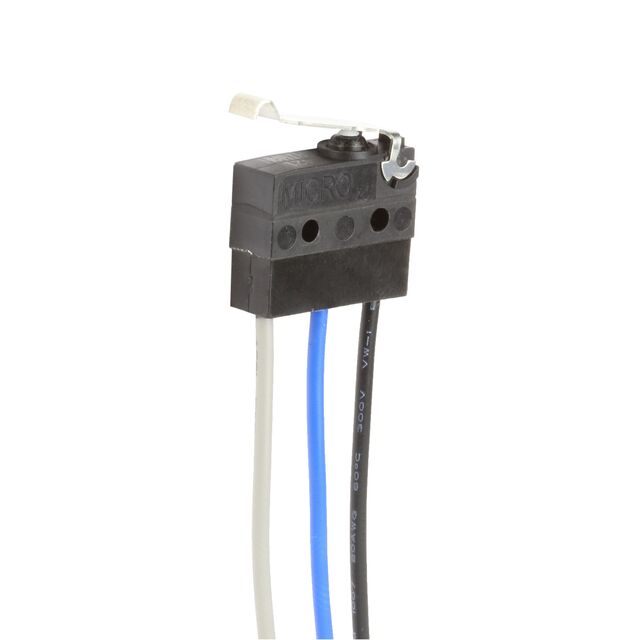

Honeywell Sensing and Productivity Solutions ZW50F90HW1	4.6 mm	0.18 in			95 gf	5 A	10000 Cycles	125 V	0.039 "	1 mm	-40 C	105 ░C	On-Mom	IP67 - Dust Tight Waterproof	19 gf	Wire Leads	0.65 mm	0.026 in	2000000 Cycles	SPDT	Lever Simulated Roller	Chassis Mount
Honeywell Sensing and Productivity Solutions ZW50F92AW3	1.2 mm	0.047 in	0.33 in	8.4 mm	203 gf	5 A	10000 Cycles	125 V	0.025 in	0.6 mm	-40 C	105 ░C	Off-Mom	IP67 - Dust Tight Waterproof	50 gf	Wire Leads	0.2 mm	0.008 in	1000000 Cycles	SPST-NO	Round (Pin Plunger)	Chassis Mount
