RFN-1046 Series
Manufacturer: RF Industries
Beta
⌘K

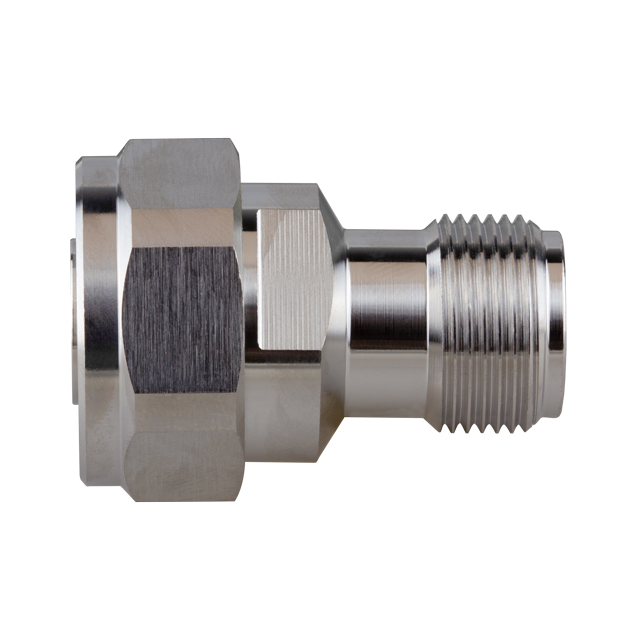

N FEMALE-4.1/9.5 MALE
| Part | Body Finish | Mating Cycles | Dielectric Material | Center Contact Material | Insertion Loss | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Conversion Type | Convert From (Adapter End) | Center Contact Plating | Convert To (Adapter End) | Style | Mounting Type | Adapter Series | Frequency - Max [Max] | Impedance | Adapter Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 RF Industries | White Bronze | 500 | Polytetrafluoroethylene (PTFE) | Phosphor Bronze | 0.05 dB | Brass | -55 C | 85 °C | Between Series | 4.1/9.5 Plug Male Pin | Silver | N Jack Female Socket | Straight | Free Hanging (In-Line) | N to 4.1/9.5 | 7.5 GHz | 50 Ohms | Plug to Jack |
