895-042 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 42POS 0.100

...

Part	Termination Rows [custom]	Material - Insulation	Pitch	Pitch	Contact Finish	Card Type	Read Out	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Mounting Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Gender	Contact Material	Color	Termination	Card Thickness [Max]	Card Thickness [Min]	Number of Rows [custom]	Number of Positions/Bay/Row [custom]	Contact Finish Thickness	Contact Finish Thickness	Termination Rows	Number of Rows	Number of Positions/Bay/Row	Features

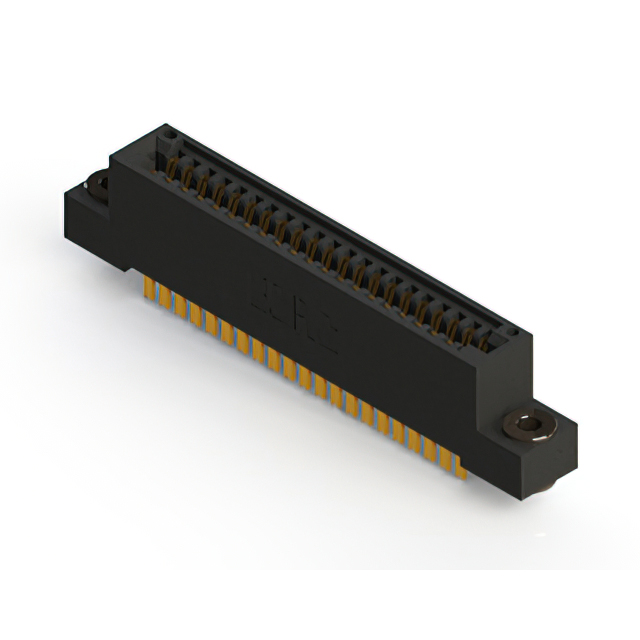

EDAC Inc. 895-042-500-203	2	Polyphenylene Sulfide (PPS)	0.1 "	2.54 mm	Gold	Non Specified - Dual Edge	Dual	Cantilever	125 °C	-40 C	42	Through Hole	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Female	Copper Alloy	Black	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	2	21	0.25 Ám	10 Áin

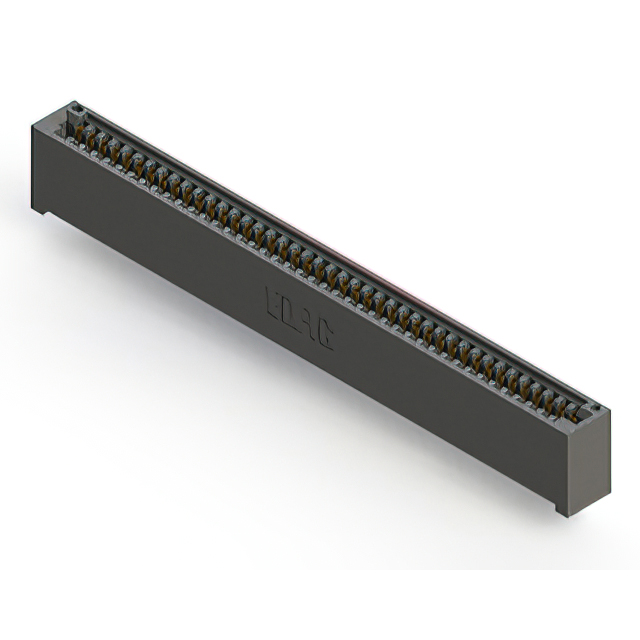

EDAC Inc. 895-042-520-101		Polyphenylene Sulfide (PPS)	0.1 "	2.54 mm	Gold	Non Specified - Single Edge	Single	Cantilever	125 °C	-40 C	42	Through Hole				Female	Copper Alloy	Black	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm			0.25 Ám	10 Áin	1	1	42

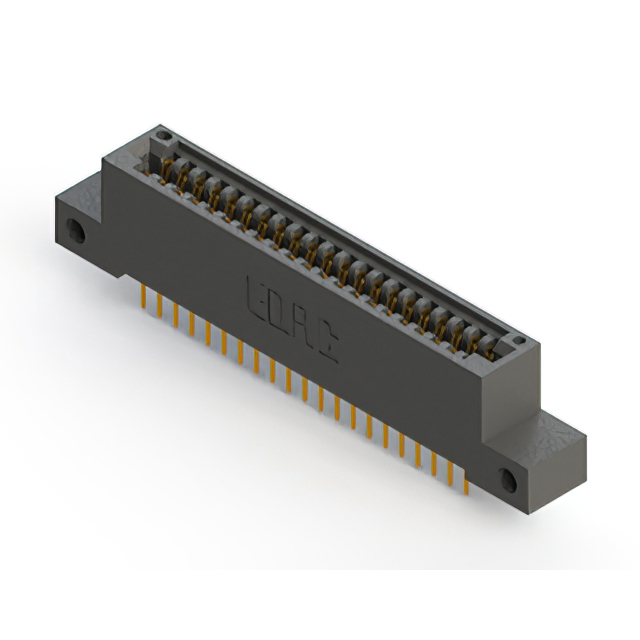

EDAC Inc. 895-042-524-212	2	Polyphenylene Sulfide (PPS)	0.1 "	2.54 mm	Gold	Non Specified - Dual Edge	Dual	Cantilever	125 °C	-40 C	42	Through Hole	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	Female	Copper Alloy	Black	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	2	21	0.25 Ám	10 Áin

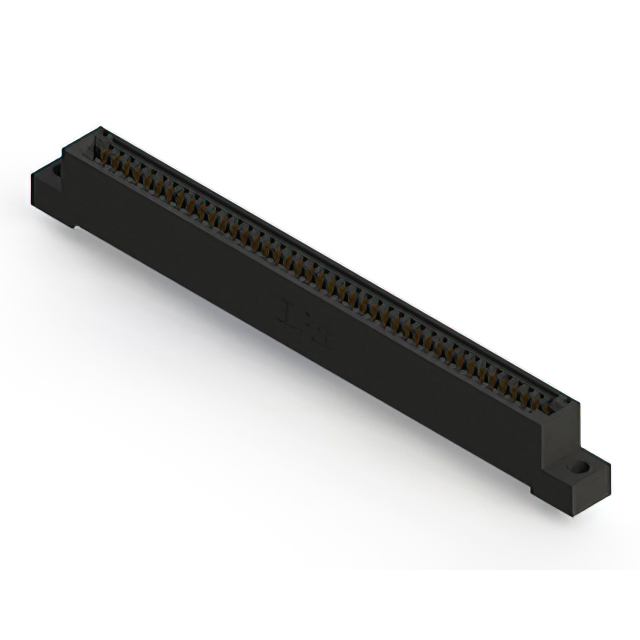

EDAC Inc. 895-042-525-104		Polyphenylene Sulfide (PPS)	0.1 "	2.54 mm	Gold	Non Specified - Single Edge	Single	Cantilever	125 °C	-40 C	42	Through Hole	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm	Female	Copper Alloy	Black	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm			0.25 Ám	10 Áin	1	1	42
EDAC Inc. 895-042-525-407		Polyphenylene Sulfide (PPS)	0.1 "	2.54 mm	Gold	Non Specified - Single Edge	Single	Cantilever	125 °C	-40 C	42	Through Hole		M3 Threaded Insert Top Mount Opening		Female	Copper Alloy	Black	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm			0.25 Ám	10 Áin	1	1	42

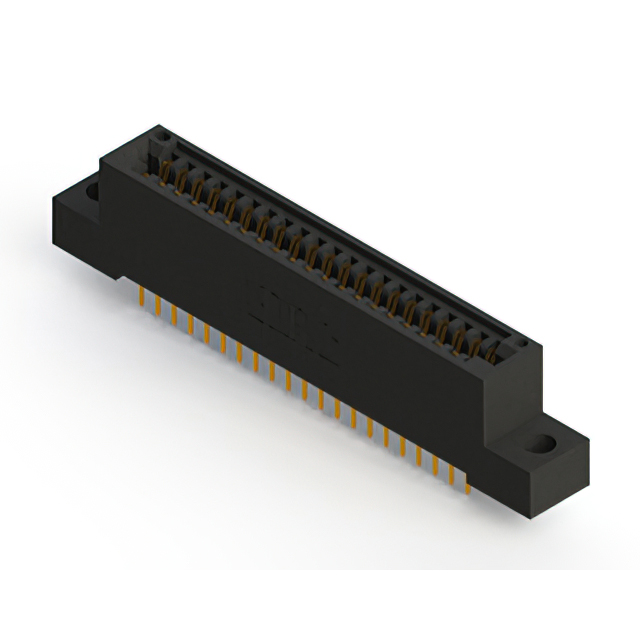

EDAC Inc. 895-042-525-204	2	Polyphenylene Sulfide (PPS)	0.1 "	2.54 mm	Gold	Non Specified - Dual Edge	Dual	Cantilever	125 °C	-40 C	42	Through Hole	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm	Female	Copper Alloy	Black	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	2	21	0.25 Ám	10 Áin

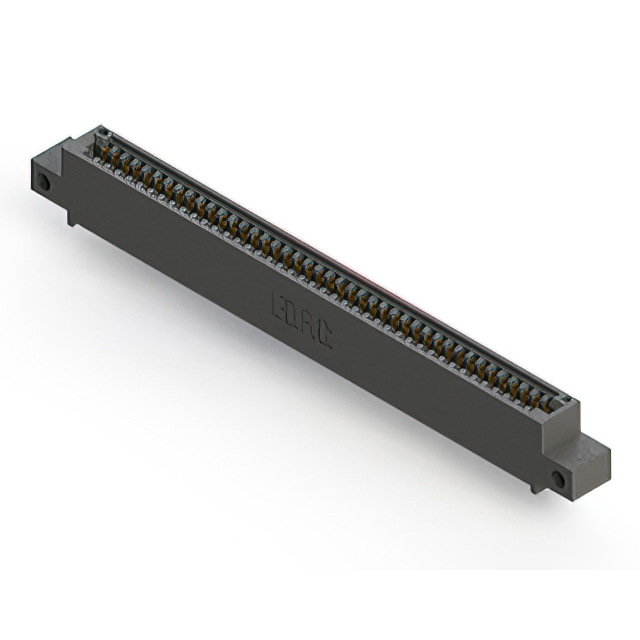

EDAC Inc. 895-042-524-412		Polyphenylene Sulfide (PPS)	0.1 "	2.54 mm	Gold	Non Specified - Single Edge	Single	Cantilever	125 °C	-40 C	42	Through Hole	0.128 "	Side Mount Opening Unthreaded	3.25 mm	Female	Copper Alloy	Black	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm			0.25 Ám	10 Áin	1	1	42

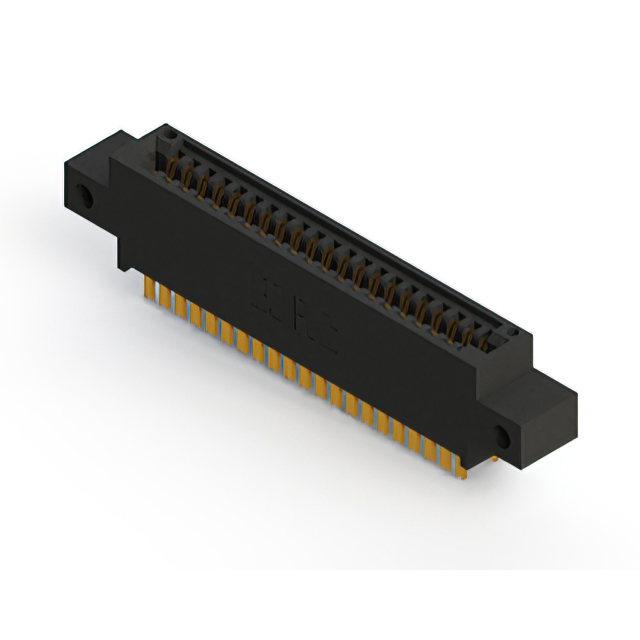

EDAC Inc. 895-042-500-812	2	Polyphenylene Sulfide (PPS)	0.1 "	2.54 mm	Gold	Non Specified - Dual Edge	Dual	Cantilever	125 °C	-40 C	42	Through Hole	0.128 "	Side Mount Opening Unthreaded	3.25 mm	Female	Copper Alloy	Black	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	2	21	0.25 Ám	10 Áin

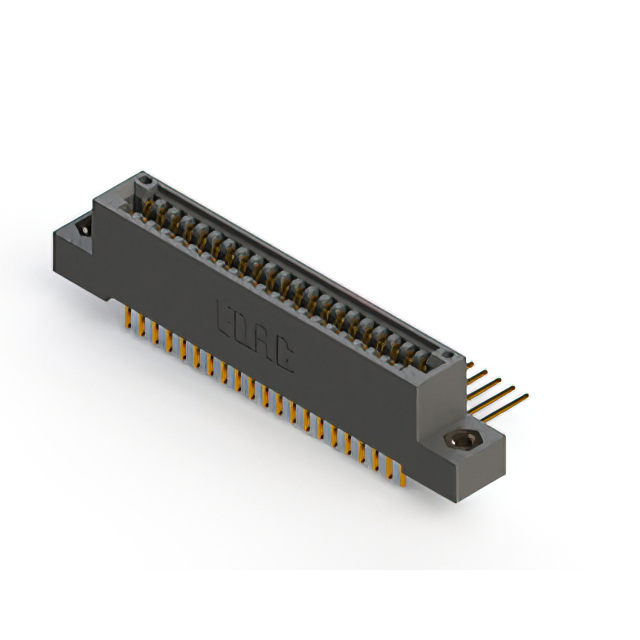

EDAC Inc. 895-042-558-208	2	Polyphenylene Sulfide (PPS)	0.1 "	2.54 mm	Gold	Non Specified - Dual Edge	Dual	Cantilever	125 °C	-40 C	42	Right Angle Through Hole		4-40 Flush Mount Threaded Insert Top Opening		Female	Copper Alloy	Black	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	2	21	0.25 Ám	10 Áin

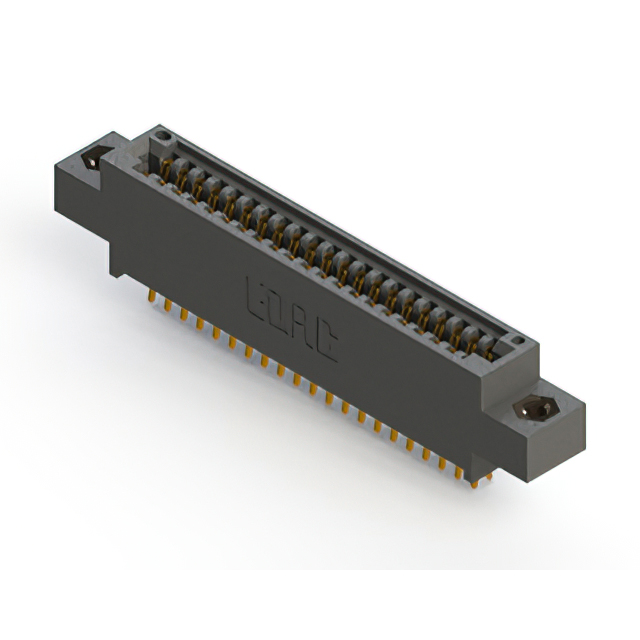

EDAC Inc. 895-042-556-808	2	Polyphenylene Sulfide (PPS)	0.1 "	2.54 mm	Gold	Non Specified - Dual Edge	Dual	Cantilever	125 °C	-40 C	42	Board Edge Straddle Mount		4-40 Threaded Insert Top Mount Opening		Female	Copper Alloy	Black	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	2	21	0.25 Ám	10 Áin				Card Extender
