1744427 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
CONN HEADER VERT 6POS 3.96MM
| Part | Termination | Style | Mounting Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Voltage Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Features | Contact Type | Overall Contact Length | Overall Contact Length | Contact Length - Mating | Contact Length - Mating | Insulation Material | Contact Finish - Post | Number of Rows | Contact Shape | Contact Length - Post | Contact Length - Post | Fastening Type | Number of Positions | Shrouding | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Current Rating (Amps) | Insulation Height | Insulation Height | Number of Positions Loaded | Connector Type | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

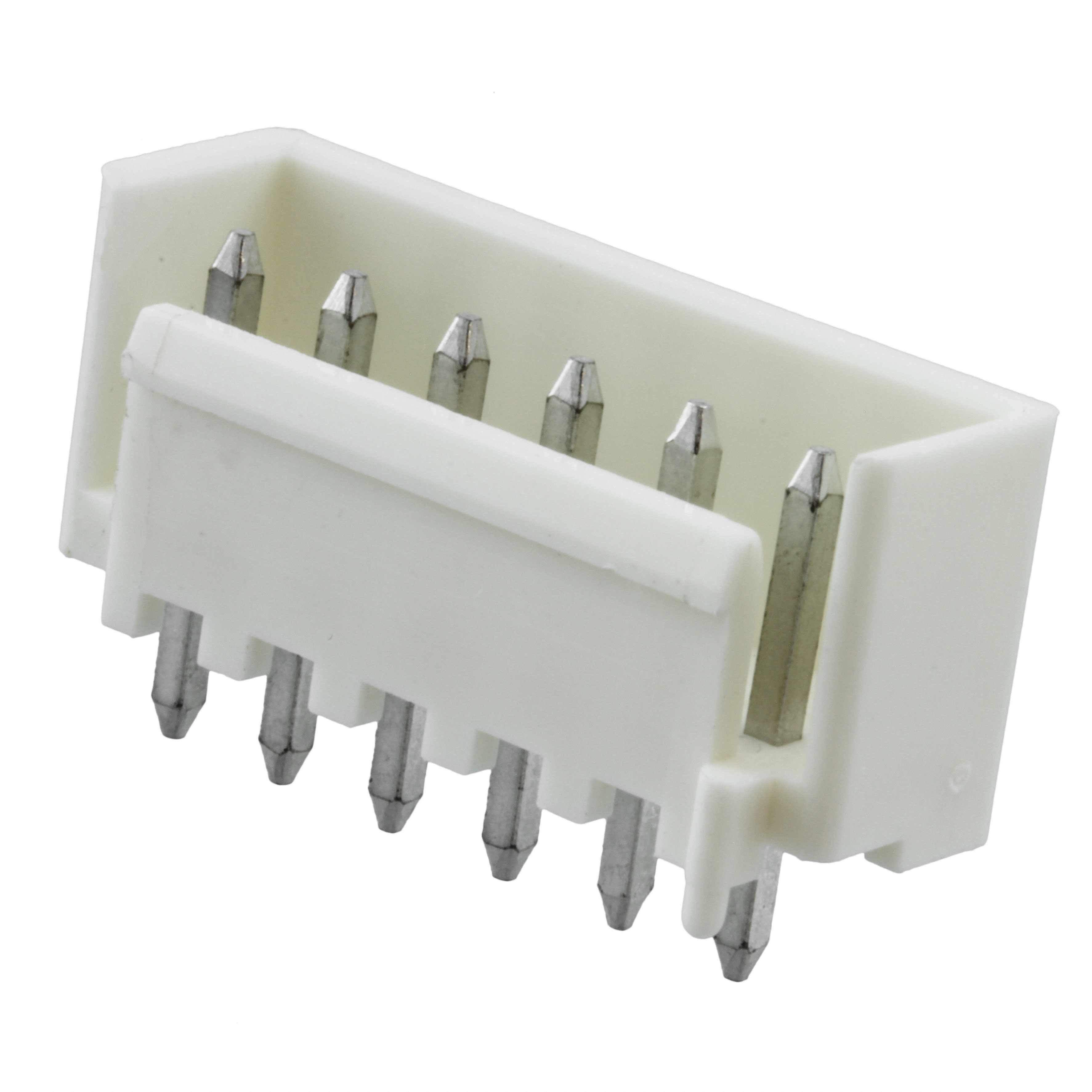

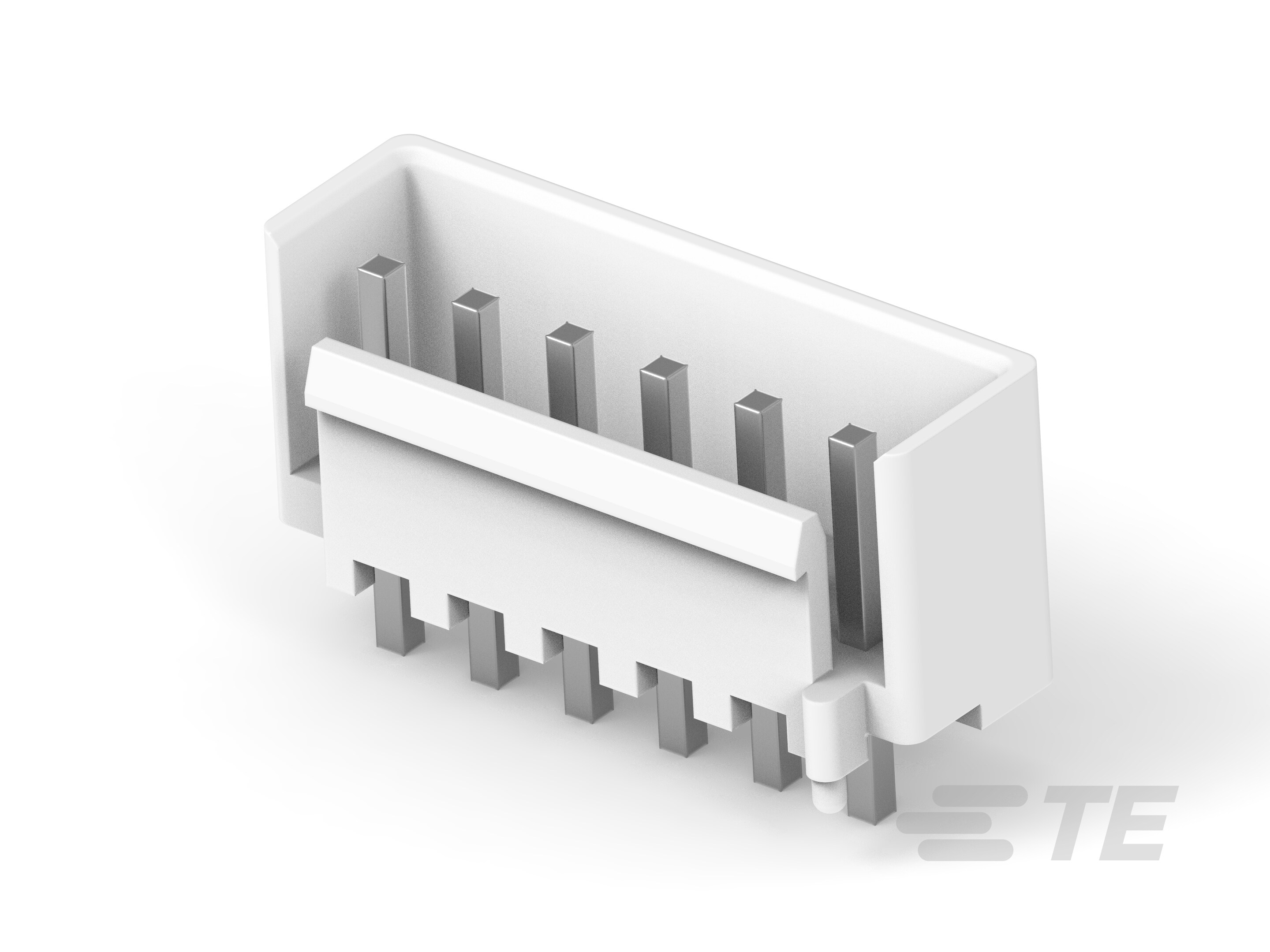

 TE Connectivity Raychem Cable Protection | Solder | Board to Cable/Wire | Through Hole | 1 çm | 39.4 çin | 250 VAC | 1 µm | 39.4 µin | Brass | Board Guide Glow Wire Compliant | Male Pin | 14.4 mm | 0.567 " | 0.306 in | 7.77 mm | Glass Filled Nylon Polyamide (PA) | Tin | 1 | Square | 3.6 mm | 0.142 in | Locking Ramp | 6 | Shrouded - 4 Wall | 0.156 in | 3.96 mm | -30 ░C | 105 ░C | UL94 V-2 | Varies by Wire Gauge | 0.472 in | 12 mm | All | Header | General Purpose Industrial Lighting |

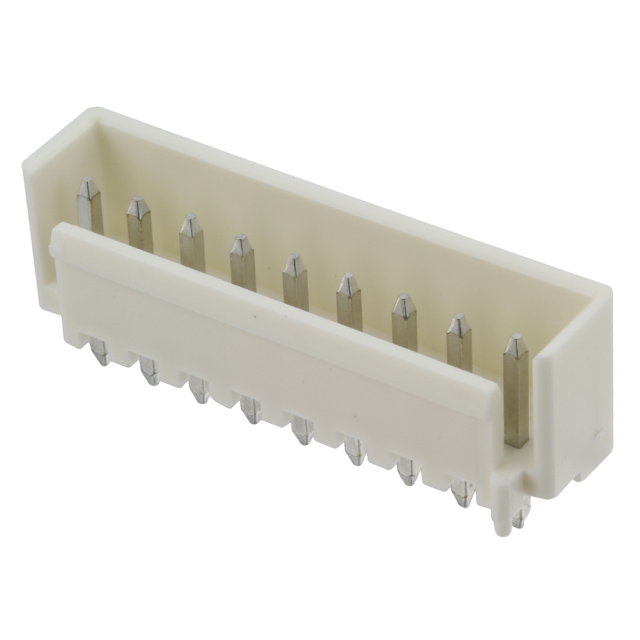

 TE Connectivity Raychem Cable Protection | Solder | Board to Cable/Wire | Through Hole | 1 çm | 39.4 çin | 250 VAC | 1 µm | 39.4 µin | Brass | Board Guide Glow Wire Compliant | Male Pin | 14.4 mm | 0.567 " | 0.306 in | 7.77 mm | Glass Filled Nylon Polyamide (PA) | Tin | 1 | Square | 3.6 mm | 0.142 in | Locking Ramp | 9 | Shrouded - 4 Wall | 0.156 in | 3.96 mm | -30 ░C | 105 ░C | UL94 V-2 | Varies by Wire Gauge | 0.472 in | 12 mm | All | Header | General Purpose Industrial Lighting |
 TE Connectivity Raychem Cable Protection | Solder | Board to Cable/Wire | Through Hole | 1 çm | 39.4 çin | 250 VAC | 1 µm | 39.4 µin | Brass | Board Guide Glow Wire Compliant | Male Pin | 14.4 mm | 0.567 " | 0.306 in | 7.77 mm | Glass Filled Nylon Polyamide (PA) | Tin | 1 | Square | 3.6 mm | 0.142 in | Locking Ramp | Shrouded - 4 Wall | 0.156 in | 3.96 mm | -30 ░C | 105 ░C | UL94 V-2 | Varies by Wire Gauge | 0.472 in | 12 mm | All | Header | General Purpose Industrial Lighting | |

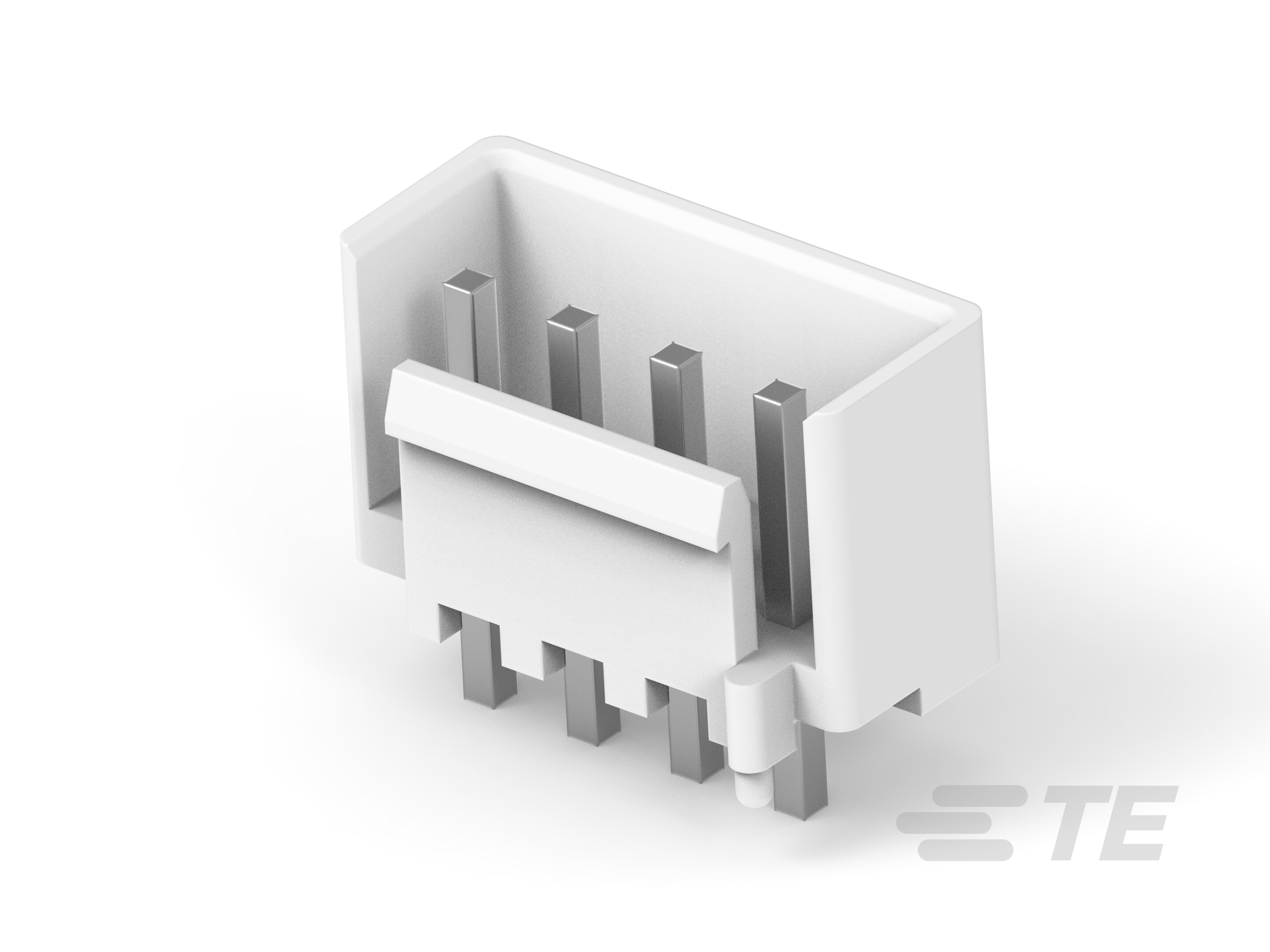

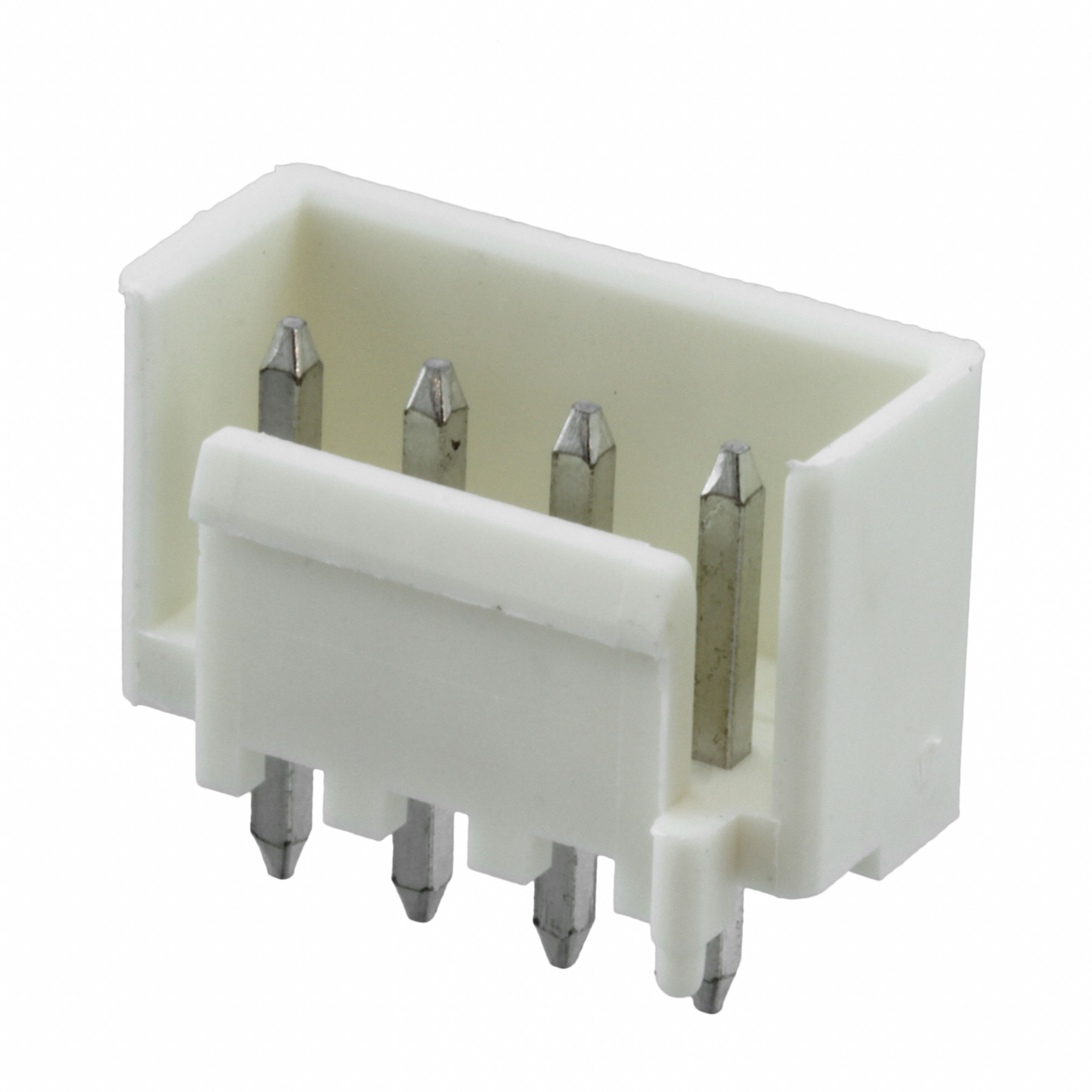

 TE Connectivity Raychem Cable Protection | Solder | Board to Cable/Wire | Through Hole | 1 çm | 39.4 çin | 250 VAC | 1 µm | 39.4 µin | Brass | Board Guide Glow Wire Compliant | Male Pin | 14.4 mm | 0.567 " | 0.306 in | 7.77 mm | Glass Filled Nylon Polyamide (PA) | Tin | 1 | Square | 3.6 mm | 0.142 in | Locking Ramp | 4 | Shrouded - 4 Wall | 0.156 in | 3.96 mm | -30 ░C | 105 ░C | UL94 V-2 | Varies by Wire Gauge | 0.472 in | 12 mm | All | Header | General Purpose Industrial Lighting |

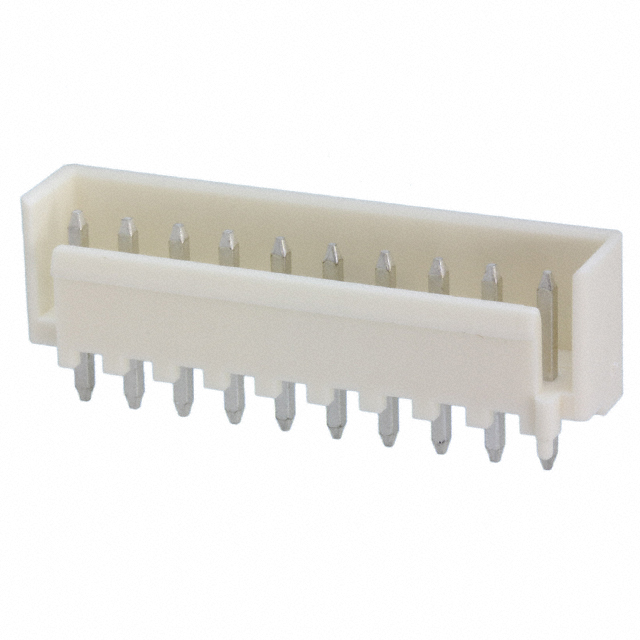

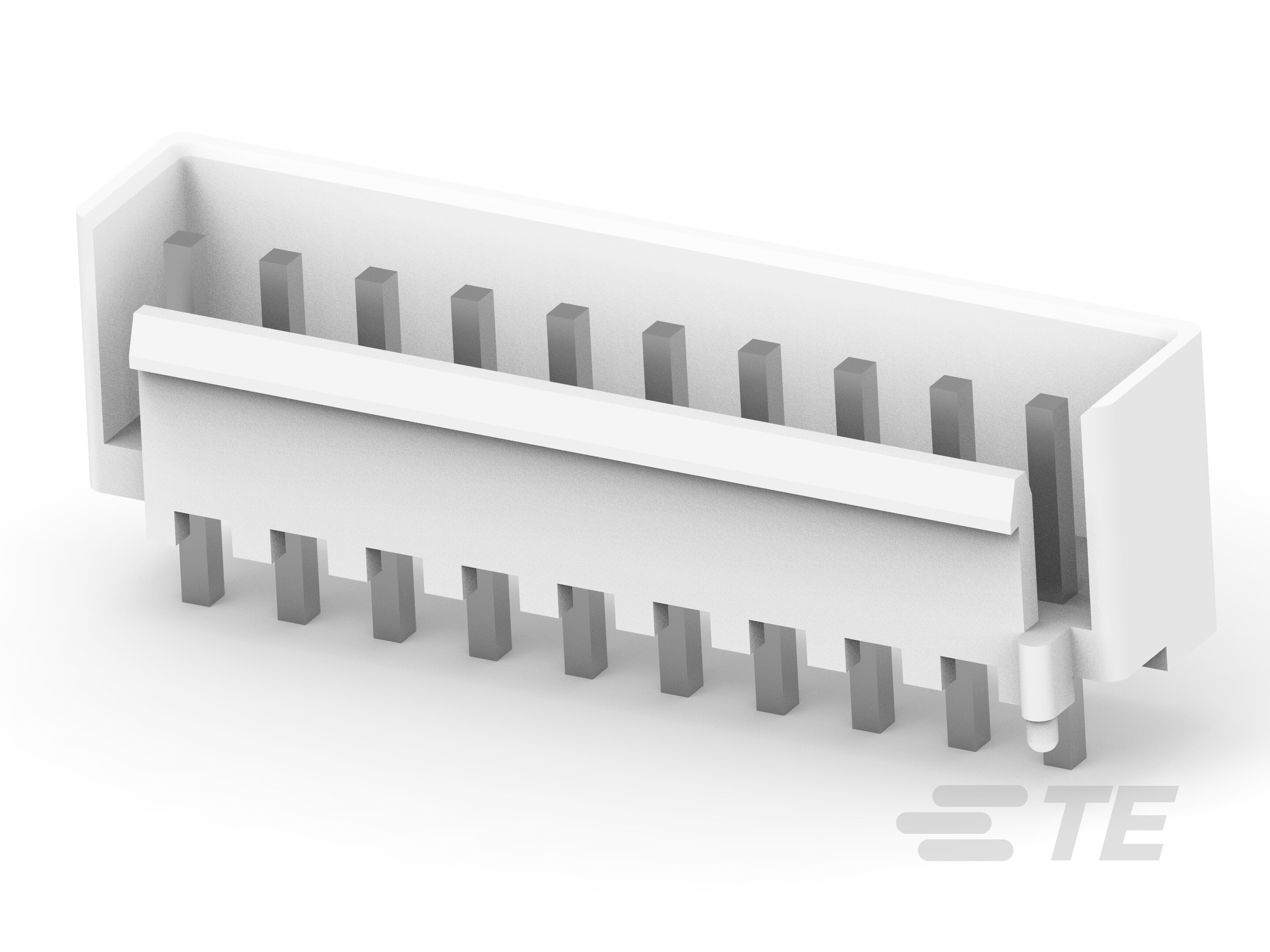

 TE Connectivity Raychem Cable Protection | Solder | Board to Cable/Wire | Through Hole | 1 çm | 39.4 çin | 250 VAC | 1 µm | 39.4 µin | Brass | Board Guide Glow Wire Compliant | Male Pin | 14.4 mm | 0.567 " | 0.306 in | 7.77 mm | Glass Filled Nylon Polyamide (PA) | Tin | 1 | Square | 3.6 mm | 0.142 in | Locking Ramp | 10 | Shrouded - 4 Wall | 0.156 in | 3.96 mm | -30 ░C | 105 ░C | UL94 V-2 | Varies by Wire Gauge | 0.472 in | 12 mm | All | Header | General Purpose Industrial Lighting |

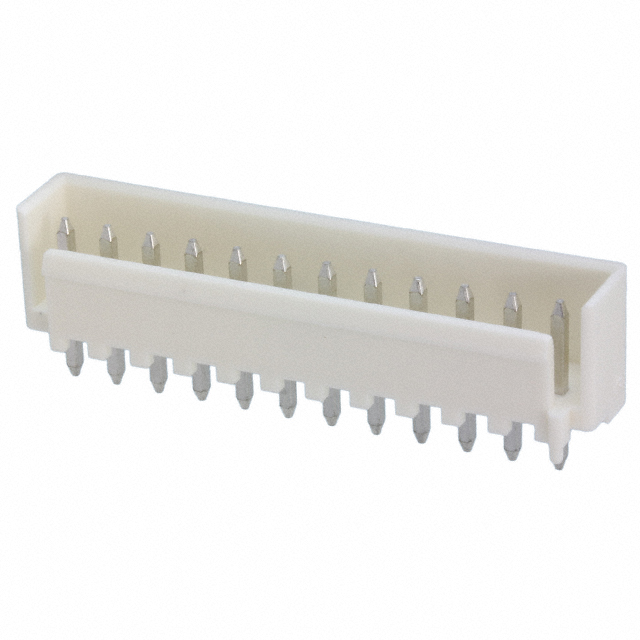

 TE Connectivity Raychem Cable Protection | Solder | Board to Cable/Wire | Through Hole | 1 çm | 39.4 çin | 250 VAC | 1 µm | 39.4 µin | Brass | Board Guide Glow Wire Compliant | Male Pin | 14.4 mm | 0.567 " | 0.306 in | 7.77 mm | Glass Filled Nylon Polyamide (PA) | Tin | 1 | Square | 3.6 mm | 0.142 in | Locking Ramp | 12 | Shrouded - 4 Wall | 0.156 in | 3.96 mm | -30 ░C | 105 ░C | UL94 V-2 | Varies by Wire Gauge | 0.472 in | 12 mm | All | Header | General Purpose Industrial Lighting |
