105431 Series

Nano-Fit Vertical Header, Surface Mount, 2.50mm Pitch, Single Row, 6 Circuits, 0.76µm Tin (Sn) Plating, Natural, Glow-Wire Capable

Manufacturer: Molex

Catalog

Nano-Fit Vertical Header, Surface Mount, 2.50mm Pitch, Single Row, 6 Circuits, 0.76µm Tin (Sn) Plating, Natural, Glow-Wire Capable

Part	Connector Type	Termination	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Insulation Height [z]	Insulation Height [z]	Mounting Type	Number of Positions Loaded	Style	Shrouding	Current Rating (Amps)	Number of Rows	Contact Material	Insulation Color	Fastening Type	Features	Contact Type	Voltage Rating	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Applications	Number of Positions	Contact Finish - Mating

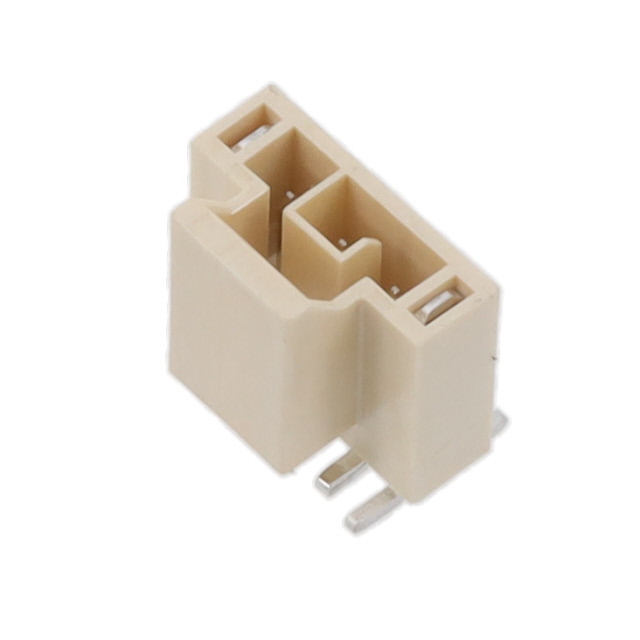

Molex 1054312103	Header	Solder	Tin	30 Áin	0.76 Ám	2.5 mm	0.098 in	9.7 mm	0.382 in	Surface Mount	All	Board to Cable/Wire	Shrouded - 4 Wall	4 A	1	Brass	Natural	Latch Holder	Pick and Place Solder Retention	Male Pin	250 VAC	Liquid Crystal Polymer (LCP)	-40 °C	105 ░C	UL94 V-0	30 µin	0.76 µm	Square	Automotive General Purpose Industrial Medical Military Telecommunications

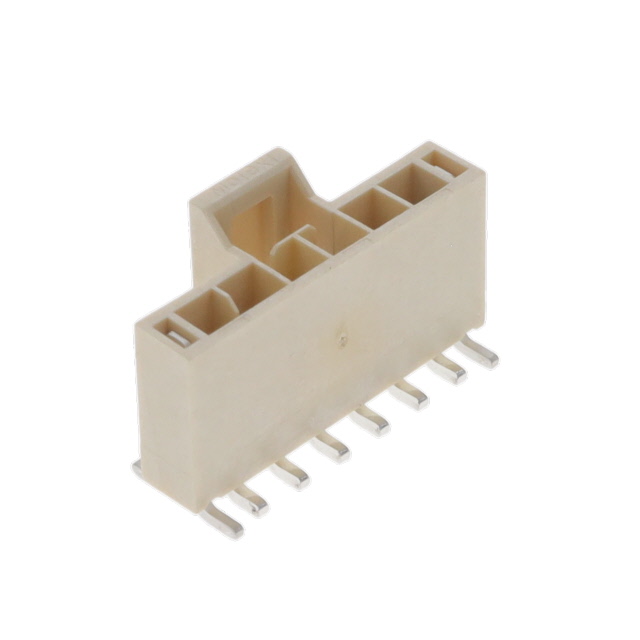

Molex 1054312106	Header	Solder	Tin	30 Áin	0.76 Ám	2.5 mm	0.098 in	9.7 mm	0.382 in	Surface Mount	All	Board to Cable/Wire	Shrouded - 4 Wall	4 A	1	Brass	Natural	Latch Holder	Pick and Place Solder Retention	Male Pin	250 VAC	Liquid Crystal Polymer (LCP)	-40 °C	105 ░C	UL94 V-0	30 µin	0.76 µm	Square	Automotive General Purpose Industrial Medical Military Telecommunications	6

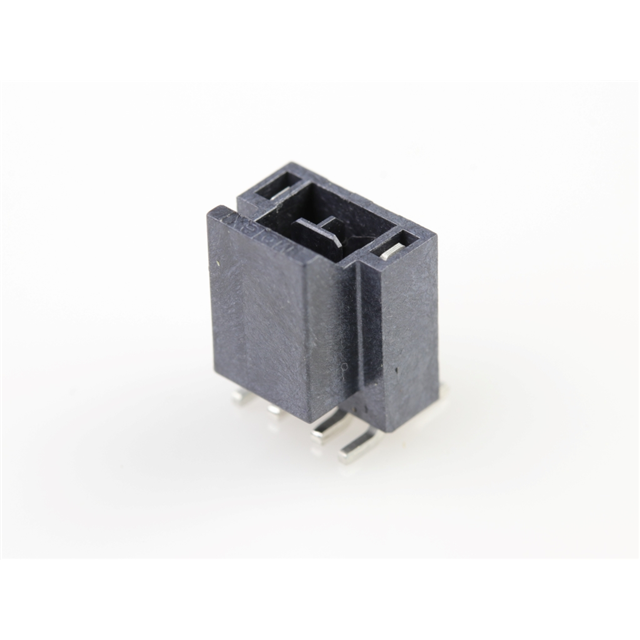

Molex 1054311102	Header	Solder	Tin	30 Áin	0.76 Ám	2.5 mm	0.098 in	9.7 mm	0.382 in	Surface Mount	All	Board to Cable/Wire	Shrouded - 4 Wall	4 A	1	Brass	Black	Latch Holder	Pick and Place Solder Retention	Male Pin	250 VAC	Liquid Crystal Polymer (LCP)	-40 °C	105 ░C	UL94 V-0	30 µin	0.76 µm	Square	Automotive General Purpose Industrial Medical Military Telecommunications	2

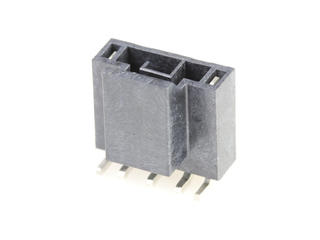

Molex 1054311203	Header	Solder	Tin	15 µin	0.38 µm	2.5 mm	0.098 in	9.7 mm	0.382 in	Surface Mount	All	Board to Cable/Wire	Shrouded - 4 Wall	4 A	1	Brass	Black	Latch Holder	Pick and Place Solder Retention	Male Pin	250 VAC	Liquid Crystal Polymer (LCP)	-40 °C	115 °C	UL94 V-0	30 µin	0.76 µm	Square	Automotive General Purpose Industrial Medical Military Telecommunications		Gold

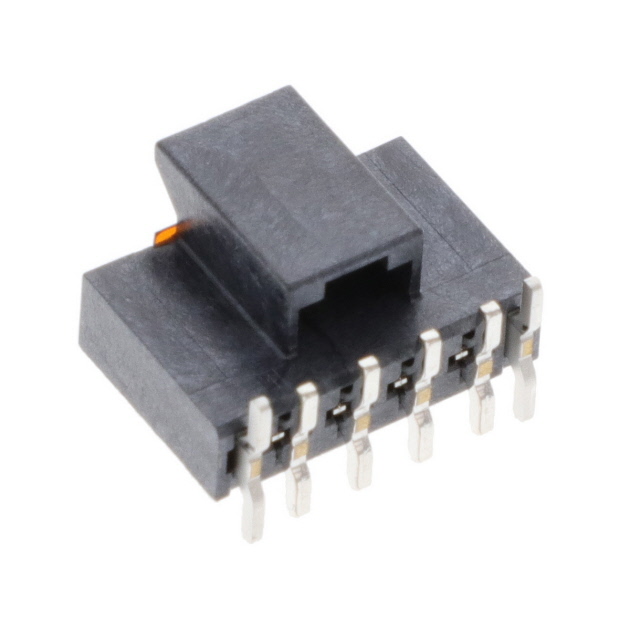

Molex 1054311104	Header	Solder	Tin	30 Áin	0.76 Ám	2.5 mm	0.098 in	9.7 mm	0.382 in	Surface Mount	All	Board to Cable/Wire	Shrouded - 4 Wall	4 A	1	Brass	Black	Latch Holder	Pick and Place Solder Retention	Male Pin	250 VAC	Liquid Crystal Polymer (LCP)	-40 °C	105 ░C	UL94 V-0	30 µin	0.76 µm	Square	Automotive General Purpose Industrial Medical Military Telecommunications	4

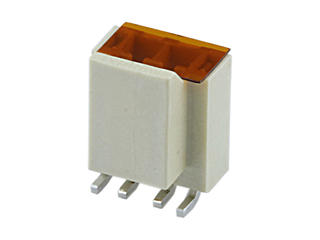

Molex 1054312102	Header	Solder	Tin	30 Áin	0.76 Ám	2.5 mm	0.098 in	9.7 mm	0.382 in	Surface Mount	All	Board to Cable/Wire	Shrouded - 4 Wall	4 A	1	Brass	Natural	Latch Holder	Pick and Place Solder Retention	Male Pin	250 VAC	Liquid Crystal Polymer (LCP)	-40 °C	105 ░C	UL94 V-0	30 µin	0.76 µm	Square	Automotive General Purpose Industrial Medical Military Telecommunications	2

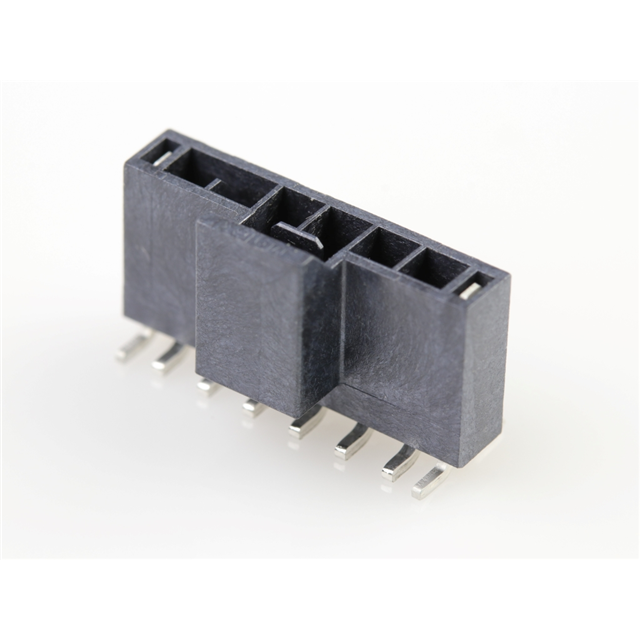

Molex 1054311106	Header	Solder	Tin	30 Áin	0.76 Ám	2.5 mm	0.098 in	9.7 mm	0.382 in	Surface Mount	All	Board to Cable/Wire	Shrouded - 4 Wall	4 A	1	Brass	Black	Latch Holder	Pick and Place Solder Retention	Male Pin	250 VAC	Liquid Crystal Polymer (LCP)	-40 °C	105 ░C	UL94 V-0	30 µin	0.76 µm	Square	Automotive General Purpose Industrial Medical Military Telecommunications	6
Molex 1054311202	Header	Solder	Tin	15 µin	0.38 µm	2.5 mm	0.098 in	9.7 mm	0.382 in	Surface Mount	All	Board to Cable/Wire	Shrouded - 4 Wall	4 A	1	Brass	Black	Latch Holder	Pick and Place Solder Retention	Male Pin	250 VAC	Liquid Crystal Polymer (LCP)	-40 °C	115 °C	UL94 V-0	30 µin	0.76 µm	Square	Automotive General Purpose Industrial Medical Military Telecommunications	2	Gold

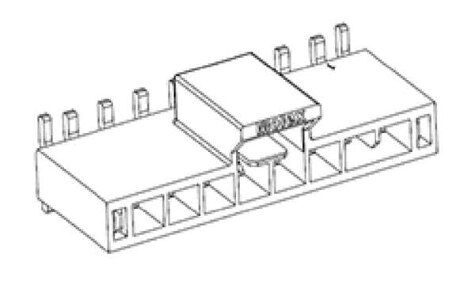

Molex 1054311105	Header	Solder	Tin	30 Áin	0.76 Ám	2.5 mm	0.098 in	9.7 mm	0.382 in	Surface Mount	All	Board to Cable/Wire	Shrouded - 4 Wall	4 A	1	Brass	Black	Latch Holder	Pick and Place Solder Retention	Male Pin	250 VAC	Liquid Crystal Polymer (LCP)	-40 °C	105 ░C	UL94 V-0	30 µin	0.76 µm	Square	Automotive General Purpose Industrial Medical Military Telecommunications
